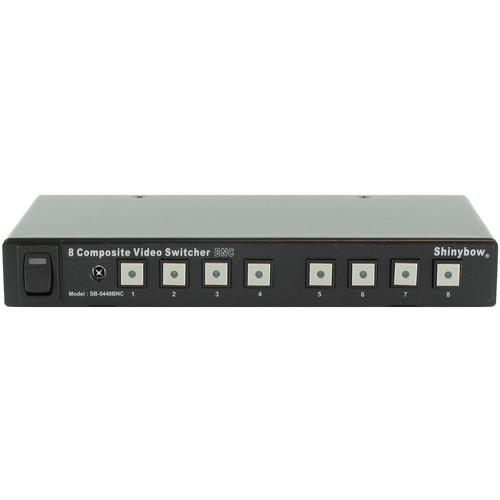

User Manual for Shinybow SB-5440BNC 8 x 1 Composite Video Switcher Click to enlarge the picture
Contents of the user manual for the Shinybow SB-5440BNC 8 x 1 Composite
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
 |
User manual for the Shinybow SB-5440BNC 8 x 1 Composite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|

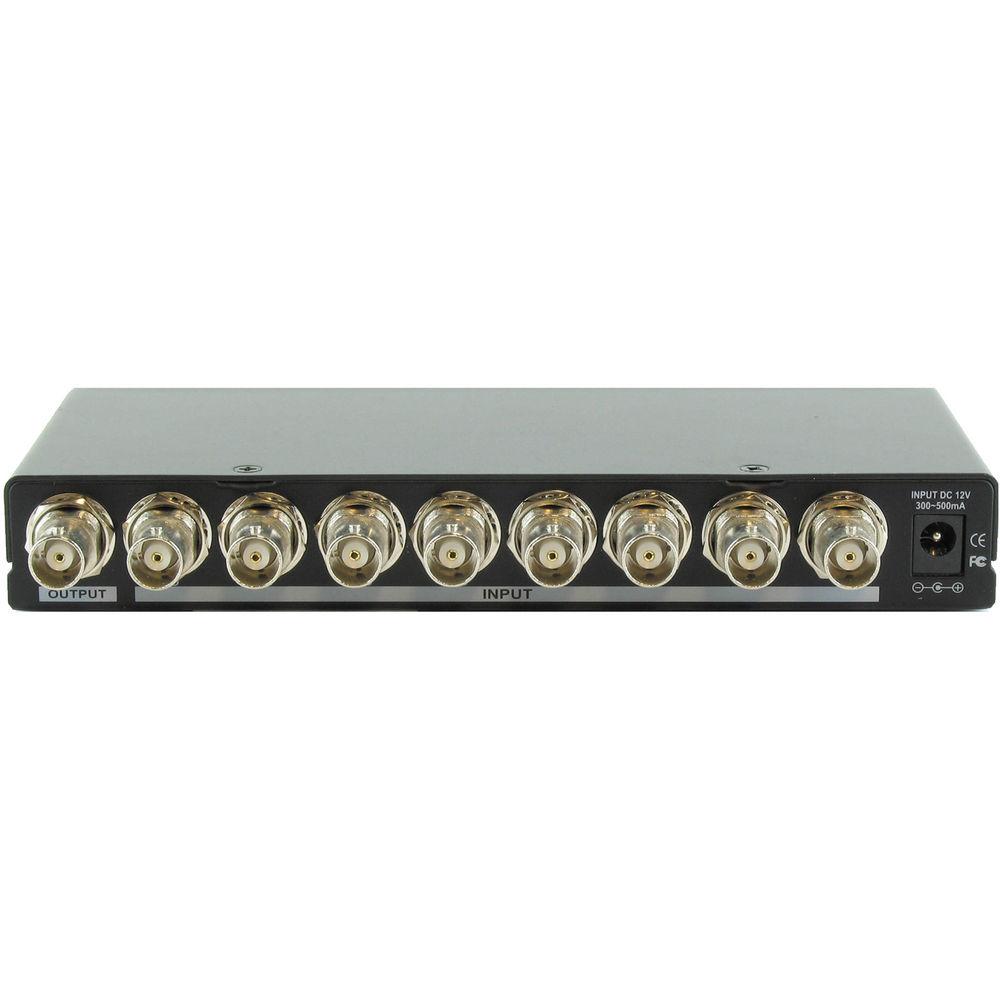

Product description The Shinybow SB-5440BNC 8 x 1 Composite Video (BNC) Switcher is a compact composite video/BNC distribution amplifier which supports 8 inputs and 1 output. It is ideal for distributing video signals from security cameras, DVDs, video game consoles, satellite receivers, cable/satellite boxes, and other such devices, to up to 8 screens. The Shinybow composite splitter is designed to support high-resolution videos for up to 200' (60.96 m) output cable runs. - Supports 8 inputs to 1 output BNC composite video switcher
- Control by front pushbuttons with LCD readout
- Supports lower power consumption at full load under 500 mA
- Ideal for home theater integration
- Easy to install and simple to operate

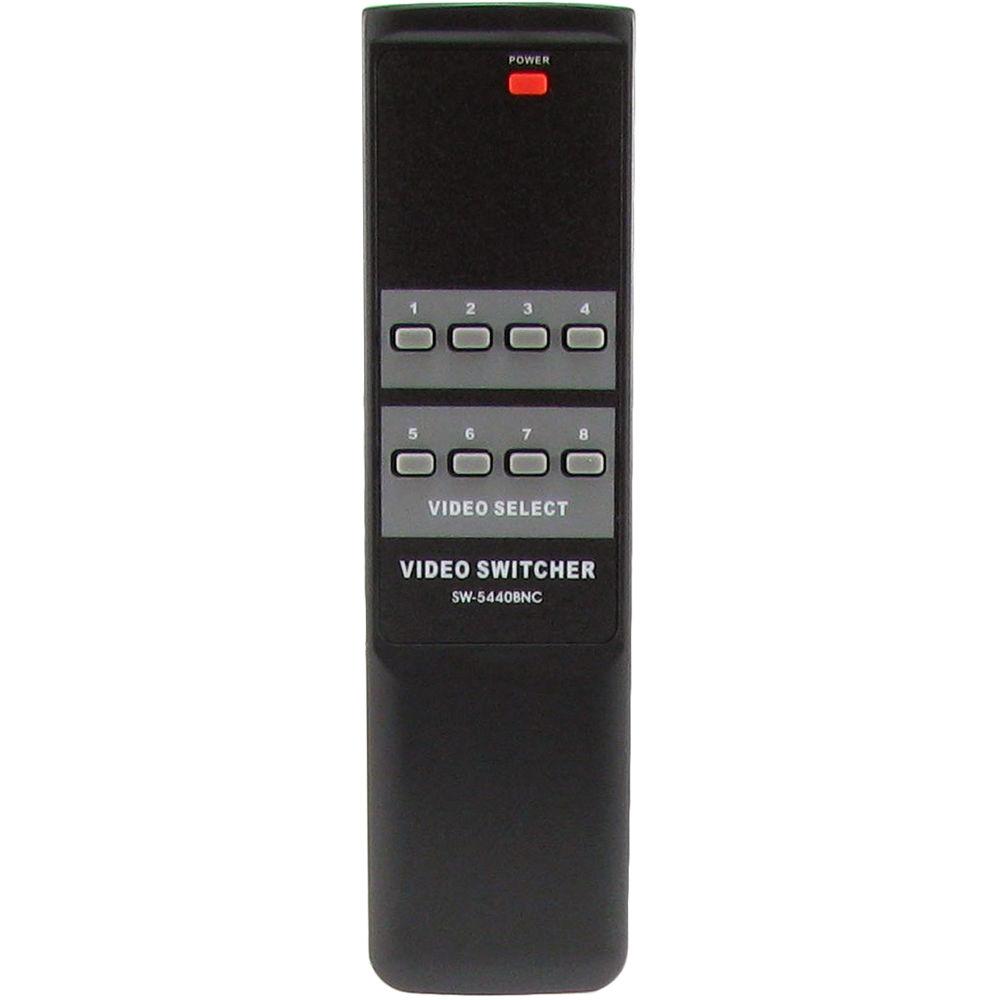

In the Box Shinybow SB-5440BNC 8 x 1 Composite Video (BNC) Switcher IR Remote Control AC/DC Adapter (12 VDC, 300 mA) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5440BNC 8 x 1 Composite Video Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5440BNC Specs | Input | 8x BNC female port | | Output | 1x BNC female port | | Function | Menu & IR Remote controller | | Video Signal | Composite Video (BNC connectors) | | IR Frequency | 38 KHz | | Distortion | Video Distortion: <0 .5 dB | | Channel Isolation | >60 dB, 6.5 dB Gain between any input and output | | Signal to Noise Ratio | >60 dB | | Video Crosstalk | >-55 dB at 5 MHz | | In/Out Connections | BNC female connectors | | Power Consumption | 200 mA maximum | | Power Source | 12 VDC @300 to 1000 mA | | Scan Rates Accepted | 50 or 60 Hz | | Enclosure Type | Metal: Wall mountable ear panels attached | | Regulatory Approvals | CE, FCC, and RoHS (2002/95/EC) | | Dimensions | 6.9 x 3.2 x 1.0" (17.5 x 8.1 x 2.5 cm) | | Weight | 1.10 lb (0.49 kg) | | | | Package Weight | 1.92 lb | | Box Dimensions (LxWxH) | 9.7 x 7.25 x 1.5" |
