User Manual for Shinybow SB-5440RCA 8 x 1 Composite Video Selector Switcher with IR Remote Click to enlarge the picture
Contents of the user manual for the Shinybow SB-5440RCA 8 x 1 Composite
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
 |
User manual for the Shinybow SB-5440RCA 8 x 1 Composite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|

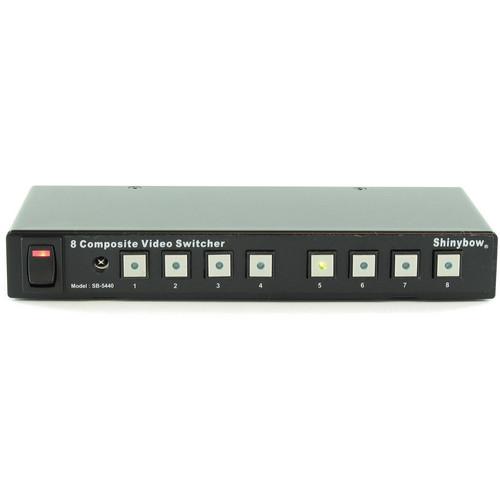

Product description The Shinybow SB-5440RCA 8 x 1 Composite Video Selector Switcher with IR Remote allows you to switch between 8 composite video inputs and 1 monitor with compatible output. This video switcher can be operated via an IR remote control (included) or manually with push buttons. This composite video (RCA) switch works with VCRs, camcorders, video game consoles, video CDs, DVDs, satellite receivers, and CAT5 set top boxes with composite video connectors. - Supports 8 inputs to 1 output
- Front panel push button control with LCD readout
- Supports lower power consumption at full load (under 500 mA)
- Support for TV signals up to 1,000' (304.8 m) away
- Easy to install and simple to operate
In the Box Shinybow SB-5440RCA 8 x 1 Composite Video Selector Switcher with IR Remote IR Remote Control Users Guide AC/DC Adapter (12 VDC, 300 mA) 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5440RCA 8 x 1 Composite Video Selector Switcher with IR Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

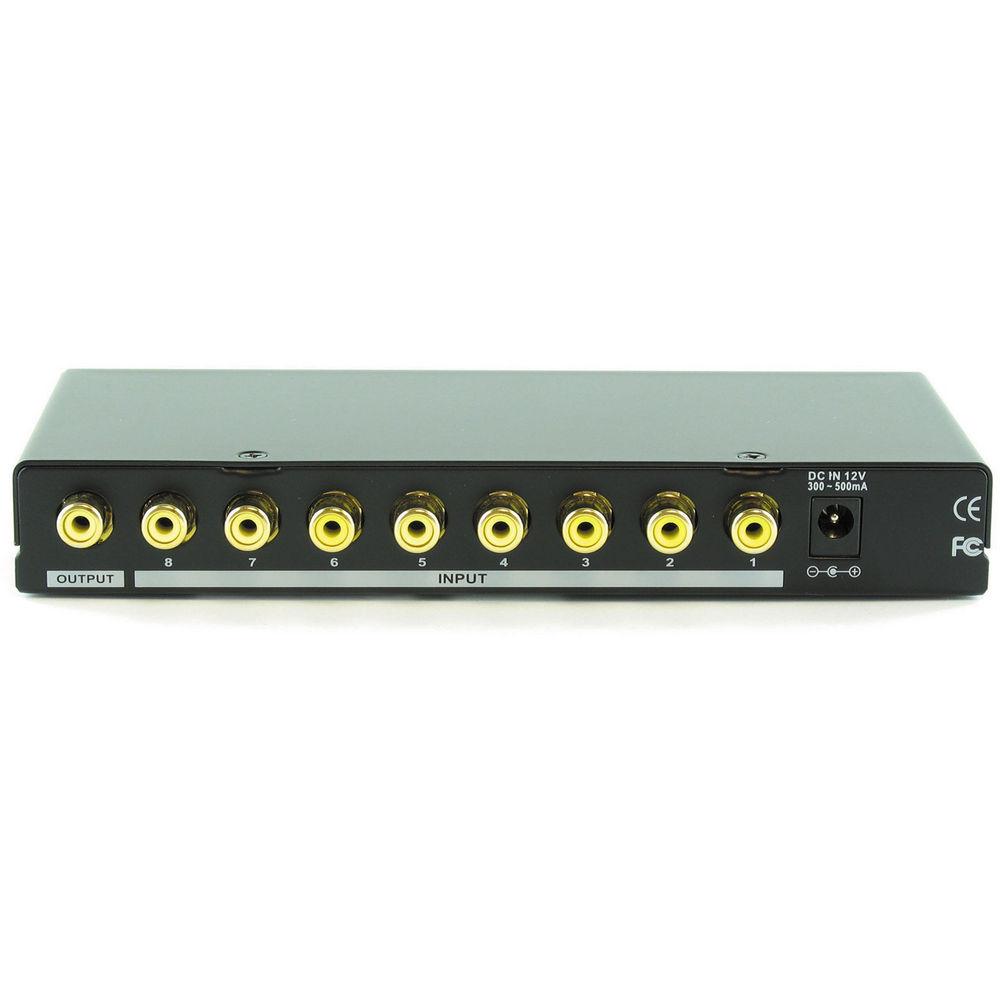

Technical parametersShinybow SB-5440RCA Specs | Video Signal | Composite Video (RCA connectors) | | Input | 8x composite video | | Output | 1x composite video | | Functions | Select: Manual & IR remote controller | | IR Frequency | 38 kHz | | Video Bandwidth | >20 MHz (±0.5 dB) | | Video Distortion | <0.5 dB | | Channel Isolation | >60 dB | | S/N Ratio | >60 dB | | Video Crosstalk | >-60 dB | | Terminal | In/Out: Color-coded RCA female connectors | | Enclosure Type | Metal | | Power Consumption | 200 mA maximum | | Power Source | 12 VDC @ 300 to 1000 mA | | Regulatory Approvals | CE, FCC, and RoHS (2002/95/EC) | | Dimensions | L x W x H: 6.9 x 3.2 x 1" (175 x 80 x 26 mm) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 9.4 x 7.3 x 1.4" |
