User Manual for Shinybow SB-5440SV 8 x 1 S-Video Selector Switcher Click to enlarge the picture
Contents of the user manual for the Shinybow SB-5440SV 8 x 1 S-Video
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
 |
User manual for the Shinybow SB-5440SV 8 x 1 S-Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|

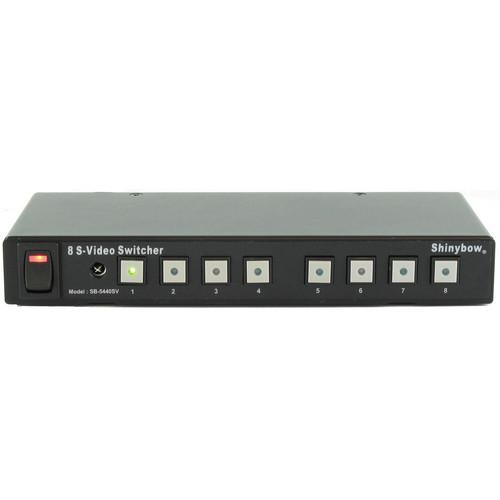

Product description The Shinybow SB-5440SV 8 x 1 S-Video Selector Switcher is a high performance switcher with IR remote control. You can select either one of the 8 desired source to be routed to a connected TV, plasma screen, video projector, etc. - Supports 8 inputs to 1 output S-Video switcher
- Control by front pushbuttons with LCD readout
- Supports lower power consumption at full load under 500 mA
- Ideal for home theater integration
- Easy to install and simple to operate
In the Box Shinybow SB-5440SV 8 x 1 S-Video Selector Switcher IR Remote Control AC/DC Adapter (12 VDC, 300 mA) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5440SV 8 x 1 S-Video Selector Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

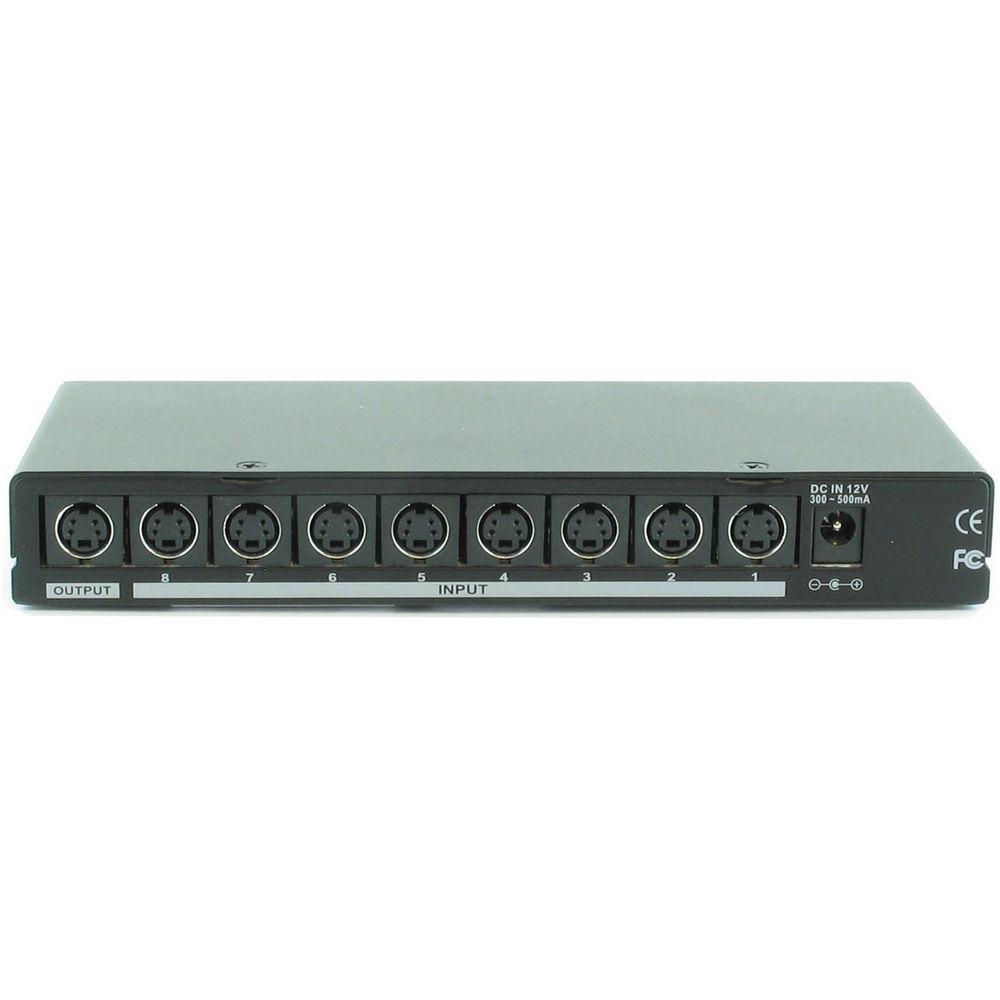

Technical parametersShinybow SB-5440SV Specs | Input | 8x S-Video female port | | Output | 1x S-Video female port | | Function | Menu & IR Remote controller | | Video Signal | S-Video (S-Video 4-pin connectors) | | IR Frequency | 38 KHz | | Distortion | Audio Distortion: <0 .5 dB | | Channel Isolation | >60 dB, 6.5 dB Gain between any input and output | | Signal to Noise Ratio | >60 dB | | Video Crosstalk | >-55 dB at 5 MHz | | In/Out Connections | Color-coded RCA female connectors | | Power Consumption | 100 mA maximum | | Power Source | 12 VDC @300 to 1000 mA | | Scan Rates Accepted | 50 or 60 Hz | | Enclosure Type | Metal: Wall mountable ear panels attached | | Regulatory Approvals | CE, FCC, and RoHS (2002/95/EC) | | Dimensions | 6.9 x 3.2 x 1.0" (17.5 x 8.1 x 2.5 cm) | | Weight | 1.10 lb (0.49 kg) | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 11.0 x 3.0 x 3.0" |
