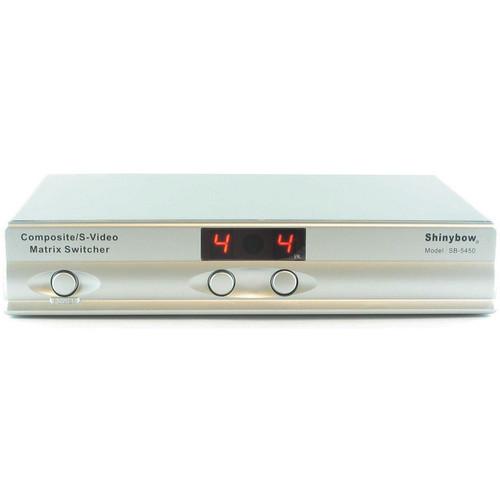

User Manual for Shinybow SB-5450 4 x 2 Composite S-Video Audio Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Shinybow SB-5450 4 x 2 Composite
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
|
User manual for the Shinybow SB-5450 4 x 2 Composite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The SB-5450 4 x 2 Composite/S-Video/Audio Matrix Switcher with IR Remote Control from Shinybow is a 4-input to 2-output S-Video(Y/C), Composite Video and Stereo Audio (AR/AL) matrix switching unit with a video bandwidth of 100 MHz.With 4 individual inputs and 2 outputs, this matrix router switcher enables you to route any input to any output along with eliminating the need to move around S-Video, Video and Stereo Audio input and output cables. This router switcher is suitable for HD (High-Definition) TV with resolutions of 480p, 720p, 1080i, and 1080p.The unit’s control is provided via the front selection pushbuttons with LED readout or via the IR remote controller. It can also be rack mounted using 19” rack ears (part number #1U-300L, sold separately). Note: The SB-5450 is not a signal converter. If the input signal is Composite, the output is Composite. If the input is S-video, the output is S-Video. You cannot input Composite Video and expect that signal on the S-Video output. - Supports 4 inputs to 2 outputs
- Supports HDTV resolutions of 480i, 480p, 576p, 720p, 1080i, and 1080p
- Video bandwidth of 100 MHz (-3 dB), 200m Vpp
- Scan rates accepted for 50 Hz or 60 Hz
- Uses an IR Remote Control (frequency 38 kHz)
- Switches S-Video (Y/C), Composite and Stereo Audio (AR/AL) signals
- Suitable for full HD high-resolution video player devices and HDTV, LCD TV, Plasma TV, and HD monitor displays
- Features a direct selection and confirm via front pushbuttons with LED readout
- Lower power consumption with full load under 250mA
- Power supply with a universal type 100 to 230VAC switch
UPC: 878248000676 In the Box Shinybow SB-5450 4 x 2 Composite/S-Video/Audio Matrix Switcher IR Remote Control 3-way RCA-to-RCA AV Cable (Set Colored Red, White, and Yellow) S-Video Cable (Mini-DIN 4-Pin Plug) AC / DC Adapter (12VDC, 500mA) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5450 4 x 2 Composite S-Video Audio Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5450 Specs | Switcher | Type: 4 inputs to 2 outputs Matrix Router Switcher | | Inputs | Video: 4 x Composite Video, 75 Ω on RCA connector
Audio: 4 x Stereo R/L, 40 kΩ on RCA connector | | Outputs | Video: 2 x Composite Video, 75 Ω on RCA connector
Audio: 2 x Stereo R/L, 400 Ω on RCA connector | | Bandwidth | Video: 100 MHz, (-3 dB) 2 Vpp, S-Video(Y/C) and Composite Video
Audio: 30 MHz, (-3 dB) (Audio-Right = 30 MHz, Audio-Left = 30 MHz) | | Input Impedance | Audio: 10 kΩ | | Channel Isolation | >50 dB | | Signal to Noise Ratio | >50 dB | | Frequency Response | Audio: 20 Hz to 20 kHz | | All Hostile Crosstalk | -56 dB @ 5 MHz, -45 dB @ 50 MHz | | Scan Rates Accepted | 50 Hz or 60 Hz | | Frequency | Infrared: 38 kHz | | Controls | Direct switch channel via front panel selection buttons with LED readout or via the IR Remote Control | | Voltage Input | 12 VDC @ 0.42 A | | Safety Approvals | CE, FCC, RoHS (2002/95/EC) | | Dimensions (W x D x H) | 9.40 x 5.60 x 1.80" (238.76 x 142.24 x 45.72 mm) | | Weight | Unit Only: Approximately 31.2 oz (885.0 g) (with metal case) | | | | Package Weight | 2.34 lb | | Box Dimensions (LxWxH) | 11.45 x 10.15 x 2.95" |
