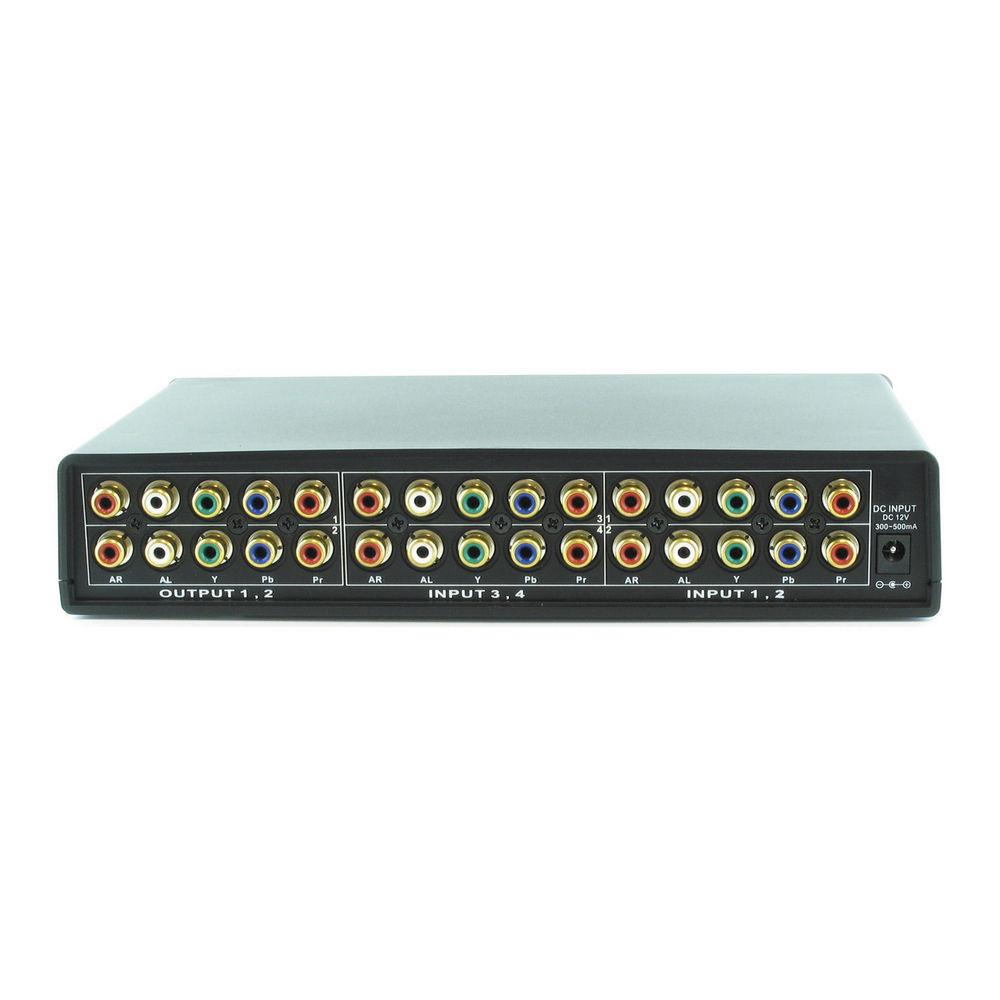

User Manual for Shinybow SB-5460 4 x 2 Component Video Audio Routing Switcher Click to enlarge the picture
Contents of the user manual for the Shinybow SB-5460 4 x 2 Component
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
 |
User manual for the Shinybow SB-5460 4 x 2 Component contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The SB-5460 4 x 2 Component Video/Audio Routing Switcher with IR Remote Control from Shinybow is a 4-input to 2-output Component Video (YPBPR), and Stereo Audio (AR/AL) switching unit with a video bandwidth of 250 MHz.With 4 inputs and 2 outputs, this router switcher enables you to route any input to any output along with eliminating the need to move around Component Video and Stereo Audio input and output cables. This router switcher is suitable for HD (High-Definition) LCD HDTV resolutions of 480p, 720p, 1080i, and 1080p or Plasma display monitor applications.The unit’s control is provided via the front selection pushbuttons with LED readout or via the IR remote controller. It can also be rack mounted using 19” rack ears (part number #1U-300L, sold separately). - Supports 4 inputs to 2 outputs
- Supports HDTV resolutions for 480i, 480p, 576p, 720p, 1080i, and 1080p
- Video bandwidth of 250 MHz (-3 dB), 200mVpp
- Audio bandwidth of 60 MHz for compatible Composite Video

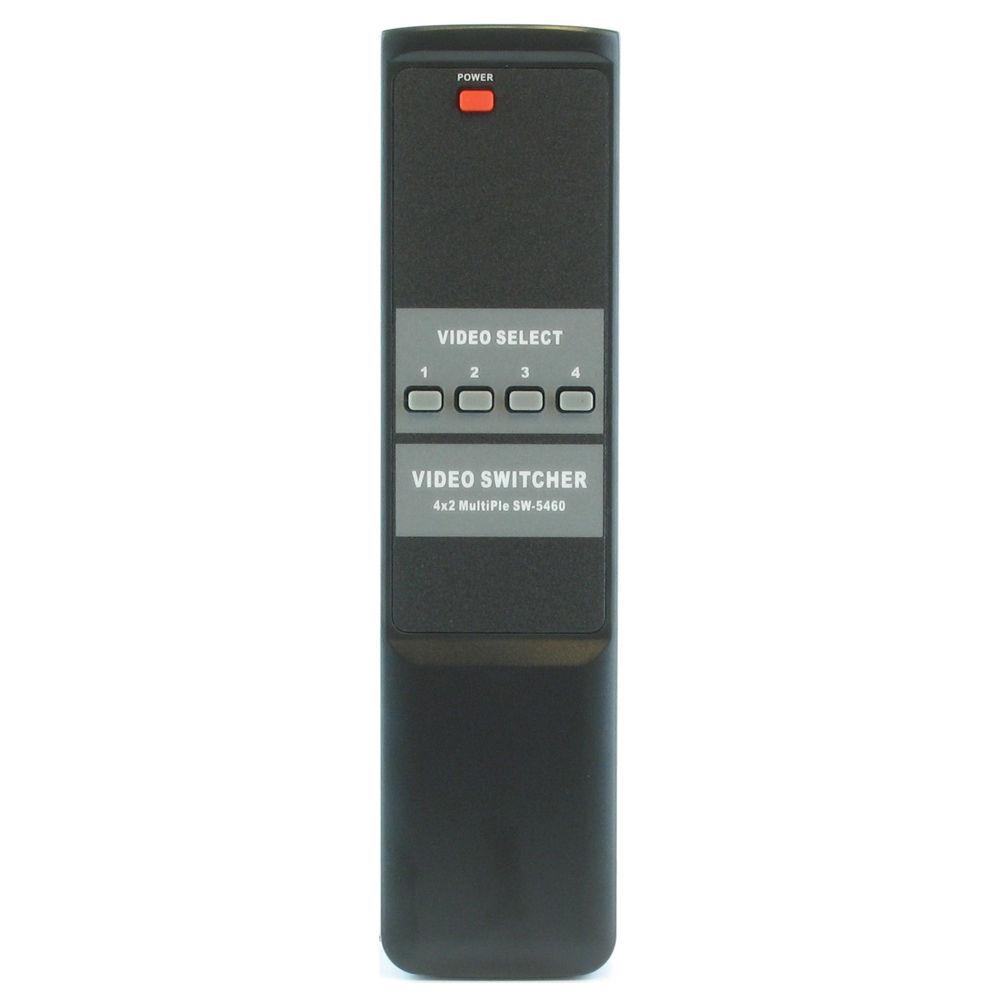

- Uses an IR Remote Control (frequency 38 kHz)
- Switches Component Video YPBPR and Stereo Audio (AR/AL) signals
- Suitable for full HD high resolution Video player device and LCD / Plasma monitor displays

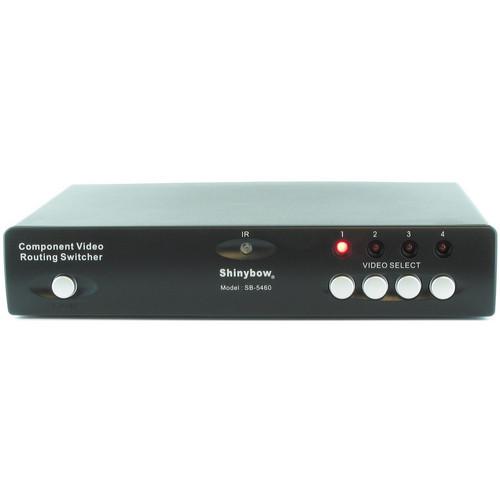

- Features a direct selection and confirm via front pushbuttons with LED readout
- Lower power consumption with full load under 250mA
- Power supply with a universal type 100 to 230VAC switch
In the Box Shinybow SB-5460 4 x 2 Component Video/Audio Routing Switcher IR Remote Control AC / DC Adapter (12VDC, @ 300 to 500mA) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5460 4 x 2 Component Video Audio Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5460 Specs | Switcher | Type: 4 inputs to 2 outputs Component-Audio Router Switcher | | Inputs | Video:
4 x Component (YPbPr): 1 Vpp, 75 Ω, RCA socket
Audio:
4 x Stereo Audio: L+R 5 Vpp, 47 kΩ, RCA socket | | Outputs | Video:
2 x Component (YPbPr): 1 Vpp, 75 Ω, RCA socket
Audio:
Stereo Audio: L+R 5 Vpp, 47 kΩ, RCA socket | | Bandwidth | Video: 250 MHz, (-3 dB) 200 mVpp, 280 MHz, (-3 dB) 2 Vpp, R = 250 MHz, G = 250 MHz, B = 250 MHz, Audio = 60 MHz
Audio: 60 MHz, (-3 dB) (Audio-Right = 60 MHz, Audio-Left = 60 MHz) | | Distortion | Video: <1.2 dB
Audio: <0.6 dB | | Channel Isolation | >50 dB | | Signal to Noise Ratio | >50 dB | | Frequency Response | Audio: 20 Hz to 20 kHz | | All Hostile Crosstalk | -84 dB @ 5 MHz, -54 dB @ 50 MHz
Channel Crosstalk: -56 dB @ 100 MHz | | Slew Rate | 1,000 V/us, G = +1.2 V, Step | | Controls | IR Remote Controller (38 kHz), front panel selection buttons with LED readout | | Voltage Input | 12 VDC @ 0.66 A | | Safety Approvals | CE, FCC, RoHS (2002/95/EC) | | Dimensions (W x D x H) | 9.40 x 5.60 x 1.80" (238.76 x 142.24 x 45.72 mm) | | Weight | Unit Only: Approximately 37 oz (1050 g) | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 11.3 x 10.0 x 3.0" |
