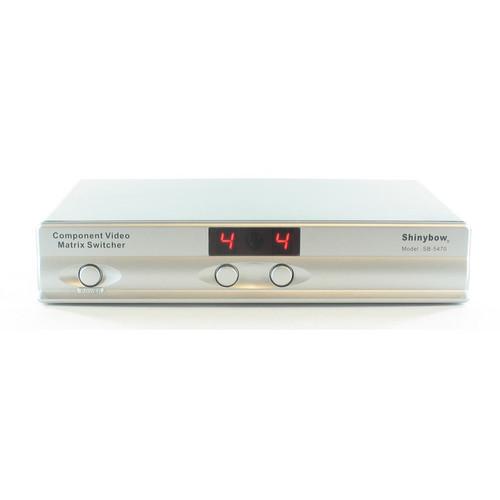

Product description The Shinybow SB-5470 4 x 2 HDTV Component Video & Audio Matrix Routing Switcher is designed to switch between 4 component (YPbPr) inputs and left and right analog audio. It is a rugged 4 x 2 switcher offering seamless switching and crystal-clear distribution of all HDTV video formats as well as audio signals. This switcher accepts up to 4 different input sources and you can seamlessly select any of these inputs to drive 2 outputs, without any signal degradation. It is universally compatible with all HDTV formats including 480i, 576i, 480p, 576p, 1080i, 720p, and 1080p.

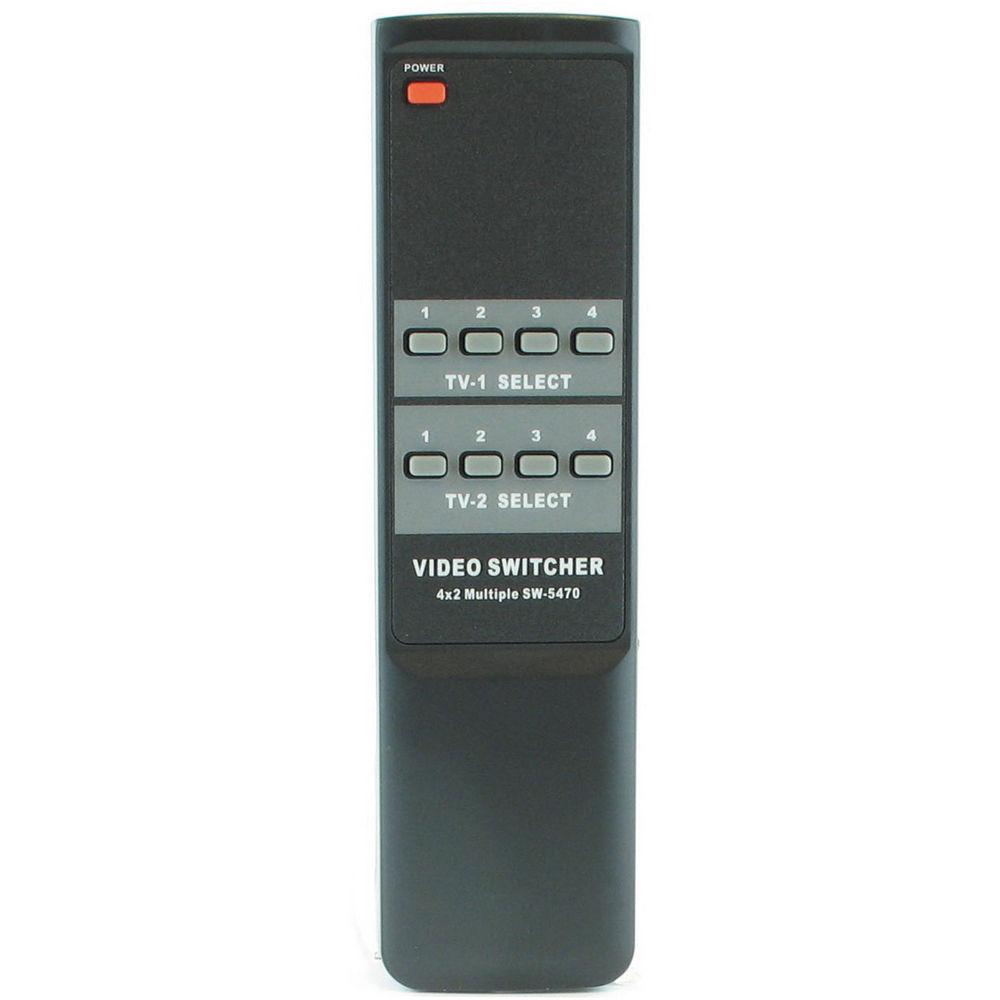

This matrix routing switcher is a versatile and compact state-of-the-art switcher of choice when you need high-quality and reliable switching. It can be controlled by its front-panel manual control button or via its IR remote control. The convenient front-panel LEDs indicate which input has been selected for both outputs. - Inputs: 4x component video (YPbPr), 4x stereo audio input

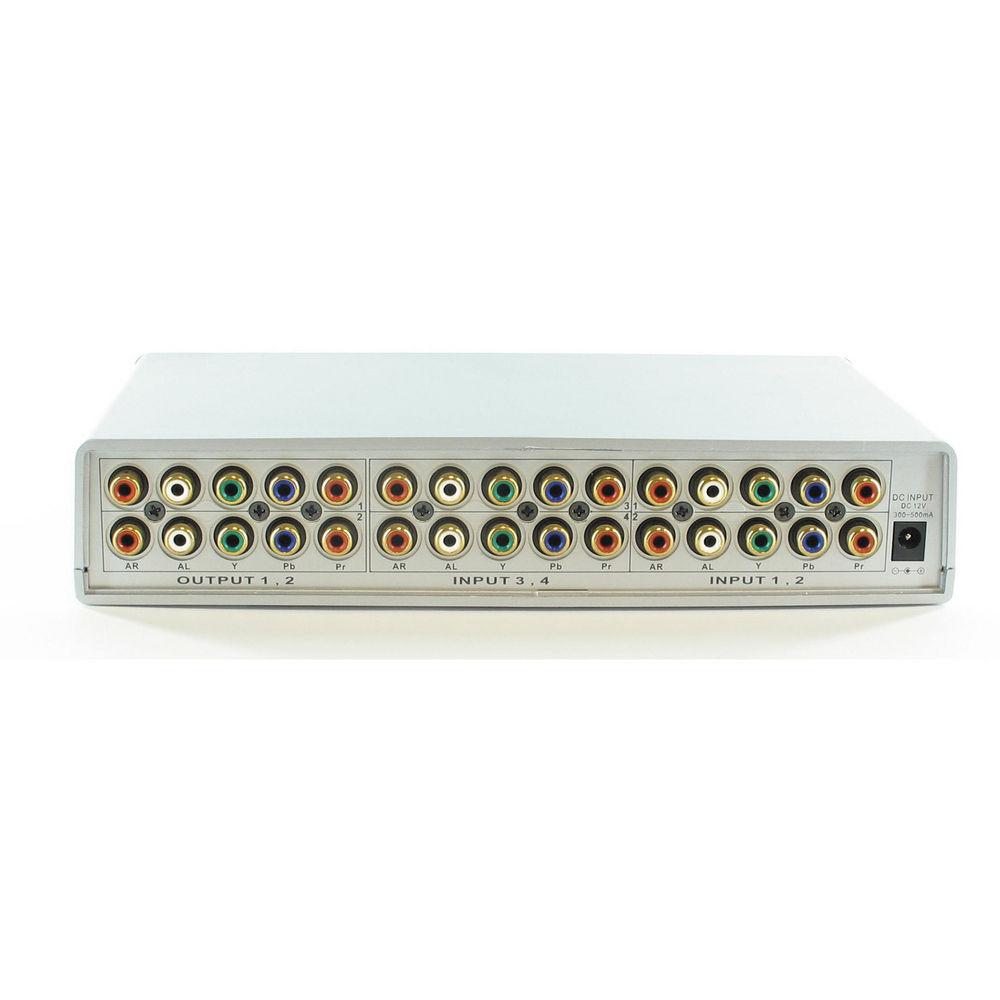

- Outputs: 2x component video (YPbPr), 2x stereo audio outputs
- Switch easily between any 4 component video sources
- Supports HDTV resolutions of 480i, 480p, 576p, 720p, 1080i, and 1080p
- IR remote control with a frequency of 38 kHz
- Suitable for full HD high-resolution video players and LCD / plasma monitor displays
- Direct selection and confirmation via front push buttons with LED readout
- Can be mounted on a 19" (48.26 cm) rack mountable panel
- Supports lower power consumption (under 450 mA at full load)
- Power supply offers a universal type 100 to 230 VAC switch
- Easy to install and simple to operate
- Can be used for composite video switching 1
Please Note: Please note that this switcher will not convert component or composite video signals. close In the Box Shinybow SB-5470 4 x 2 HDTV Component Video & Audio Matrix Routing Switcher 5 RCA Component Video Cable Left & Right Audio Cable Wireless Remote Control with Batteries User Guide AC/DC Adapter (12 VDC, 500 mA) 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5470 4 x 2 HDTV Component Video & Audio Matrix Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5470 Specs | Video Amplifier Bandwidth | 200 MHz | | Video Bandwidth | 250 MHz, (-3 dB) 200 mVpp, 300 MHz, (-3 dB) 2 Vpp
R: 250 MHz, G: 250 MHz, B: 250 MHz, and Audio: 60 MHz | | Audio Bandwidth | 60 MHz, (-3 dB) (Audio-Right: 60 MHz, Audio-Left: 60 MHz) | | Resolution | Up to 1080p | | Input/Output Connectors | Input: 4x component video (RGB, YPbPr), 4x left and right audio (RCA-Phono)
Output: 2x component video (RGB, YPbPr), 2x left and right audio (RCA-Phono) | | Audio Frequency Response | 20 Hz to 20 kHz | | Crosstalk | All Hostile: -84 dB @ 5 MHz-54 dB @ 50 MHz
Channel:
-56 dB @ 100 MHz | | Slew Rate | 1000 V/us, G = +1.2 V step | | IR Frequency | 38 kHz | | Controls | IR remote controller and front panel selection buttons with LED readout | | Power Voltage Input | 12 VDC, 0.66 A | | Power Consumption | 12 VDC, 0.66 mA | | Safety Approvals | CE, FCC, and RoHS (2002/95/EC) | | Dimensions (W x D x H) | 9.06 x 4.72 x 1.73" (230 x 120 x 44 mm) | | Weight | 2.4 lb (1.09 kg) | | | | Package Weight | 2.42 lb | | Box Dimensions (LxWxH) | 11.35 x 10.05 x 2.85" |
