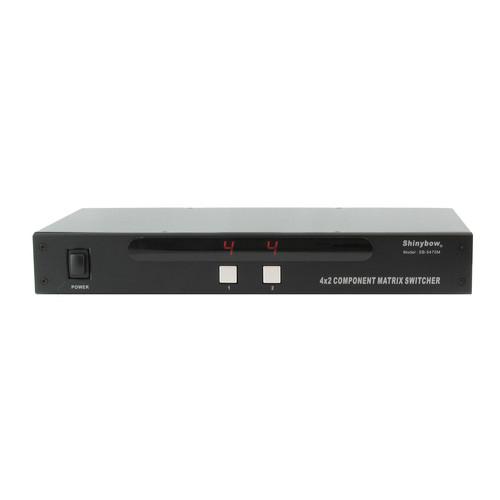

User Manual for Shinybow SB-5470M 4 x 2 Component Video Matrix Routing Switcher Click to enlarge the picture
Contents of the user manual for the Shinybow SB-5470M 4 x 2 Component
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
 |
User manual for the Shinybow SB-5470M 4 x 2 Component contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The Shinybow SB-5470M 4 x 2 Component Video Matrix Routing Switcher (Rack-Mountable) is designed to switch between 4 component (YPbPr) inputs and left and right analog audio. It is a rugged 4 x 2 switcher offering seamless switching and crystal-clear distribution of all HDTV video formats as well as audio signals. This switcher accepts up to 4 different input sources and you can seamlessly select any of these inputs to drive 2 outputs, without any signal degradation. It is universally compatible with all HDTV formats including 480i, 576i, 480p, 576p, 1080i, 720p, and 1080p.

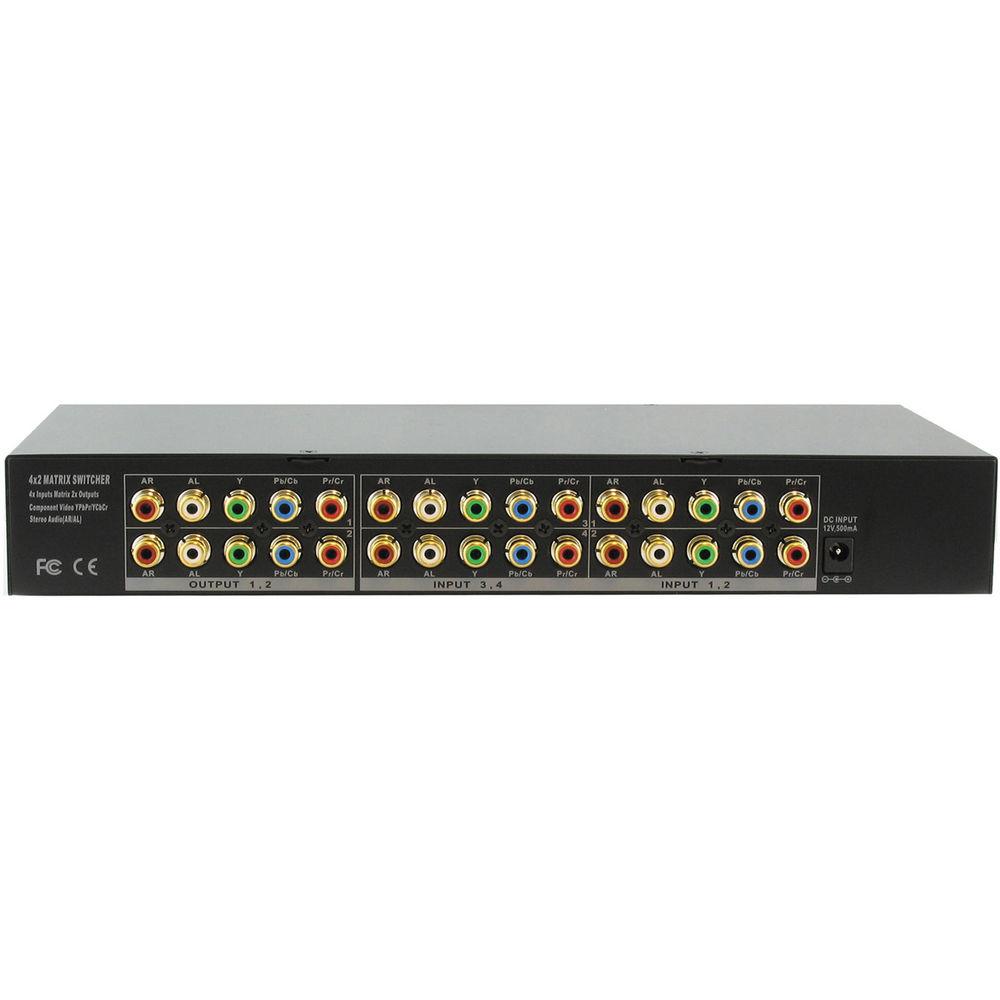

This matrix routing switcher is a versatile and compact state-of-the-art switcher of choice when you need high-quality and reliable switching. It can be controlled by its front-panel manual control button or via its IR remote control. The convenient front-panel LEDs indicate which input has been selected for both outputs. - Inputs: 4x component video (YPbPr), 4x stereo audio input
- Outputs: 2x component video (YPbPr), 2x stereo audio outputs
- Switch easily between any 4 component video sources
- Supports HDTV resolutions of 480i, 480p, 576p, 720p, 1080i, and 1080p
- IR remote control with a frequency of 38 kHz
- Suitable for full HD high-resolution video players and LCD / plasma monitor displays
- Direct selection and confirmation via front push buttons with LED readout
- Can be mounted on a 19" (48.26 cm) rack mountable panel
- Supports lower power consumption (under 450 mA at full load)
- Power supply offers a universal type 100 to 230 VAC switch
- Easy to install and simple to operate
- Can be used for composite video switching 1

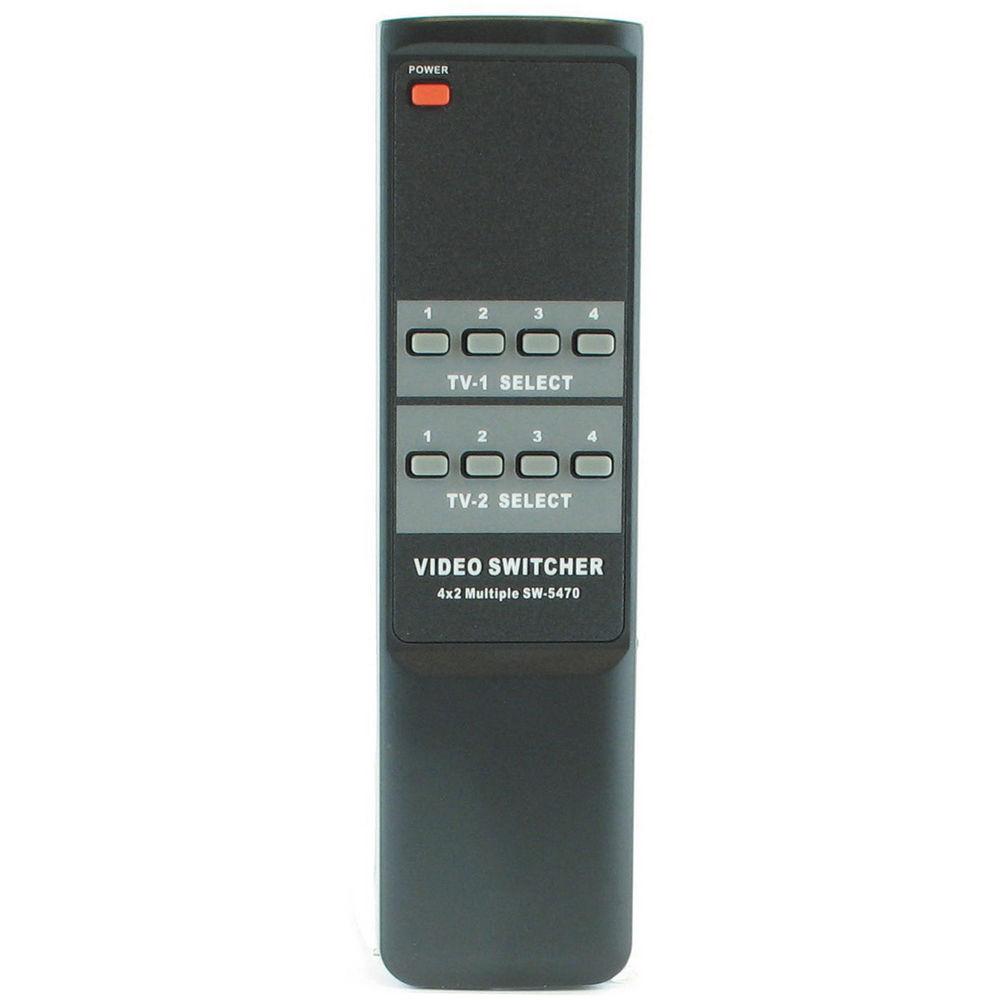

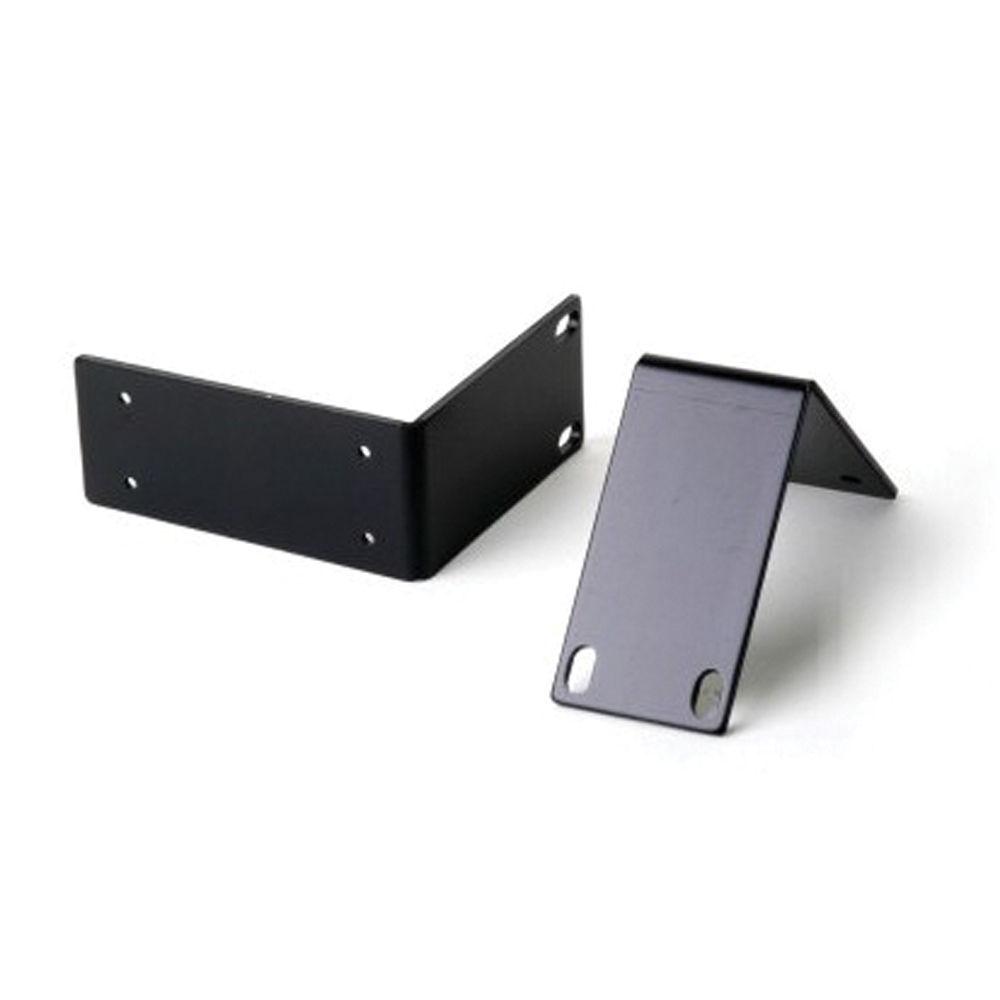

Please Note: Please note that this switcher will not convert component or composite video signals. close In the Box Shinybow SB-5470M 4 x 2 Component Video Matrix Routing Switcher (Rack-Mountable) 5 RCA Component Video Cable Left & Right Audio Cable Wireless Remote Control with Batteries User Guide AC/DC Adapter (12 VDC, 500 mA) Rack Mount Brackets 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5470M 4 x 2 Component Video Matrix Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5470M Specs | Video Amplifier Bandwidth | 200 MHz | | Video Bandwidth | 250 MHz, (-3 dB) 200 mVpp, 300 MHz, (-3 dB) 2 Vpp
R: 250 MHz, G: 250 MHz, B: 250 MHz, and Audio: 60 MHz | | Audio Bandwidth | 60 MHz, (-3 dB) (Audio-Right: 60 MHz, Audio-Left: 60 MHz) | | Resolution | Up to 1080p | | Input/Output Connectors | Input: 4x component video (RGB, YPbPr), 4x left and right audio (RCA-Phono)
Output: 2x component video (RGB, YPbPr), 2x left and right audio (RCA-Phono) | | Audio Frequency Response | 20 Hz to 20 kHz | | Crosstalk | All Hostile: -84 dB @ 5 MHz-54 dB @ 50 MHz
Channel:
-56 dB @ 100 MHz | | Slew Rate | 1000 V/us, G = +1.2 V step | | IR Frequency | 38 kHz | | Controls | IR remote controller and front panel selection buttons with LED readout | | Power Voltage Input | 12 VDC, 0.66 A | | Power Consumption | 12 VDC, 0.66 mA | | Safety Approvals | CE, FCC, and RoHS (2002/95/EC) | | Dimensions (W x D x H) | 11.82 x 5.91 x 1.73" (300 x 150 x 44 mm) | | Weight | 2.4 lb (1.09 kg) | | | | Package Weight | 4.75 lb | | Box Dimensions (LxWxH) | 13.0 x 10.3 x 3.0" |
