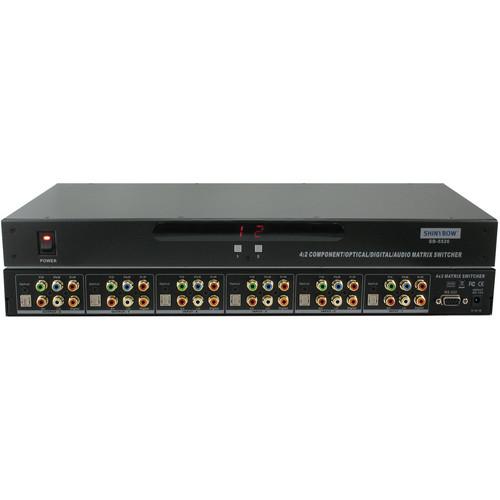

User Manual for Shinybow SB-5526 4 x 2 Component Video & Audio Matrix Switcher with IR & RS-232 Click to enlarge the picture
Contents of the user manual for the Shinybow SB-5526 4 x 2 Component
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
|
User manual for the Shinybow SB-5526 4 x 2 Component contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The Shinybow SB-5526 4 x 2 Component Video & Audio Matrix Switcher with IR & RS-232 is designed to work as a switcher for multiple audio / video sources and displays. It is capable of switching component video, PCM, and optical and stereo audio signals between 4 sources and 2 displays with compatible inputs. A maximum bandwidth of up to 325 MHz supports a sharp and highly defined video in multiple resolutions of up to 1080p. Because it is a matrix switcher, it allows any input to be routed to any output, or the same input to be routed to all outputs or any combination.
This switcher eliminates the need to constantly move around video input and output cables. The RS-232 control allows the switcher to be controlled by a computerized system such as HTPC and in this case, eliminates the need for an IR remote control. The 4 x 2 matrix switcher works with all video equipment that have proper connections, such as cable and satellite receivers, computers, video scalers, DVD players, VCRs, etc. - Switches component video and digital / analog / optical audio between multiple sources and displays
- Allows connection of 4 sources and 2 displays
- Supports resolutions up to 1080p
- Drive HDTV displays up to 150' (45.72 m) away
- ESD Rating: exceeds 4,000 V
- Switching component video YPBPR, digital audio (PCM), and audio signals
- Suitable for full HD high resolution video player device and LCD / plasma monitor displays
- Direct selection and confirm via front push buttons with LED readout
- Support RS-232 interface control driver for 95 / 98 / 2000 / XP A Windows-based control software driver (software included)
- RS-232 protocol list with manual attached
- Enclosure Type: Support 19" (48.26 cm) ear and 1 RU rack mountable pane
- Support lower power consumed full load under 1,500 mA
- Power supply offer a universal type 100 to 230 VAC switch
- Complete solution - Fully buffered inputs and outputs
In the Box Shinybow SB-5526 4 x 2 Component Video & Audio Matrix Switcher with IR & RS-232 RS-232 Cable Control Software (All Windows Operating Systems) Wireless IR Remote Control with Batteries Rack Mount Brackets Users Guide AC / DC Adapter (12 VDC, 500 mA) 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5526 4 x 2 Component Video & Audio Matrix Switcher with IR & RS-232 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5526 Specs | Type | 4 x 2 Component Video/Optical/Digital Audio and Stereo Audio Matrix Switcher | | Inputs | 4x component (YPBPR), digital audio (PCM), optical (Toslink), and stereo audio (AR/AL) | | Outputs | 2x Component (YPBPR), digital audio (PCM), optical (Toslink), and stereo audio (AR/AL) | | Signal Type | Component Video / Optical / Digital Audio and Stereo Audio connectors | | Input Connectors | Audio / Video:
2x sets of 6-RCA
1x Optical (Y/Pb/Pr, L&R Audio, PCM, or TosLink) | | Video Amplifier Bandwidth | >325 MHz | | Audio Frequency Response | 20 Hz to 20 KHz | | Low all hostile crosstalk | -83 dB @ 5 MHz | | Resolutions | Up to 1080p | | Channel Switching | 15 ns | | Scan Rates Accepted | 50 or 60 Hz | | Video Performance | 90 MHz, 0.1 dB gain flatness
0.01% differential gain error
0.02 differential phase error (RL: 150) | | IR | IR remote control (38 kHz) | | Power Consumption | 500 mA maximum | | Enclosure Type | Metal case with rack mount option (included) | | Power Source | DC 12 Volts @ 500 mA | | Dimensions (L x W x H) | With Rack Mount: 19 x 6.4 x 1.55" (48.26 x 16.26 x 3.94 cm) | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 20.0 x 12.0 x 6.0" |
