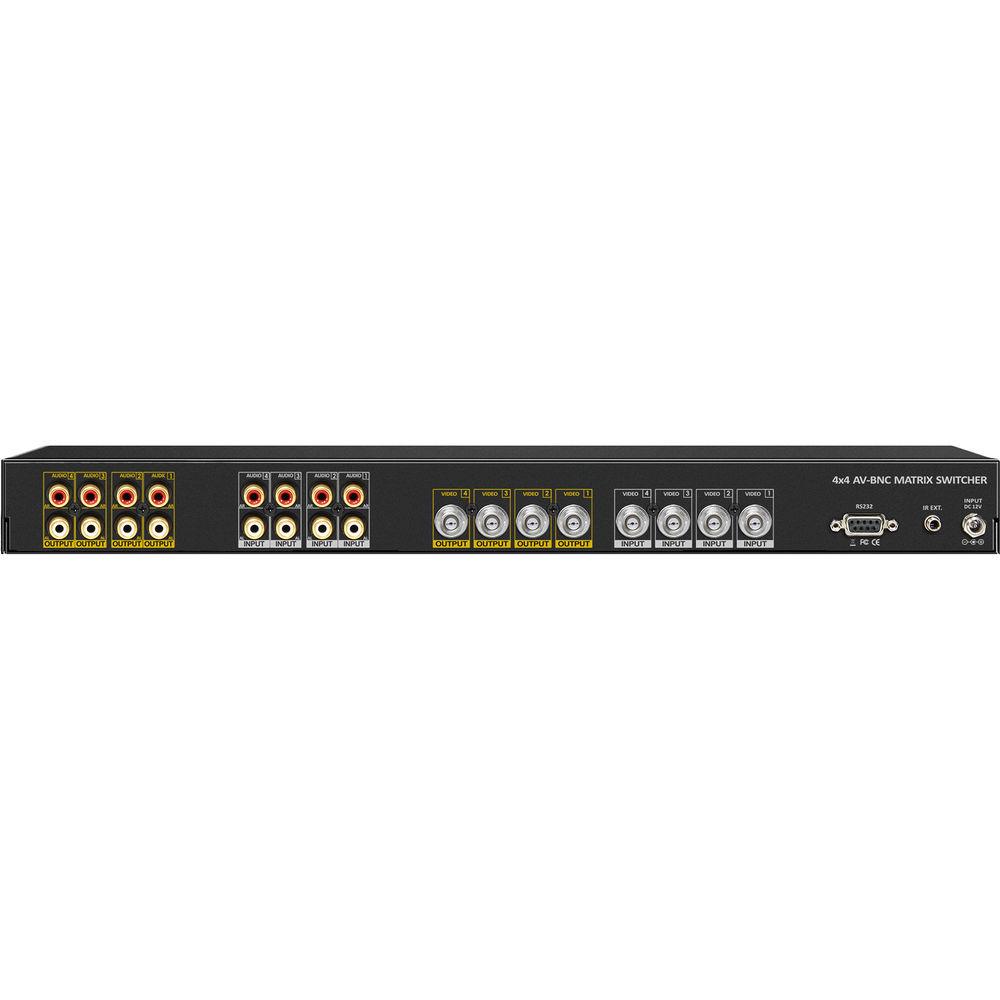

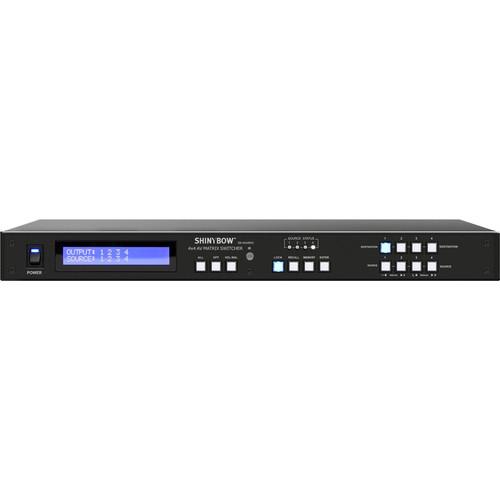

Product description The SB-5544BNC 4x4 Composite Video & Stereo Audio Switcher (BNC) from Shinybow is a matrix switcher supporting NTSC or PAL television systems. Use this switcher to transmit composite video via four BNC inputs and four BNC outputs. Audio is routed via four stereo inputs and four stereo outputs with volume and balance controls. Being a true matrix router, any input may be routed to any output, or one input may be routed to all outputs or to any combination of outputs. This eliminates the need to repeatedly move around video/audio input and output cables. Use the SB-5544BNC switcher for transmitting composite video/audio sources to displays, monitors, or projectors in one-to-many or many-to-one configurations. Selection of inputs is made via the front panel push buttons or an IR control unit or RS-232 control by computer. An RS-232 Windows GUI interface is provided for matrix routing control (Windows only). A two-line front panel LCD display indicates the selected sources and outputs. Features - Matrix switcher with four composite (BNC) inputs and four composite (BNC) outputs
- Four stereo audio input pairs (RCA) and four stereo audio output pairs (RCA, AR/AL) with volume and balance controls
- Control via front panel buttons, IR remote control, IR external port, or via the RS-232 interface (Windows)
- Supports NTSC or PAL composite video systems
- A front panel two-line LED display window indicates input and output status

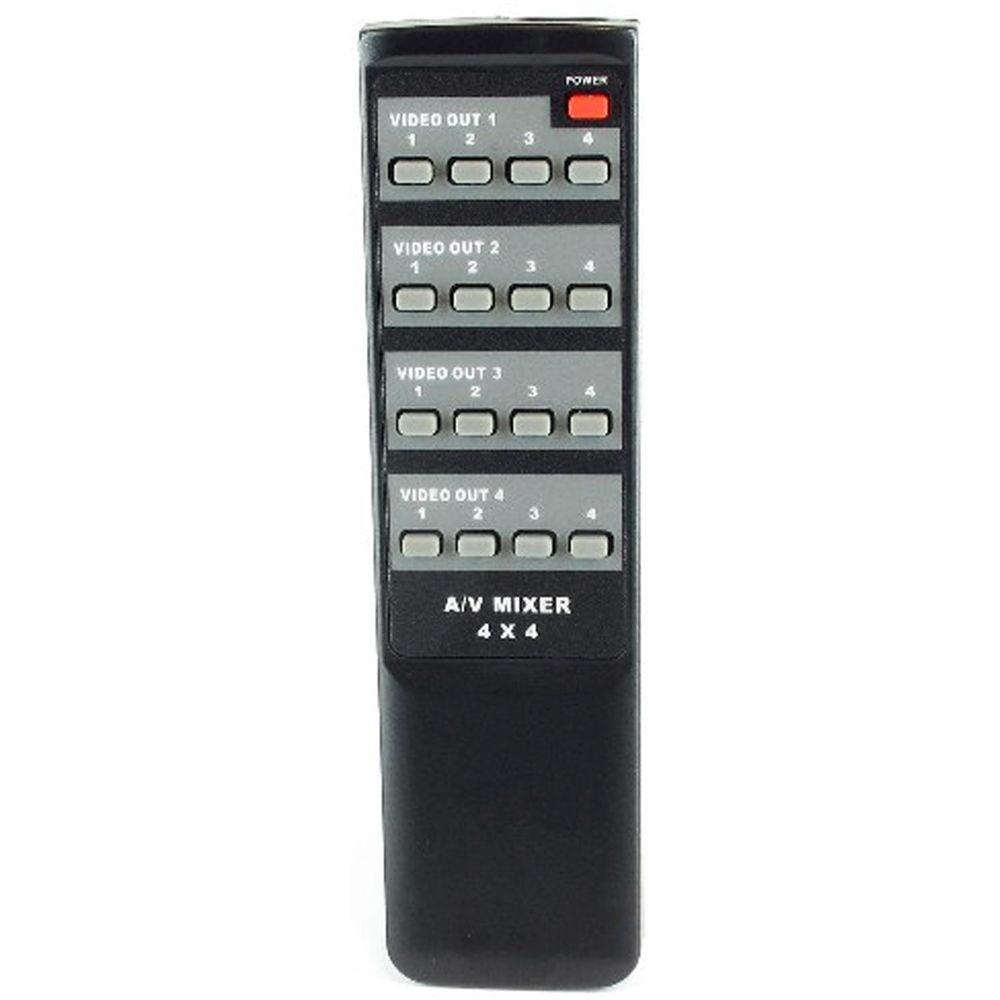

In the Box Shinybow SB-5544BNC 4x4 Composite Video (BNC) & Audio Switcher with Volume Control IR Remote Control 1U-440L 19" Rackmount SB-100 IR Extender Set GUI & Driver CD (Windows) 6' SB-100C IR Extender Receiver Cable RS-232 Cable (6') DC Power Supply (12 V) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5544BNC 4x4 Composite Video & Audio Switcher with Volume Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5544BNC Specs | Type | Composite Video/Stereo Audio Matrix Switcher: 4 inputs to 4 outputs | | Video Support | Video: Composite video 0.5~1.0 Vpp, 75 Ohms
Connectors: BNC | | Audio Support | Stereo audio (AR/AL)
Connectors: Dual RCA connectors (red/white) | | Video Bandwidth | 4450 MHz (-3 dB), 200 mVpp, higher resolution formats | | Inputs | Video: 4 x composite video (BNC)
Audio: 4 x stereo audio (RCA) | | Outputs | Video: 4 x composite video (BNC)
Audio: 4 x stereo audio (RCA) | | Audio Volume Control | 0~+100 (+6 dB) | | Audio Balance Control | Audio Right: +51~+100
Audio Left: 0~+50 | | Low All Hostile Crosstalk | -83 dB @ 5 MHz | | Gain Control | 60 MHz, 0.1 dB gain flatness | | IR Frequency | 38 kHz | | IR Distance | Up to 984' (300 m) | | Rackmount | 1 RU high (with 19" rackmount) | | Power Supply | 12 VDC, 1.25 A (consumption 1250 mA)
Universal Type: 50/60 Hz, 100~240 VAC | | Dimensions (WxHxD) | 17.25 x 8 x 1.75" (438 x 203 x 45 mm) | | Weight | Unit only: 5.1 lb (2.3 kg)
Total: 7.5 lb (3.4 kg) | | | | Package Weight | 8.05 lb | | Box Dimensions (LxWxH) | 20.2 x 11.4 x 3.7" |
