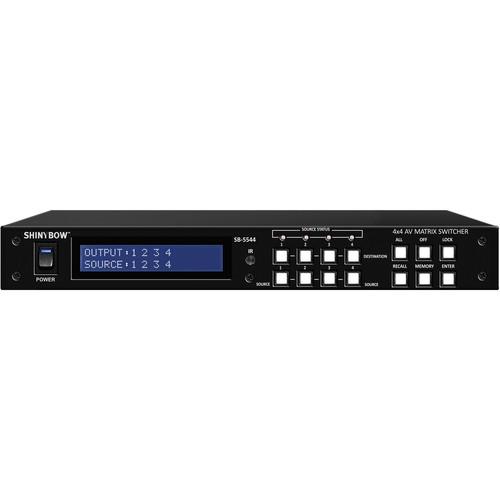

User Manual for Shinybow SB-5544LCM 4x4 Composite Video Stereo Audio Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Shinybow SB-5544LCM 4x4 Composite Video Stereo
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
|
User manual for the Shinybow SB-5544LCM 4x4 Composite Video Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The SB-5544LCM Composite Video/Stereo Audio Matrix Switcher from Shinybow is a matrix-routing AV switcher supporting both NTSC and PAL composite video. The SB-5544LCM is a true matrix switcher, routing any of four inputs to any of four outputs, or sending any one input to all outputs, thereby eliminating the need to frequently reroute cables among devices. Use this switcher to send signals from composite video source devices such as camcorders, game consoles, DVD players, satellite receivers, set-top boxes, etc., to composite video display devices such as monitors, displays, and video projectors. Inputs are selected using the SB-5544LCM's front panel buttons, an IR remote control, or by RS-232 computer-based control. Each of the switcher's composite video ports feature a high bandwidth of 450 MHz and source inputs are automatically scanned via LED. An IR remote control, 1 RU rackmount brackets, and a 12V power supply are included with the switcher. - Routes any of four inputs to any of four outputs, or sends one input to four identical outputs
- Supports composite video and stereo audio signals (R/L), automatically scans for inputs
- High 450-MHz bandwidth for each composite video port
- Control is offered via the push buttons on the front panel, an IR remote control, or using RS-232 control via a computer
- Eliminates the need to frequently reroute source and output cables
- Suitable for camcorders, DVD players, set-top boxes, and satellite-device sources and monitors, displays, or projectors
- Includes rackmount brackets (1 RU), an IR receiver set, an IR remote control, and an RS-232 cable
In the Box Shinybow SB-5544LCM 4x4 Composite Video/Stereo Audio Matrix Switcher IR Remote Control 2 x 1U-300L 19" Rackmount Bracket SB-100 IR Extender Receiver Set RS-232 Cable 12V Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5544LCM 4x4 Composite Video Stereo Audio Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5544LCM Specs | Type | Switcher: 4 inputs to 4 outputs | | I/O Signals | Composite Video: 0.5 to 1.0 V p-p, 75 Ohms via 1 x RCA connector (yellow)
Stereo Audio: (AR/AL) via 2 x RCA connectors (red/white) | | Video Bandwidth | 450 MHz (-3 dB), 200 mV p-p | | Audio Specifications | 20 Hz to 20 kHz | | All Hostile Crosstalk | -83 dB @ 5 MHz | | Gain Control | 60 MHz, -0.1 dB gain flatness | | IR Frequency | 38 kHz | | IR Distance | Included SB-100 Receiver: 984' (300 m) maximum (cable not included)
Optional SB-100C Receiver: 6.6' (2 m) maximum | | RS-232 Control | Standard RS-232 interface serial via PC drive | | DC Power Input | 12 VDC, 1.25 A, universal-type switch
100-240 VAC, 50-60 Hz | | Power Consumption (Maximum) | 750 mAh | | Rackmountable | 1 RU, 19" (483 mm) | | Dimensions (W x D x H) | 12 x 6 x 1.75" (305 x 152 x 45 mm) | | Weight | 3.3 lb (1.5 kg) | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 13.0 x 10.3 x 3.1" |
