Product description The Shinybow SB-5560 8 x 4 Video / Stereo Audio Matrix Routing Switcher is a good matrix routing switcher for controlling S-Video, composite video, and stereo audio signals with IR remote and RS-232. The switcher has an -56 dB crosstalk @ 5 MHz and >50 dB isolation. This switcher supports 19” (48.26 cm) rack mounting. It features 8 individual inputs with 4 individual outputs a video bandwidth of 250 MHz. Since it is a matrix router, any of the inputs may be routed to any of the outputs, or the same input may be routed to all outputs or a combination. It completely eliminates the need to constantly move around audio and video input and output cables.
This switcher is ideally suited for full HD (High Definition) LCD HDTV television for resolutions of 480p, 720p 1080i, and 1080p or HD plasma display monitor applications. Control is provided via front selections push buttons with LED readout or IR remote controller. The RS-232 interface provides with a third control. A Windows-based control software package is included to provide complete control of the SB-5560 switcher from a PC. - Supports 8 inputs and 4 outputs via S-Video, composite video, and stereo audio
- AV connectors could be used as component video for HDTV signal transfer
- Suitable for 480p, 720p, 1080i, & 1080p resolutions
- Supports RS-232 interface control driver for all Windows operating systems
- Gold-plated RCA phono sockets for optimum signal transfer

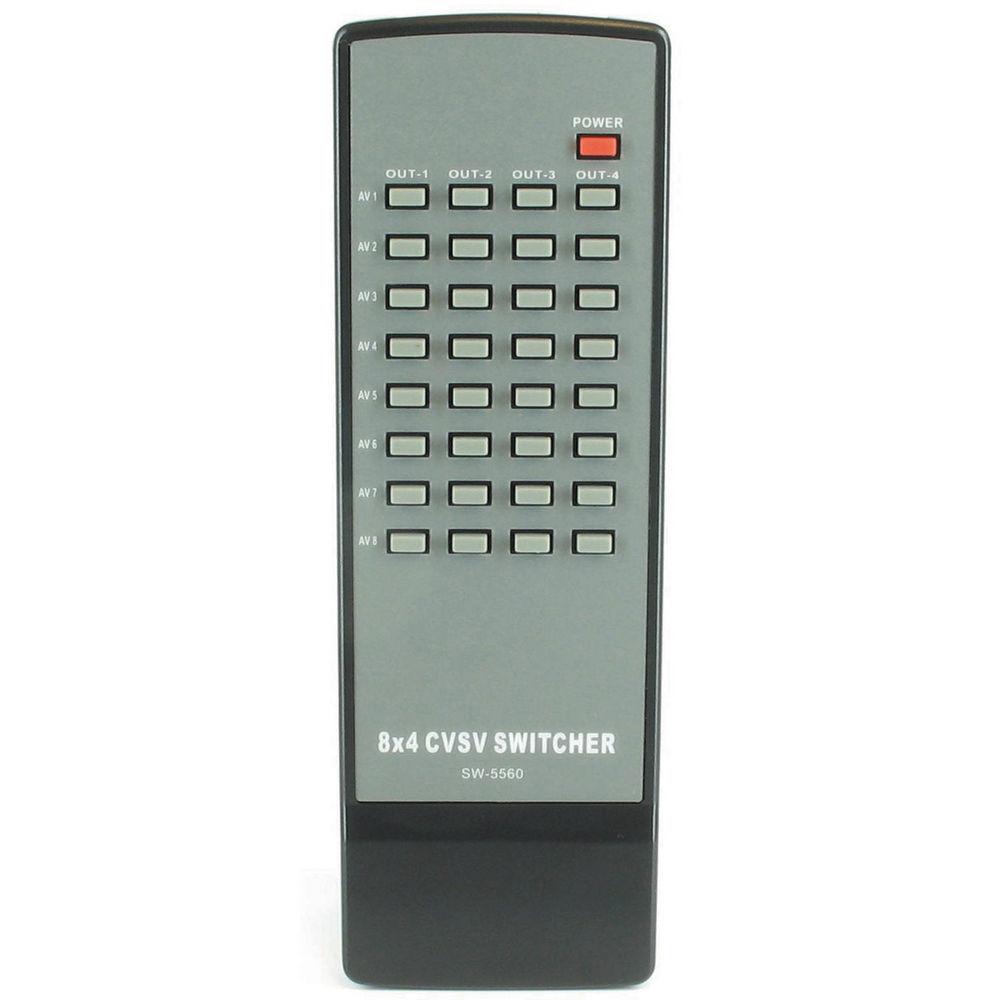

- IR remote control with IR frequency of 38 kHz

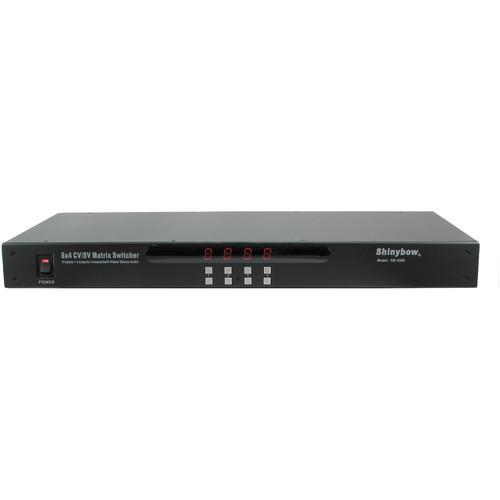

- Front panel control via selection channel push buttons with LED readout
- Enclosure Type: Supports 19" (48.26 cm) ear & 1 RU rack mountable panel
- Supports lower power consumption (under 750 mA) at full load
- Power supply with a universal-type 100 to 230 VAC switch
In the Box Shinybow SB-5560 8 x 4 Video / Stereo Audio Matrix Routing Switcher SW-5644 Wireless Remote Control with Batteries 19" Rack Mount Kit RS-232 Driver CD (All Windows Operating Systems) Users Guide AC/DC Adapter (12 VDC, 1000 to 3000 mA) 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5560 8 x 4 Video Stereo Audio Matrix Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

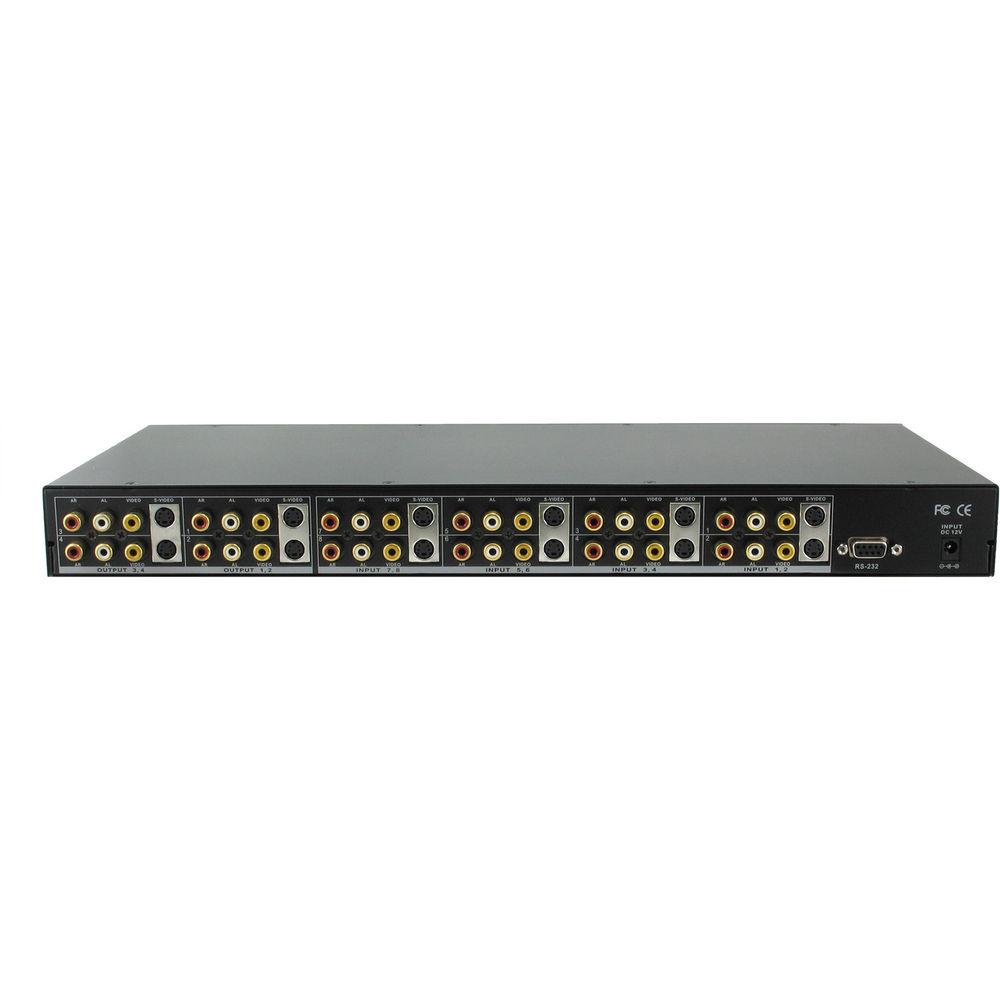

Technical parametersShinybow SB-5560 Specs | Input/Output | 8 inputs to 4 outputs matrix router switcher | | Signals | S-Video (Y/C): 1x mini-din 4pin female connector
Composite video: 1x RCA female connector
Stereo audio (AR / AL): 2x RCA female connector | | Input | 8x S-Video (Y/C), composite video, and stereo audio (AR / AL) | | Output | 4x S-Video (Y/C), composite video, and stereo audio (AR / AL) | | Video Supported | HDTV 480p, 576p, 720p, and 1080i/p (1125i/p) | | Bandwidth | Video:
250 MHz, (-3 dB) 2 Vpp
(S-Video (Y/C) and composite video)
Audio:
60 MHz, (-3 dB)
(Audio Right: 60 MHz)
Audio Left: 60 MHz) | | Video Distortion | <1.2 dB | | Audio Distortion | <0.6 dB | | Channel Isolation | >50 dB | | S/N Ratio | >50 dB | | Audio Frequency Response | 20 Hz to 20 kHz | | Crosstalk | All Hostile:
-56 dB @ 5 MHz
-45 dB @ 50 MHz | | Scan Rates Accepted | 50 or 60 Hz | | IR Frequency | 38 kHz | | Controls | IR remote controller, front panel selection buttons with LED readout, and RS-232 PC control | | Power Voltage Input | 12 VDC, 1.25 A | | Power Consumption | 12 VDC @ 1.5 to 3A | | Safety Approvals | CE, FCC, and RoHS (2002/95/EC) | | Dimensions (W x D x H) | 17.32 x 7.87 x 1.73" (43.99 x 19.99 x 4.4 cm) | | Weight | About 3.92 lb (1.78 kg) with metal case | | | | Package Weight | 8.05 lb | | Box Dimensions (LxWxH) | 20.3 x 11.3 x 3.8" |
