User Manual for Shinybow SB-5588CT 8x8 Component Video w Digital Analog Audio Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Shinybow SB-5588CT 8x8 Component Video w
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
|
User manual for the Shinybow SB-5588CT 8x8 Component Video w contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|

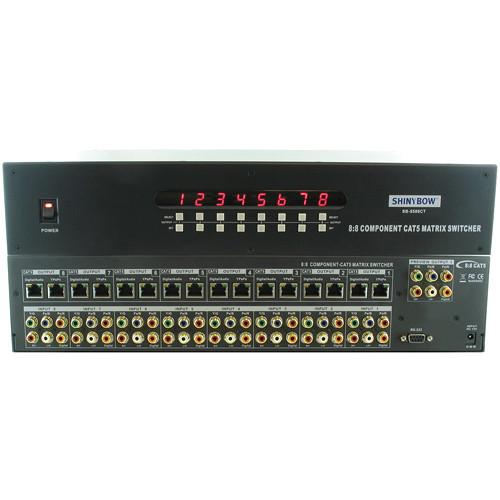

Product description The Shinybow SB-5588CT 8x8 Component Video w/ Digital/Analog Audio Matrix Switcher with RS-232 signal port and Ethernet is designed to work as a switcher for multiple audio / video sources and displays. Capable of switching Component Video, SPDIF, and Stereo Audio signals between 8 sources and 8 displays with compatible inputs. A maximum bandwidth of 325 MHz supports sharp and highly defined videos in multiple resolutions of up to 1080p. Because it is a matrix switcher, it allows any input to be routed to any output; or the same input to be routed to all outputs or any combination.
The RS-232 control allows the switcher to be controlled by a computerized system such as Hyper Terminal and in this case, it eliminates the need for an infrared remote control. The 8 x 8 Matrix Switcher works with all video equipment that have proper connections, such as Cable and Satellite receivers, Computers, Video Scalars, DVD players, VCRs, and so on. It also supports a set of RCA components and digital / analog audio for a local monitor or troubleshooting. This output is the same signal as channel 1 Output. - Switches Component Video and Digital / Analog Audio between multiple sources and displays
- Allows connection of 8 sources and 8 displays
- Supports resolutions up to 1080p
- Connects using 2 CAT5/6/6e cables per output channel
In the Box Shinybow SB-5588CT 8x8 Component Video w/ Digital/Analog Audio Matrix Switcher RS-232 driver CD (All Windows Operating Systems) IR Remote Control Rack Mount Bracket Users Guide AC/DC Adapter (12 VDC, 1,000 to 3,000 mA) 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5588CT 8x8 Component Video w Digital Analog Audio Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5588CT Specs | Switch Type | 8 in to 8 out, component video-digital/stereo audio matrix switcher | | Inputs | 1x component video(YPBPR) 0.5 to 1.0 Vpp, DDC 5 Vpp
1x digital audio (PCM), via 1x RCA connector
1x stereo audio (AR/AL), via 2x RCA connector (red/white) | | Outputs | 1x CAT5: Component video (YPBPR) 0.5 to 1.0 Vpp, DDC 5 Vpp, via 1x RJ-45 CAT5 connector
1x CAT5: Digital audio (PCM) and stereo audio (AR/AL), via 1x RJ-45 CAT5 connector | | Video Bandwidth | 325 MHz (-3 dB), 200m Vpp | | Video Supported | Higher resolution formats 480i/p, 720p, & 1080i/p | | Audio Supported | Digital Audio (PCM) and Stereo Audio (AR/AL) | | Crosstalk | Low all Hostile Crosstalk: -83 dB @ 5 MHz | | Control Button | IR remote, select buttons on the front panel & RS-232
PC RS-232 Control: RS-232 interface serial via DRV on a PC | | Gain Control | 60 MHz 0.1 dB gain flatness | | Chassis Material | Metial (T=1mm) | | Safety Approvals | CE, FCC, RoHS(2002/95/EC) | | Power Supply | 12 VDC / 2A (consumption 2.25A Max) use universal switch type 50/60 Hz,100 to 230 VAC | | Dimensions | L x W x H: 19.00 x 7.87 x 3.46" (48.26 x 19.98 x 8.78 cm) | | Weight | 5.42 lb (2.45 kg) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 20.0 x 12.0 x 6.0" |
