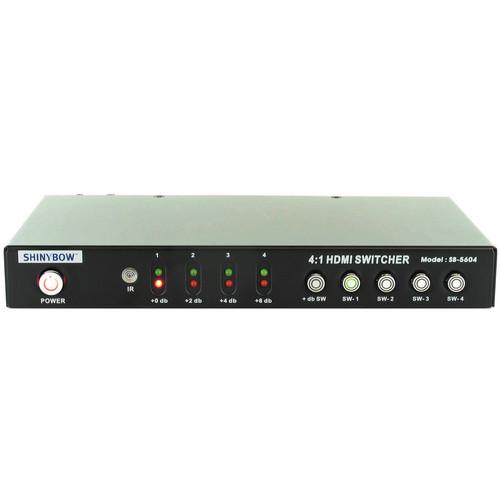

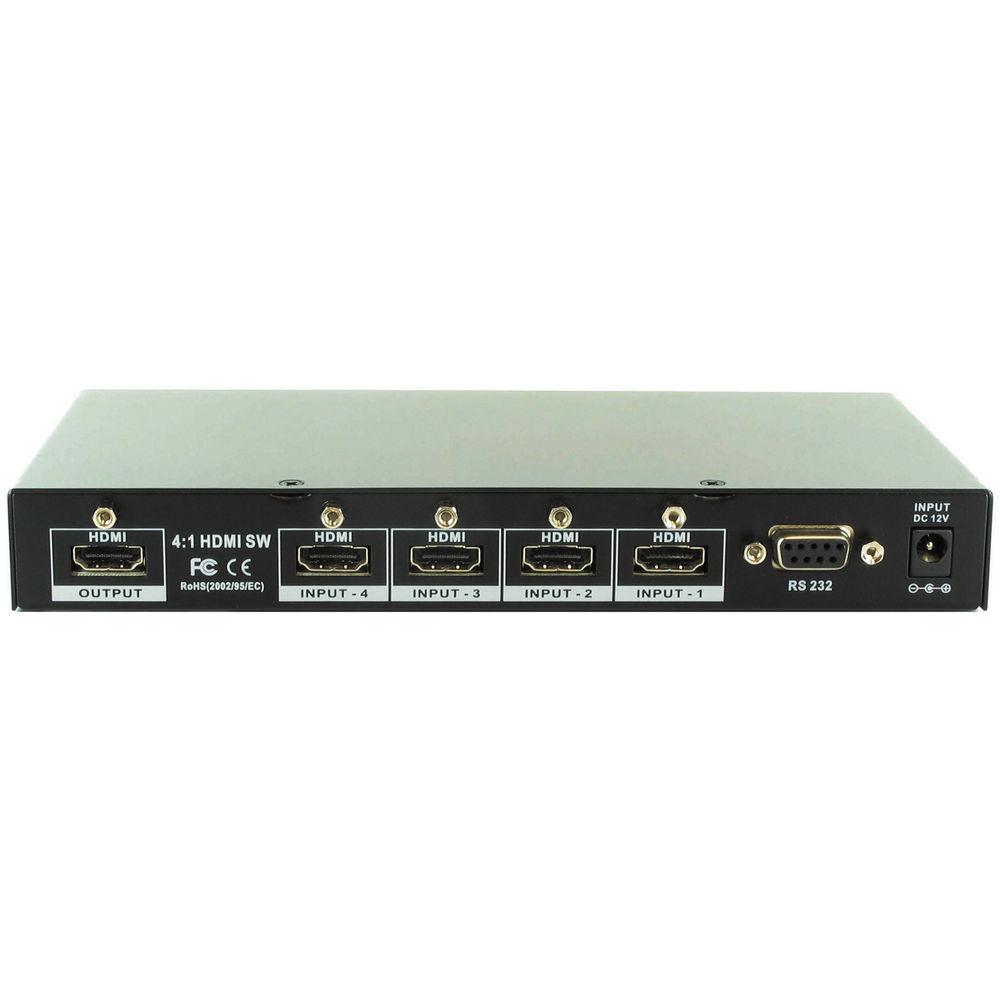

Product description The SB-5604 4 x 1 HDMI Routing Switcher from Shinybow features equalized TMDS inputs and pre-emphasized TMDS outputs for switching of high-definition digital TMDS signals. With 4 group inputs and 1 group output, this switcher can support data rates of up to 2.25 Gb/s. By using the selection buttons on the front panel, the switcher enables you to control any one of the 4 inputs to 1 output.This switcher also supports switching of 1080p HDMI format and UXGA (1600x1200) DVI resolution at up to 2.25 Gb/s, and is suitable for HD (high-definition) TV or display applications. The unit can be controlled via the front push buttons with LED readout or via the IR remote controller.An RS-232 interface is provided for interfacing with third party control. The input cable equalizer enables the use of long cables at the input (up to 65’ (20m) of 24 AWG cable at 1080p). A Windows-based control software package is included to provide complete control of the unit from a PC. - Supports 4 x HDMI Inputs and 1 x HDMI Output
- Supports high resolution inputs up to 1080p
- Supports PC resolutions up to 1920x1200
- Supports data rates of 250 Mb/s to 2.25 Gb/s
- Equalized inputs for operation using 65' (20m) 1080p long HDMI cables
- HDMI 1.3, 1.2, HDCP 1.1, and DVI 1.0 compliant
- RoHS, CE and FCC compliant
- Suitable for professional HDMI component integration
- RS-232 PC control with Windows-based control software
- Easy to install and simple to operate

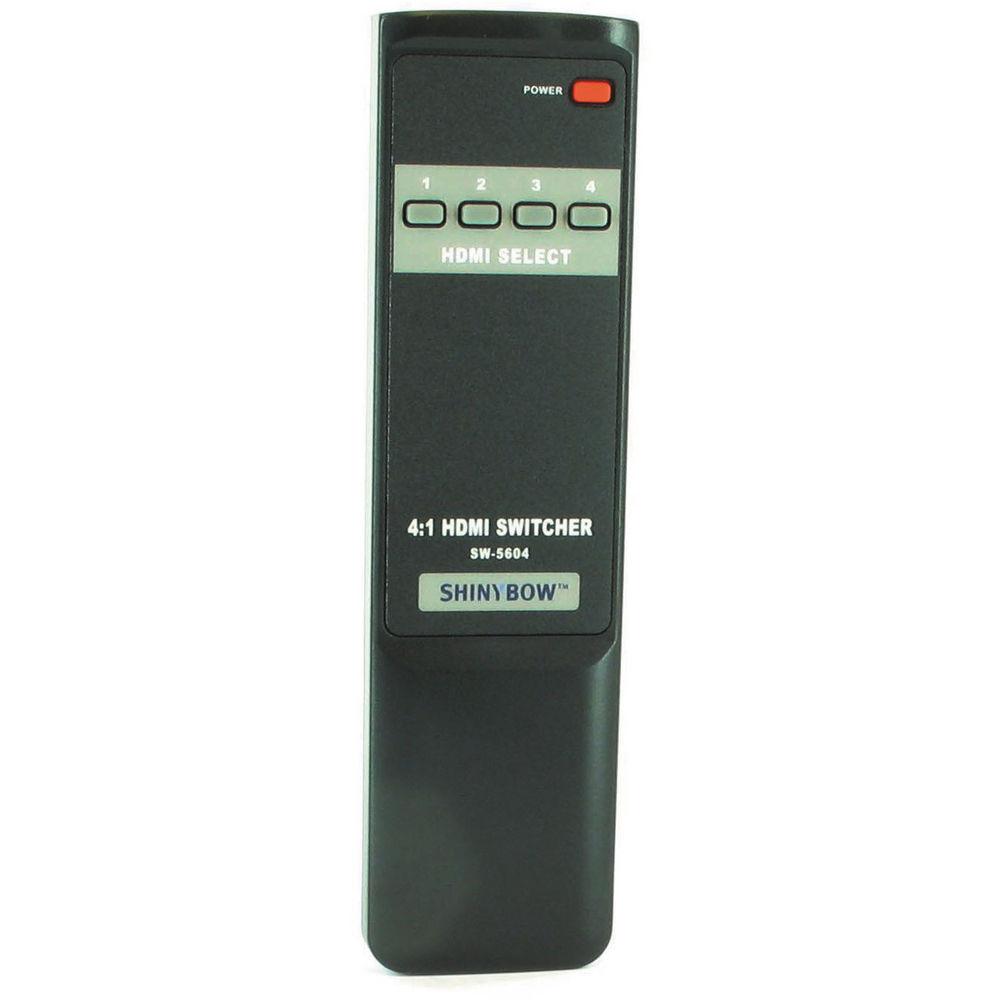

In the Box Shinybow SB-5604 4 x 1 HDMI Routing Switcher IR Remote Control RS-232 Cable RS-232 Driver CD (For Windows Operating Systems up to Windows XP) 12V Universal Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5604 4 x 1 HDMI Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5604 Specs | Switcher | Type: 4 inputs to 1 output HDMI-DVI switcher
Complete Solution: Fully buffered inputs and outputs | | Data Rates | 250 Mb/s to 2.25 Gb/s | | Pixel Clock Frequency | 25 to 225 MHz | | Cable Distance | HDMI: 65' (20 m) at 1080p | | Audio Distortion | 50 Ω on termination (globally switchable) | | Single Power Supply | Operation 3.3 V | | Standard Compliance | HDCP, HDMI receiver and DVI | | IR Frequency | 38 kHz | | HDTV Compatibility | 1080p HDMI formats and UXGA 1600 x 1200 resolution | | Modes | Multiple channel (for bundling) | | Switch | Featuring: TMDS inputs and outputs Link: 4 x 1 single HDMI-DVI | | Power Supply | 12 VDC / 1.25 A | | Regulatory Approvals | CE, FCC, RoHS (2002/95/EC) | | Power Consumption | 1.25 A | | Power Voltage Input | 12 VDC @ 500 mA to 3 A | | Dimensions (W x D x H) | 8.27 x 4.40 x 1.10" (210.06 x 111.76 x 27.94 mm) | | Net Weight | Approximately 2.2 lb (1.0 kg) (for the unit only, with metal case) | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 11.2 x 10.0 x 2.9" |
