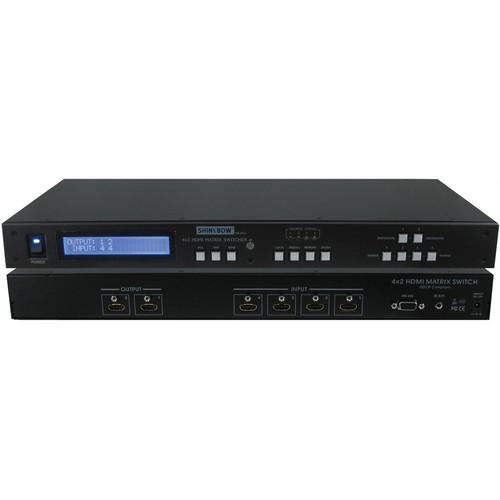

User Manual for Shinybow SB-5642LCM 4 x 2 HDMI Matrix Routing Switcher Click to enlarge the picture
Contents of the user manual for the Shinybow SB-5642LCM 4 x 2 HDMI
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
|
User manual for the Shinybow SB-5642LCM 4 x 2 HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The Shinybow SB-5642LCM switcher is used to transmit HDMI video with embedded audio via four HDMI inputs and two HDMI outputs. It supports HD resolutions up to 1080p/60 and data rates up to 6.75 Gbps. With this HDCP-compliant matrix switcher, HDMI signals can be selected and distributed to any 2 outputs simultaneously. Use the SB-5642LCM for transmitting high-resolution HDMI sources to HDMI displays, monitors, projectors, or audio receivers in one-to-many or many-to-one configurations. Seven selectable EDID modes provide optimal display performance and the Fast Speed Start function allows for switching in as little as two seconds. Control options are provided via front panel push buttons, IR remote, or via an RS-232 Windows-based GUI interface. The SB-5642LCM includes an IR extender for control up to a maximum distance of 1000'. A two-line front panel LCD display indicates input and output–source status. Features - Matrix switcher with four HDMI inputs and two HDMI outputs
- Supports HDMI video with embedded audio at resolutions up to 1080p/60 with link speeds up to 6.75 Gbps/225 MHz
- Fast Speed Start EDID function enables switches in as fast as two seconds
- Select from seven EDID modes for optimal display performance
- Control via front panel buttons, IR remote control with extender, or an RS-232 Windows-based GUI
- A front panel two-line LED display window indicates input and output status
- Supports EDID for total control of compliant displays
In the Box Shinybow SB-5642LCM 4 x 2 HDMI Matrix Routing Switcher Wireless Remote Control Rackmount Kit SB-100 IR Extender RS-232 Driver CD (Windows) RS-232 Cable HDMI Locking Post Replacement Screws Power Supply (12 V, 3 A) Limited 3-Year Warranty Note: IMPORTANT WARRANTY INFORMATION: If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws without installing the HDMI Locking Post replacement screws will void your warranty. Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5642LCM 4 x 2 HDMI Matrix Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5642LCM Specs | Type | HDMI Matrix Switcher: 4 inputs to 2 outputs | | HDMI Support | Up to 1080p/60 | | HDCP | HDCP 2.0 compliant
CEC compliant | | Video Bandwidth | Double Data Rates: 225 MHz
Total Bandwidth: 6.75 Gbps | | Connectors | Inputs:
4 x HDMI, type-A female
1 x 12 VDC, 3 A power, 2.1/5.5 mm female jack
I/O:
1 x IR extension, 3.5 mm female jack
1 x RS-232, 9-pin DB
Outputs:
2 x HDMI type-A female | | Supported Video Resolutions | 1080p, 1080i, 720p, 480p, 480i
3D (1.4a) format | | Audio Supported | Multi Audio Formats 5.1, 7.1
MAT (MLP)
Dolby Digital
Dolby TrueHD
Dolby Digital Plus
DTS, DTS-ES 6.1
DTS-HD, DTS-HD-HRA, DTS-HD Master (PCM-2CH) | | EDID Modes | Internal Modes: AUTO/1080p-2CH/1080p-5.1/1080p-7.1/1080i-2CH/720p-2CH
External Modes: Passing mode | | IR Extender | Maximum Distance: 1000' (305 m) | | IR Frequency | 38 kHz | | Operational Temperature | 32 to 100°F (0 to 38°C) | | Power Supply | 12 VDC, 2 A | | Maximum Power Consumption | 2050 mAh, universal switch type 100~230 VAC, 50/60 Hz | | Rack Mount | 1 RU | | Dimensions (W x D x H) | 17.5 x 10 x 1.75" (445 x 254 x 45 mm) | | Weight | 5.5 lb (2.5 kg) | | | | Package Weight | 8.55 lb | | Box Dimensions (LxWxH) | 20.3 x 11.3 x 2.7" |
