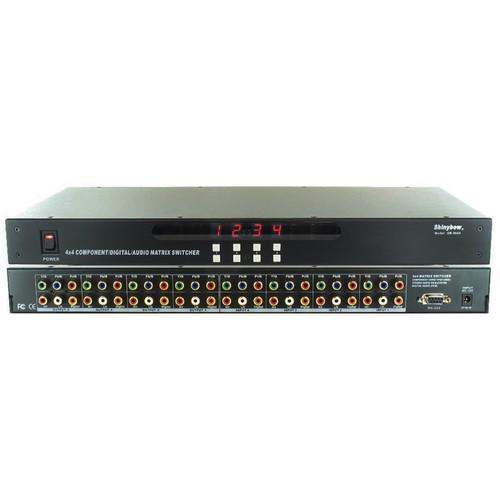

User Manual for Shinybow SB-5644 4 x 4 HDTV Component Digital Audio Matrix Routing Switcher Click to enlarge the picture
Contents of the user manual for the Shinybow SB-5644 4 x 4 HDTV
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
|
User manual for the Shinybow SB-5644 4 x 4 HDTV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The Shinybow SB-5644 4 x 4 HDTV Component / Digital / Audio Matrix Routing Switcher is designed for multiple audio and video sources and displays. It is capable of switching component video, SPDIF and stereo audio signals between 4 sources and 4 displays with compatible inputs. It features a maximum bandwidth of 325 MHz, which will support sharp and highly defined videos in multiple resolutions of up to 1080p. It allows any input to be routed to any output or the same input to be routed to all outputs or any combination, this eliminating the need to constantly move around video input and output cables.
Control via RS-232 allows the switcher to be accessed via a computerized system such as HTPC and eliminates the need for an IR remote control. The 4 x 4 matrix switcher works with all video equipment that have proper connections, such as cable and satellite receivers, computers, video scalers, DVD players, VCRs, etc. - Switches component video and digital / analog audio between multiple sources and displays
- Allows connection of 4 sources and 4 displays
- Supports HDTV resolutions 480i, 480p, 576p, 720p, 1080i, and 1080p
- Good component video, digital audio and stereo audio performance
- ESD rating exceeds 4000 V
- Switching of component video YPBPR, digital audio (PCM) and audio signals
- Suitable for full HD high-resolution video players and LCD / plasma monitor displays
- Direct selection and confirmation via front push buttons with LED readout
- IR remote control with IR frequency of 38 kHz
- Supports RS-232 interface control driver for Windows 95 / 98 / 2000 / XP operating systems
- RS-232 protocol list with manual attached
- Can be mounted on a 19" (48.26 cm) ear and 1RU rack mountable panel
- Supports low power consumption (under 1500 mA at full load)
- Power supply with a universal-type 100 to 230 VAC switch
In the Box Shinybow SB-5644 4 x 4 HDTV Component / Digital / Audio Matrix Routing Switcher SW-5644 Wireless Remote Control with Batteries 19" Rack Mount Kit RS-232 Driver CD (All Windows Operating Systems) Users Guide AC/DC Adapter (12 VDC, 1000 to 3000 mA) 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5644 4 x 4 HDTV Component Digital Audio Matrix Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5644 Specs | Input/Output | 4 x component / digital / stereo audio | | Video Supported | HDTV 480p, 576p, 720p, and 1080i/p (1125i/p) | | Bandwidth | Video: 325 MHz, (-3 dB) 200 mVpp, 380 MHz, (-3 dB) 2 Vpp
(R: 325 MHz, G: 325 MHz, B: 325 MHz, Digital: 110 MHz, and Audio: 60 MHz)
Audio: 60 MHz, (-3dB) Audio-Right: 60 MHz; Audio-Lift: 60 MHz | | Video Distortion | <1.2 dB | | Audio Distortion | <0.6 dB | | Channel Isolation | >50 dB | | S/N Ratio | >50 dB | | Audio Frequency Response | 20 Hz to 20 kHz | | Gain Flatness | 90 MHz, 0.1 dB | | Differential Gain Error | 0.01%, 0.1 dB | | Differential Phase Error | 0.02, 0.1 dB (RL: 150 Ω) | | Settling Time | 15 ns to 0.1% | | Crosstalk | All Hostile
-84 dB @ 5 MHz
-54 dB @ 50 MHz | | Crosstalk | -56 dB @ 100 MHz | | Slew Rate | 1000 V/us, G: +1,2 V step | | Isolation | -100 dB @ 10 MHz | | Output Current | 100 mA | | Power | CMOS: 550 uA quiescent current | | Controls | IR remote controller (38 kHz), front panel selection buttons with LED readout, and RS-232 PC control | | Power Voltage Input | 12 VDC, 1.25 A | | Power Source | 12 VDC, 1000 to 3000 mA | | Safety Approvals | CE, FCC, and RoHS (2002/95/EC) | | Dimensions (W x D x H) | 17.32 x 7.8 x 1.73" (440 x 200 x 44 mm) | | Weight | Approximately 4.35 lb (1.9 kg) (with metal case) | | | | Package Weight | 7.7 lb | | Box Dimensions (LxWxH) | 20.2 x 11.4 x 3.9" |
