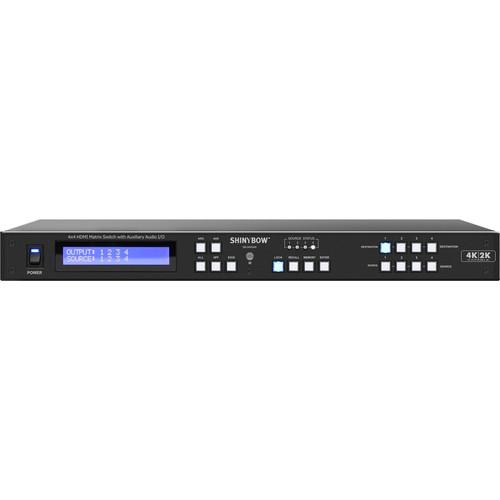

User Manual for Shinybow SB-5645AK 4 x 4 HDMI Matrix Switcher with Auxiliary Audio Click to enlarge the picture
Contents of the user manual for the Shinybow SB-5645AK 4 x 4 HDMI
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
 |
User manual for the Shinybow SB-5645AK 4 x 4 HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The Shinybow SB-5645AK 4 x 4 HDMI Matrix Switcher with Auxiliary Audio allows you to route 4 HDMI inputs to 4 HDMI outputs in different configurations. Any input can be routed to any output, to all outputs, or to a combination of outputs. A corresponding 3.5mm stereo mini audio input is available for each HDMI input, and a corresponding S/PDIF output is available for each HDMI output, allowing separate audio pass-through in addition to the HDMI embedded audio.
The switcher supports resolutions up to 4K, including 1080p/i, and 3D video, and up to 36-bit color depth. It also features 8 modes of EDID management. Routing selections can be controlled via the front panel, included remote control, RS-232 serial control, or TCP/IP control (not a web browser). An RS-232 Windows GUI interface is included for RS-232 control. An IR receiver supporting 984' of IR distance is included for remote control of the switcher from the room with the displays. A rack mount set is supplied for installing the switcher in a 1U 19" rack.
The HDMI connections support 5.1 and 7.1 channel surround sound audio, MAT (MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, Dolby Digital Plug/ex, DTS, DTSES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, DTS-EX, PCM, PCM2, and LPCM2. The S/PDIF outputs support LPCM-2CH audio. The switcher also supports Audio Return Channel, which is routed out of the S/PDIF outputs. - Key Features
-
- 4 HDMI 1.4a and 3.5mm stereo mini inputs
- 4 HDMI 1.4a and S/PDIF outputs
- Routes any input to any output, all outputs, or a combination of outputs
- Supports up to 4K resolution, 3D video, and 36-bit color depth

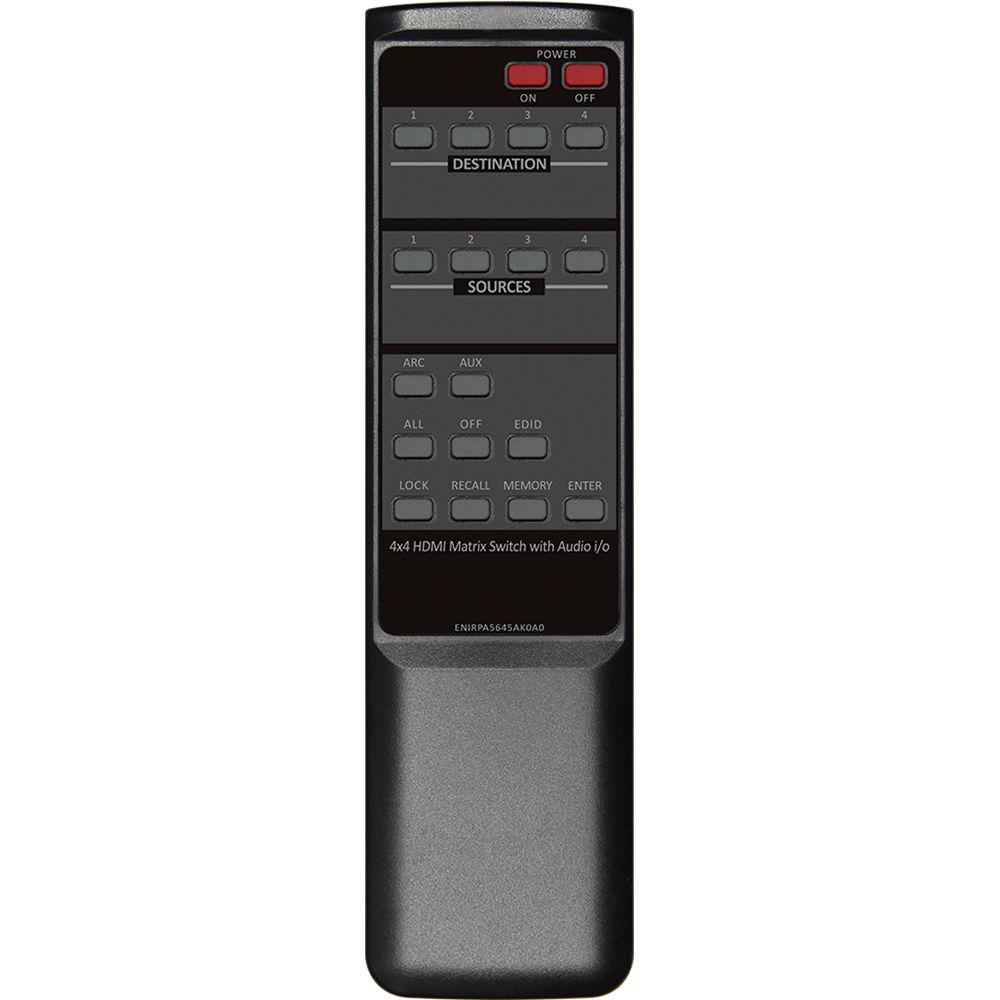

- Route selections via front panel, IR remote, RS-232, and TCP/IP (not a web browser)
- 8 modes of EDID management
- Multi-format HDMI audio support
- LPCM-2CH S/PDIF audio output
- Audio Return Channel (ARC) via S/PDIF output
- Automatic input/output status via front panel display
- Includes IR receiver supporting up to 984 ft IR distance
- 1U rack mountable using an included rack mount set
- Function Control Keys
-
- ARC
- AUX
- ALL
- OFF
- RECALL
- ENTER
- MEMORY
- LOCK
- EDID
- Destination button 1-4
- Source button 1-4
- EDID Modes
-
- FSS
- H24-3D
- H24-3D-M
- H36-3D
- H36-3D-M
- 4K2K-3D, PCM-2CH
- DVI-D 1920x1200-60Hz
- AUTO
- LEARNING mode
In the Box Shinybow SB-5645AK 4 x 4 HDMI Matrix Switcher with Auxiliary Audio Power Supply SB-100 IR Receiver Set with Assembly Plug Master Wireless IR Remote Control 19" Ear Mount Bracket CD with User Manual, Windows GUI, and ISP V1.0 Windows Driver RS-232 Cable 6 ft (2m) ISO Screws RS-232 V2.0 Protocol Instructions Ethernet V2.0 Protocol Instructions Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5645AK 4 x 4 HDMI Matrix Switcher with Auxiliary Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

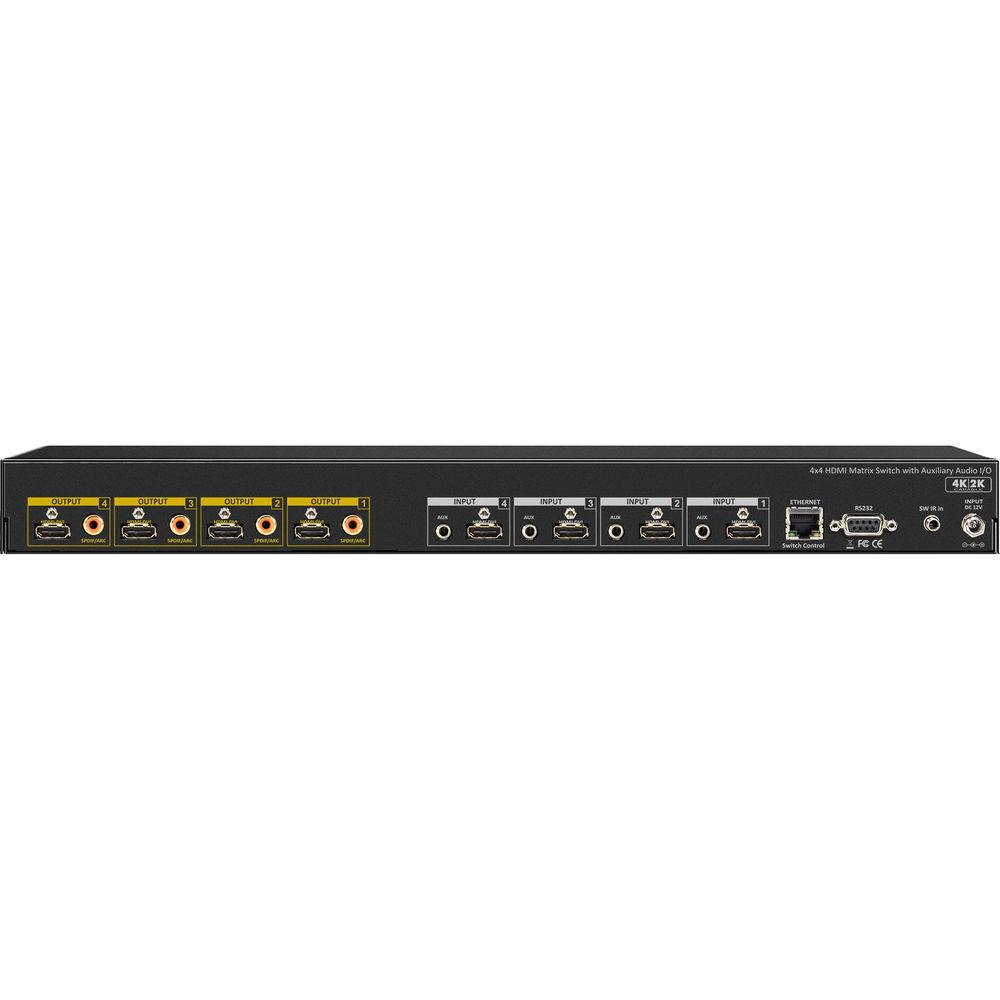

Technical parametersShinybow SB-5645AK Specs | Input | 4 x HDMI 1.4a, Type A, female
4 x 3.5 mm stereo mini audio jack | | Output | 4 x HDMI 1.4a, Type A, female
4 x S/PDIF | | Supported Resolutions & Formats | 4K, 2K, 1080p/i, 720p, 480p/i
3D video | | Supported Color Depth | Up to 36-bit | | Supported Audio | Via HDMI:
5.1 and 7.1 channel surround sound audio, MAT (MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, Dolby Digital Plug/ex, DTS, DTSES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, DTS-EX, PCM, PCM2, and LPCM2
Via S/PDIF:
LPCM-2CH audio | | HDCP Compliant | Yes | | CEC Compliant | HDCP 1.3 | | Video Bandwidth | Wide frequency range from 25 to 340 MHz | | Switch Controls | 1 x 3.5 mm IR External input
1 x RS-232 9-pin interface
1 x RJ45 (Ethernet)
1 x x Select & functions buttons on front panel
1 x IR remote control (included) | | IR Frequency | 38 kHz | | IR Distance | Up to 984 ft (300 m) | | Power Supply | 12 VDC, 3 A
Power Input: 100 - 240 VAC 50/60 Hz | | Operating Temperature | 32 - 100°F (0 - 38°C) | | Safety Approvals | CE, FCC, RoHS, REACH | | Rack Height | 1 U | | Dimensions | 19 x 9.9 x 1.7" (48 x 25 x 4 cm) | | Weight | 6.06 lb (2.75 kg) | | | | Package Weight | 11.5 lb | | Box Dimensions (LxWxH) | 20.3 x 11.6 x 3.8" |
