Shinybow SB-5659 1 x 16 HDMI

Search your instruction manual in PDF to download

User Manual for Shinybow SB-5659 1 x 16 HDMI Distribution Amplifier

Click to enlarge the picture
Shinybow SB-5659 1 x 16 HDMI Distribution Amplifier Contents of the user manual for the Shinybow SB-5659 1 x 16 HDMI
  • Product category: Distribution Amplifiers (DA's) Shinybow
  • Brand: Shinybow
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Shinybow Distribution Amplifiers (DA's)

Shinybow SB-5659 1 x 16 HDMI Distribution Amplifier Shinybow SB-5659 1 x 16 HDMI Distribution Amplifier
User manual for the Shinybow SB-5659 1 x 16 HDMI contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Shinybow product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!



Product description

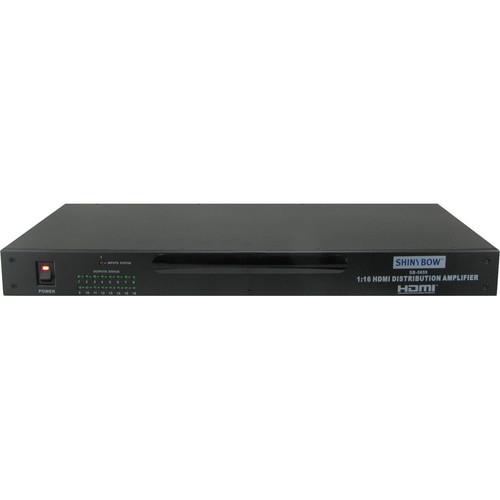

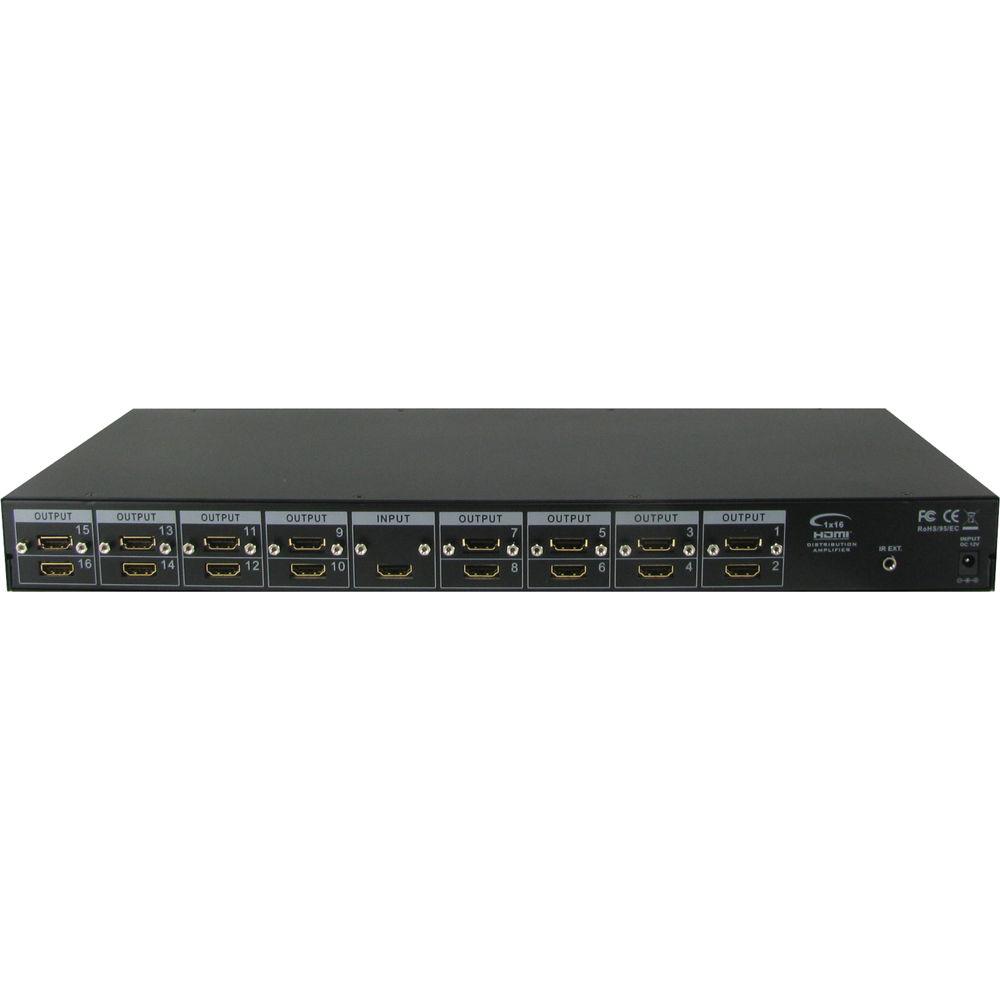

The Shinybow SB-5659 1 x 16 HDMI Distribution Amplifier allows users to connect any digital video source such as DVDs, satellites, cable boxes, and more with up to 16 digital HDMI displays. The SB-5659 Distribution Amplifier splits HDMI signals without signal loss for maintaining high resolutions.Providing 1 input and 16 outputs, the distributor supports data rates up to 2.25 Gb/s. It enables 1080p HDMI formats and UXGA DVI resolution to LCD and plasma display applications. Auto scan function software is built in to extend HDMI signals for longer distances.This distribution amplifier is certified as being fully HDMI and HDCP compliant. It is also RoHS, CE, and FCC compliant, and supports a high HDMI (HDCP) source to multiple HDMI (HDCP) displays, monitors, or projectors.
  • 1x16 HDMI distribution amplifier
  • I/O Signals: HDMI with HDCP digital video and digital audio (PCM)
  • HDMI and HDCP compliant
  • Support link speeds of up to 2.25 Gb/s (link clock rate of 225 MHz)
  • Support wide range of PC resolutions from XGA to UXGA 1600 x 1200 and HDTV / DTV resolutions 480i / 480p, 576i / 576p, 720p, 1080i, and 1080p
  • Compatible with all HDMI devices, PC monitors, plasma TV displays, and HDTVs
  • Support digital video TMDS formats in Deep Color 12 bits
  • Support color depth of up to 36 bits and ensures robust transmission of high-quality uncompressed video content along with uncompressed and setup boxes
  • Bi-direction color space conversion (SCS) between RGB and YCBCR color spaces with programmable coefficients
  • Auto-scan input and outputs status via LED display on front panel
  • Control by selection buttons on the front panel using IR Remote Controller (included)
  • IR Extender port with 1,000' (304.8m) long distance in the rear panel
  • Easy to install as either desktop or on the provided rack mount brackets (Rack mountable; 2U high with 19" rack ears)
  • Power supply 12VDC, universal type switch 100 to 230VAC, 50 / 60 Hz (included)
In the Box Shinybow SB-5659 1 x 16 HDMI Distribution Amplifier
  • 19" (1 RU) Rack Mount Bracket

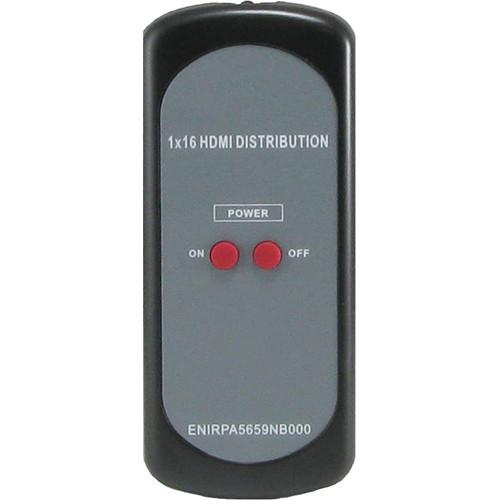

  • IR Remote Control
  • RS-232 Software (All Windows Operating Systems)
  • Power Supply (12VDC, Universal Type 50/60 Hz, 100 to 230 VAC)
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Shinybow SB-5659 1 x 16 HDMI Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Shinybow SB-5659 Specs

    Amplifier Type of Distributor: 1 x 16 HDMI distribution amplifier
    Signals Supported HDMI Standard, DVI, and HDCP compliant
    Video Supported 1080p HDMI formats and DVI UXGA 1600 x 1200 HD resolutions
    Audio Supported DTS-HD Master Audio, Dolby True - HD, and Dolby Digital Plus
    Signal Type of Signal: TMDS digital video, PCM digital audio
    Compliance Compliant with HDMI and HDCP
    HDTV HDTV Support: 1080p HDMI formats and UXGA 1600 x 1200 resolution
    Control Select buttons on the front panel, IR Remote, and IR Extender
    Data Rates 250 Mb/s to 2.25 Gb/s
    Pixel Clock Frequency 25 to 225 MHz
    Cable Distance HDMI Cable Distance: 30.00' (9.14 m) at 2.25 Gb/s
    Video Input Video Input Interface Supporting Digital Video Standards:RGB / YCBCR: 24 / 30 / 36 bitsYCBCR: 8 / 10 / 12 / 16 / 20 / 24 bitsDouble data rate interface for RGB/YCBCR: 12 / 15 / 18 bits
    IR Frequency 38 kHz
    Safety Approvals CE, FCC, RoHS (2002 / 95 / EC)
    Power Supply Output: 12 VDC 3 A, Input: 100 to 240 VAC, 50 to 60 Hz 1.2 A
    Dimensions 19.00 x 7.87 x 1.75" (48.26 x 19.99 x 4.44 cm)
    Weight 4.26 lb (1.93 kg)
    Package Weight 8.3 lb
    Box Dimensions (LxWxH) 20.2 x 11.4 x 3.8"
