Product description The Shinybow SB-5684K 8 x 4 UHD 4K HDMI Matrix Switcher allows you to route 8 HDMI inputs to 4 HDMI outputs with one preview output in different configurations. Any input can be routed to any output, to all outputs, or to a combination of outputs. All outputs feature a built-in video booster, which makes them capable of sending 1080p video over cable lengths of up to 98' and 4K2K video up to 66'.The switcher supports resolutions up to 4K, including 1080p/i, and 3D video, and up to 36-bit color depth. It also features 8 modes of EDID management (7 embedded and 1 external). Routing selections can be controlled via the front panel, included remote control, RS-232 serial control, or Ethernet (via a controller). An RS-232 Windows GUI interface is included for RS-232 control. An IR Extender Receiver Set supporting 984' of IR distance is included for remote control of the switcher from the room with the displays. A rackmount set is supplied for installing the switcher in a 1 RU 19" rack.The HDMI connections support 5.1 and 7.1 channel surround sound audio, MAT (MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, Dolby Digital Plug/ex, DTS, DTSES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, DTS-EX, PCM, PCM2, and LPCM2. - Four HDMI outputs with one preview output
- HDMI digital video with embedded HDCP, DVI formats, and CEC/HDCP 1.3 compliance
- Worldwide EDID control modes for HDMI full 4K2K (24/30 Hz) HD video resolutions
- Wide frequency range of 25 to 340 MHz
- Supports HDMI 4K2K and 1.4a 3D formats
- Supports a wide range of HD resolutions from PC XGA to WUXGA 1920 x 1200 and HDTV/DTV HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i/p, and 4K2K (24/30 Hz)
- Compatible with all HDMI source devices, PC monitors, plasma HD displays, HDTVs, and audio receivers or audio amplifiers
- Digital video TMDS formats resolutions up to 4K2K with 36-bit color depth

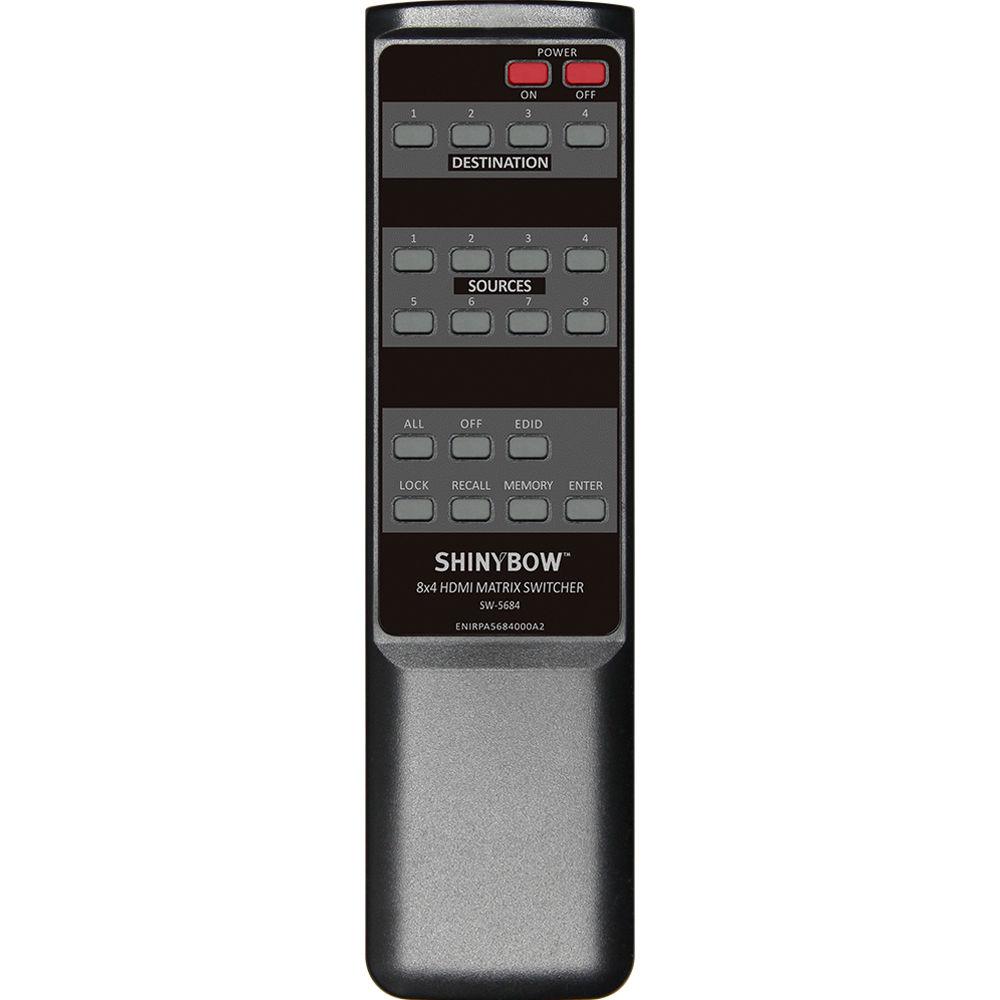

- IR wireless remote control
- Third-party RS-232 control (via simple ASCII)
- Supports seven worldwide control function keys

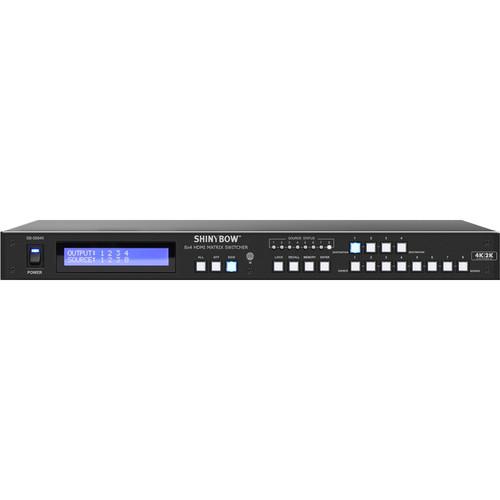

- Full Function Front Panel Controls: ALL / OFF / EDID / LOCK / RECALL / MEMORY / ENTER
- Embedded EDID Modes: FSS / H24-3D / H24-3D-M / H36-3D / H36-3D-M / 4K2K-3D / DVI-D 1920 x 1200 60 Hz
- External Modes: Learning mode-1 (Single Learning) and Learning mode-2 (Multiple Learning)
- Automatic scanning of input and output status via LCM display on the front panel
- Supports Universal 100 to 240 VAC / (50/60 Hz) power adapter
In the Box Shinybow SB-5684K 8 x 4 UHD 4K HDMI Matrix Switcher SW-5684K Master Wireless IR Remote Control 19" Rack Mount Ears/Brackets SB-100 IR Receiver Set with Assembly Plug sbudaeadvxtfrdsf RS-232 Cable (6.5') HDMI Locking Post Replacement Screws 100 to 240 VAC, 50/60 Hz Universal Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5684K 8 x 4 UHD 4K HDMI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

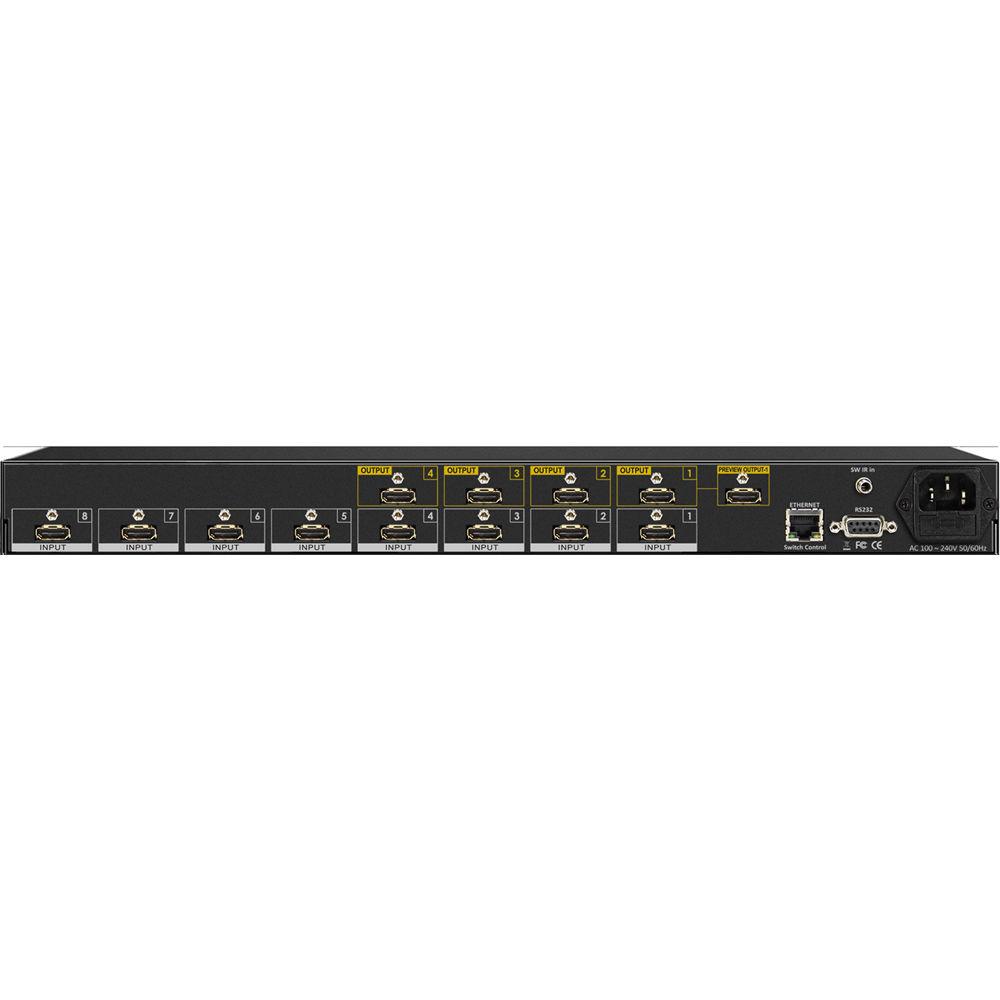

Technical parametersShinybow SB-5684K Specs | Input | 8 x HDMI (HDMI or DVI digital source)
HDMI Type A: SMD 19-pin female type | | Output | 4 x HDMI: With Booster output 1080p up to 98' (30 n) & 4K2K up to 66' (20 m)
HDMI Type A: SMD 19-pin female type | | HDMI Support | HDMI 4K2K at 30 Hz, 1080p at 60 Hz, H36-bit deep color, 3D of HDMI V1.4 formats | | HDCP/CEC Support | HDCP 1.3 compliant, CEC compliant | | Video Bandwidth | Wide frequency 25 to 340 MHz | | Digital Video Support | HD: 480i/480p/720p/1080i/1080p and 4K2K up to 36-bit deep color | | Supported Audio | 5.1 and 7.1 channel surround sound audio, MAT (MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, Dolby Digital Plug/ex, DTS, DTSES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, DTS-EX, PCM, PCM2, and LPCM2 | | Preview Output | 1 (same as output #1) | | GUI | Windows based GUI control via RS-232 interface (2000/XP/Windows 7 32-bit/Windows 7 64-bit/Windows 8) | | Switch Controls | 1 x Select & Function buttons on front panel (data status via LCM panel)
1 x IR remote controller (included)
1 x 3.5 mm IR external input
1 x RS-232 series interface (switch control)
1 x Ethernet series interface (switch control) | | Source Selection | Input status LEDs indicates presence of a live signal | | Function Keys | 19
1. ALL, 2. OFF, 3. RECALL, 4. ENTER, 5. MEMORY, 6. LOCK, 7. EDID, 8. Destination button 1 thru 4, 9. Source button 1 thru 8 | | EDID Modes | Select Embedded EDID Modes:
Mode 1: FSS; Mode 2: H24-3D; Mode 3: H24-3D-M; Mode 4: H36-3D; Mode 5: H36-3D-M; Mode 6: 4K2K-3D, PCM-2CH; Mode 7: DVI-D 1920 x 1200 60 Hz | | Infrared Frequency | 38 kHz | | IR Distance | Up to 984' (300 m) | | Booster | Video Booster: HDMI output 1080p lengths up to 98' (30 m) / 4K2K up to 66' (20 m) | | Power | 100 to 240 VAC 50/60 Hz
120 VAC, 0.5 A, 60 W
220 VAC, 0.27 A, 60 W | | Operating Temperature | 32 to 100°F (0 to 38°C) | | Safety Approvals | CE, FCC, RoHS, REACH | | Rack Height | 1 RU | | Dimensions (L x W x H) | 17.5 x 12 x 1.75" (444.5 x 304.8 x 44.45 mm) | | Weight | 7.7 lb (3.5 kg) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 21.0 x 13.8 x 6.9" |
