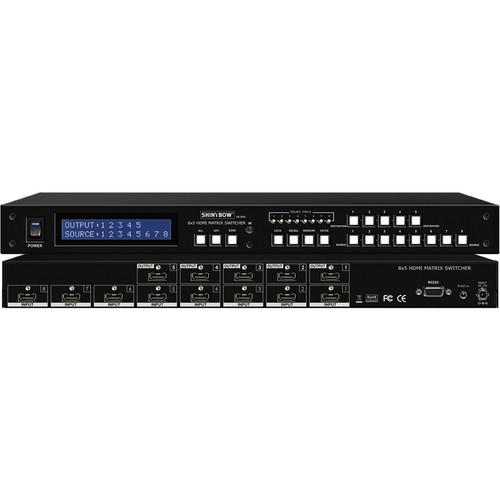

User Manual for Shinybow SB-5685LCM 8x5 HDMI Matrix Switcher with Liquid Crystal Display Module Click to enlarge the picture
Contents of the user manual for the Shinybow SB-5685LCM 8x5 HDMI Matrix Switcher
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
|
User manual for the Shinybow SB-5685LCM 8x5 HDMI Matrix Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The Shinybow SB-5685LCM 8x5 HDMI Matrix Switcher with Liquid Crystal Display Module supports data rates up to 6.75 Gb/s, enabling transfer of 1080p HDMI formats and UXGA/WUXGA/DVI resolution to any HD display. High-definition digital signals can be selected and distributed to any 5 outputs simultaneously.
The switcher is certified as being fully HDMI and HDCP compliant, with RoHS, CE, FCC certification. It supports high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers. The EDID can be selected between 7 different modes. Control is provided via front panel push buttons, IR remote, or via RS-232. An RS-232 Windows GUI interface is provided for matrix routing. - Supports 8 HDMI digital devices matrix switched to 5 HDMI HDTVs
- HDMI 1.3a, HDMI 1.3c (CTS), DVI 1.0 and HDCP compliant
- HDMI cable supports transmission distance of up to 49.2' (15m) 1
Please Note: Transmission distance depends on the HDMI cable quality. close - Supports link speeds of up to 6.75 Gb/s (link clock rate of 225 MHz)
- Support wide range of PC resolutions from XGA to WUXGA/DVI 1920 x 1200 and HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i & 1080p
- Compatible with all HDMI devices, PC monitors, Plasma TVs, and HDTVs
- Support Digital Video TMDS formats in deep color 12-bit
- Supports DTS-HD Master Audio, Dolby True-HD, & Dolby Digital Plus
- Various User Interface Control Options: ?Attached Windows-based control for desktop or NB control via RS-232 port ?Manual controlled by Front Panel button ?IR remote control
- Supports 3D video format in HDMI 1.4 frequency 223 MHz
- Supports 19" rack mounting via rack mount ears
- Automatically scans input & output and displays status via LED on front panel
- Supports desktop mounting via ear mounts and 19" rack mountable panel
In the Box Shinybow SB-5685LCM 8x5 HDMI Matrix Switcher with Liquid Crystal Display Module Limited 3-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5685LCM 8x5 HDMI Matrix Switcher with Liquid Crystal Display Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5685LCM Specs | Type | 8 in to 5 out, matrix HDMI 8 x 5 switcher | | Inputs | 8x HDMI (Digital video+Digital Audio) | | Outputs | 5x HDMI+1x HDMI Preview Output (Digital video+Digital Audio) | | Input Signals | Video (TMDS) 0.5 to 1.0 Vpp, DDC 5 Vpp | | Signal | Support: HDMI Standard, DVI, and HDCP compliant | | Video Supported | 1080p HDMI formats and DVI WUXGA 1920 x 1200 HD resolutions | | Audio Supported | DTS-HD Master Audio, Dolby True -HD & Dolby Digital Plus | | Interface | Video Input
RGB/YCBCR: 24/30/36-bit
YCBCR: 8/10/12/16/20/24-bit
Double Data Rate Interface for RGB/YCBCR: 12/15/18-bit | | Controls | IR, IR EXT, select buttons on the front panel, & RS-232 | | Data Rates | 250 Mb/s to 2.25 Gb/s | | IR Extender | 984' (300 m) maximum | | Infrared | 38 kHz | | Safety Approvals | CE, FCC, RoHS (2002/95/EC) | | Power Supply | 12 VDC / 2 A (consumption 1650 mA maximum)
Use universal switch type 50/60 Hz,100 to 230 VAC | | Dimension L x W x H | 19.00 x 7.87 x 1.75" (482 x 200 x 44 mm) | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 20.5 x 11.5 x 4.0" |
