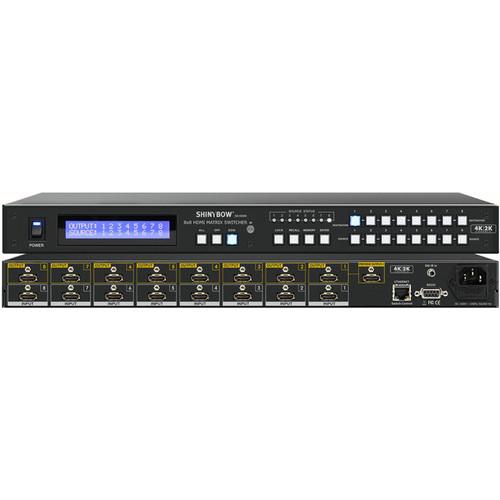

User Manual for Shinybow SB-5688Kp 8x8 HDMI Matrix Routing Switcher Click to enlarge the picture
Contents of the user manual for the Shinybow SB-5688Kp 8x8 HDMI Matrix Routing
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
|
User manual for the Shinybow SB-5688Kp 8x8 HDMI Matrix Routing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The SB-5688Kp 8 x 8 HDMI Matrix Routing Switch from Shinybow is used to transmit video with embedded audio via eight HDMI inputs and eight HDMI outputs. One preview out enables you to confirm view output # 1 before completing a switch. Supporting up to 4K/2K @ 30 Hz, DVI 1.0, and 3D formats, the SB-5688Kp is fully CEC and HDCP 1.3–compliant. With this matrix switcher, any of the eight HDMI input signals can be selected and distributed to any of the eight outputs. Use the SB-5688Kp for transmitting high-resolution HDMI sources to HDMI displays, monitors, projectors, or audio receivers in one-to-many or many-to-one configurations. Seven selectable EDID modes provide optimal display performance and the wide 25-340 MHz frequency range prevents signal degradation. A built-in booster provides each HDMI output with a maximum cable length of up to 98' for 1080p and up to 66' for 4K/2K. Control options are provided via front panel push buttons, IR remote, TCP/IP or via an RS-232 Windows-based GUI interface. The SB-5688Kp includes an IR extender for control up to a maximum distance of 984'. A two-line front panel LCD display indicates input and output-source status. Features - Matrix routing switcher with eight HDMI inputs, eight HDMI outputs, and one preview output (same as output #1)
- Supports a wide range of resolutions up to 4K/30 HD video with embedded audio
- A wide 25-340 MHz frequency range minimizes any potential signal degradation
- The built-in booster enables each HDMI output to support cable lengths of up to 98' for 1080p and up to 66' in 4K/2K
- Select from seven EDID modes for optimal display performance
- Control via front panel buttons, IR remote control with extender, TCP/IP or an RS-232 Windows-based GUI
- A front panel two-line LED display window indicates input and output status
- CEC and HDCP 1.3 compliant
In the Box Shinybow SB-5688Kp 8x8 HDMI Matrix Routing Switcher SW-HD88K Remote Control 2U-440L Rackmount Kit SB-100 IR Extender Receiver Set CD: Windows GUI, Windows Driver RS-232 Cable (6.5') HDMI Locking Post Replacement Screws Power Supply (100~240 VAC, 50/60 Hz) Limited 3-Year Warranty Note: IMPORTANT WARRANTY INFORMATION: If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws without installing the HDMI Locking Post replacement screws will void your warranty. Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5688Kp 8x8 HDMI Matrix Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5688KP Specs | Type | HDMI Matrix Switcher:
8 inputs to 8 outputs
1 x preview output | | HDMI Support | 4K, 2K, 1080p/60, HDMI V1.4 3D
Up to 36-bit deep color | | HDCP Compliance | HDCP 1.3 compliant
CEC compliant | | Video Bandwidth | Frequency Range: 25~340 MHz | | Digital Video | 1080i, 720p, 480i, 480p
Up to 36-bit deep color | | Video Inputs | 8 x HDMI (HDMI or DVI digital source) | | Video Outputs | HDMI: (with booster)
1080p up to 98' (30 m)
4K/2K up to 66' (20 m) | | Audio Support | Multi Audio Formats 5.1, 7.1, MAT (MLP),
Dolby Digital, Dolby TrueHD, Dolby Digital Plus,
DTS, DTS-ES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master (PCM-2CH) | | Preview Output | 1 x HDMI (same as output # 1) | | IR Frequency | 38 kHz | | IR Extender | Maximum Distance: 984' (300 m) | | HDMI I/O Connectors | Type-A, SMD 19-pin female | | Operational Temperature | 32 to 100°F (0 to 38°C) | | Power Supply | 100~240 VAC, 50/60 Hz (120 VAC, 0.5A, 60W; 220 VAC, 0.27 A, 60W) | | Rack Mount | 1 RU high, 19" rackmount | | Dimensions (W x D x H) | 17.5 x 9.875 x 1.75" (445 x 251 x 45 mm) | | Weight | 8.1 lb (3.65 kg) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 21.0 x 13.8 x 6.6" |
