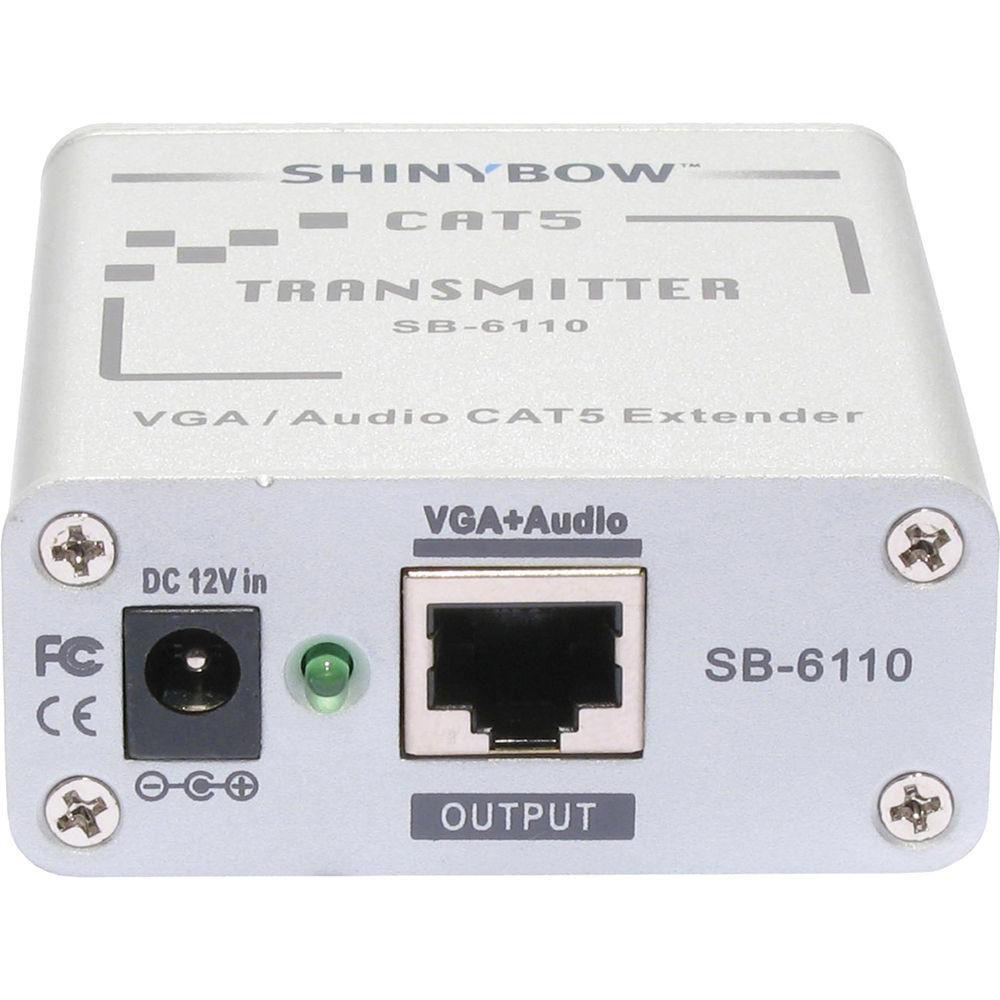

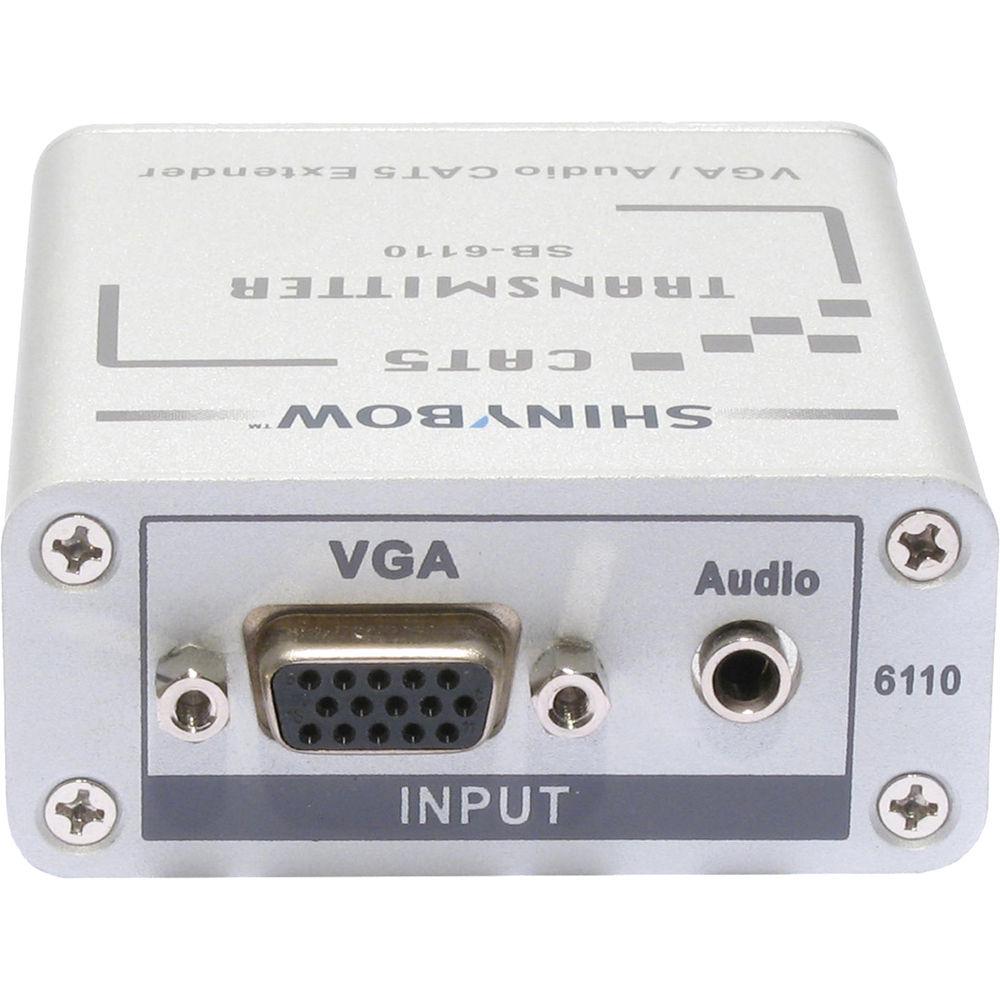

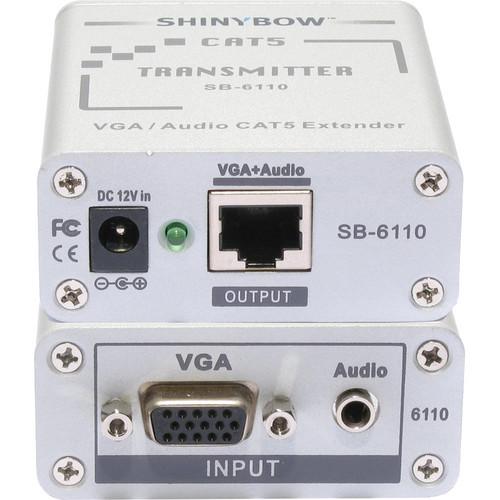

Product description The Shinybow SB-6110T CAT5 VGA RGBHV/HDTV Stereo Audio Transmitter is designed to extend video signals up to 1000’ (300 m) using inexpensive CAT5/CAT6 UTP cable. A video extender consists of both a transmitter and receiver. The transmitter connects to your local video source and allows you to extend to a single or multiple remote receivers. CAT5 VGA video splitter extender via CAT5 is the ideal solution for applications to display the same image on multiple remote locations. This AV splitter extender is ideal for restaurants, bars, clubs, and other HDTV environments for video broadcasting, remote monitoring, presentations and advertising. Note: Please note VGA Receivers are not included and must be purchased separately along with the Splitter/Extender for correct functionality. - VGA RGBHV Video and Audio CAT5 Transmitter
- Triple high speed differential driver
- 225 Mhz, -3 dB Large Signal Bandwidth
- 450 Mhz, -3 dB Small Signal Bandwidth
- Supported Resolutions:
VGA (640 x 480) up to 1000' (304.8 m)
SVGA (800 x 600) up to 600' (182.88 m)
XGA (1024 x 768) up to 450' (137.16 m)
UXGA (1600 x 1200) up to 300' (91.44 m)
WUXGA (1900 x 1200) up to 100' (30.48) - Category UTP cable maximum length to 1000' (304.8 m)
- Brushed aluminum case with mounting brackets
- 1x VGA (15HD) Output with stereo audio
- Lower power consumption, full load under 300 mA
- Tint and Brightness control
In the Box Shinybow SB-6110T CAT5 VGA RGBHV/HDTV Stereo Audio Transmitter Surface Mount Bracket Users Guide AC/DC Adapter: 12 VDC, 300 mA 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-6110T CAT5 VGA RGBHV HDTV Stereo Audio Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-6110T Specs | Video Input Level | 1.45 Vpp maximum | | Distortion | -80 dB total harmonic @ 1 MHz: Rl = 100 Ω | | Video Bandwidth | 450 MHz, -3 dB | | Slew Rate | 1600 V/µs | | Housing | Aluminum | | Size | Switcher Size: 3 x 2.75 x 1" (76.2 x 69.85 25.4 mm) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 9.3 x 7.0 x 1.5" |
