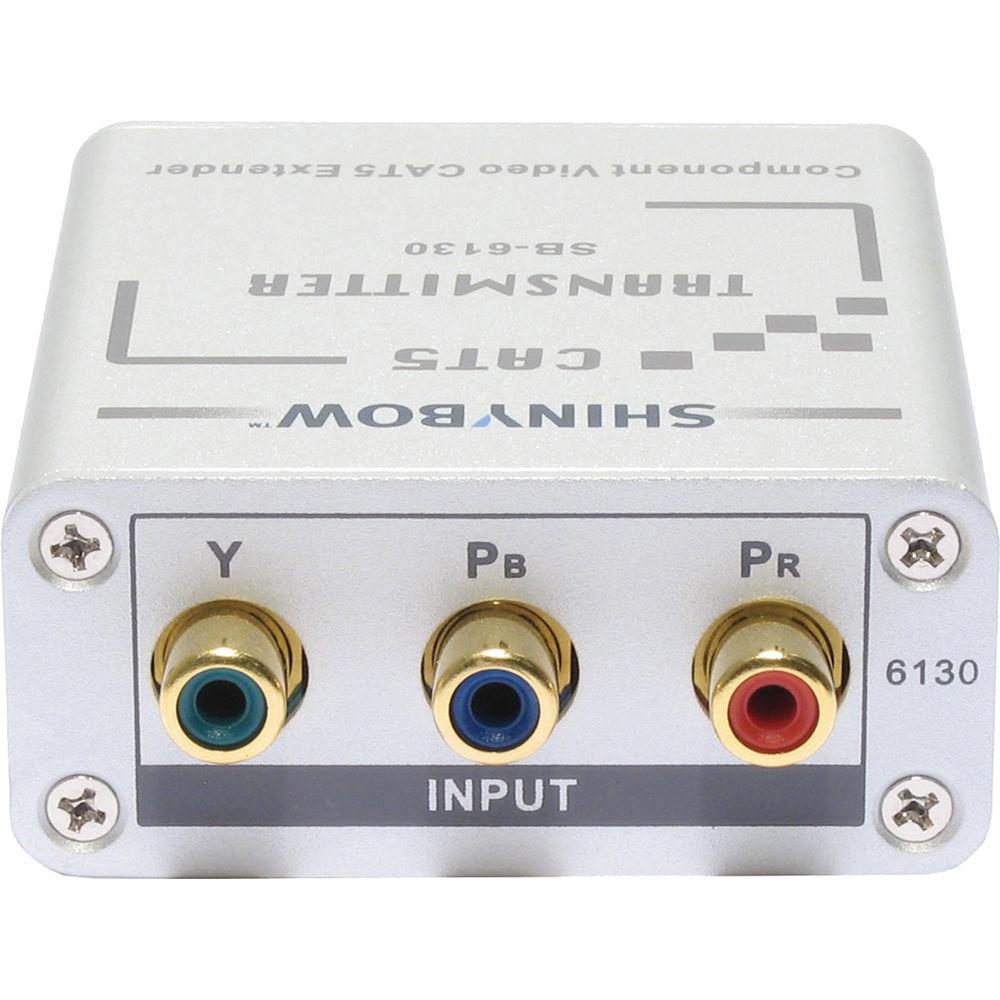

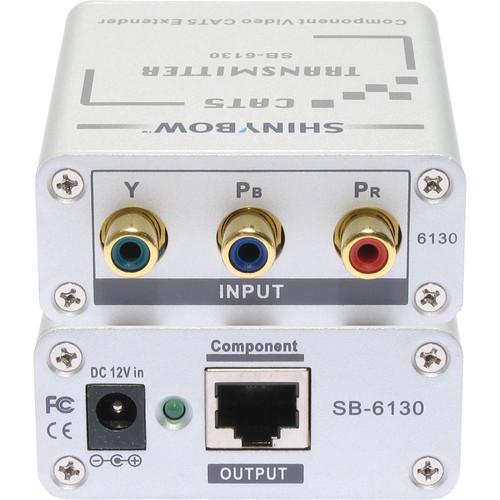

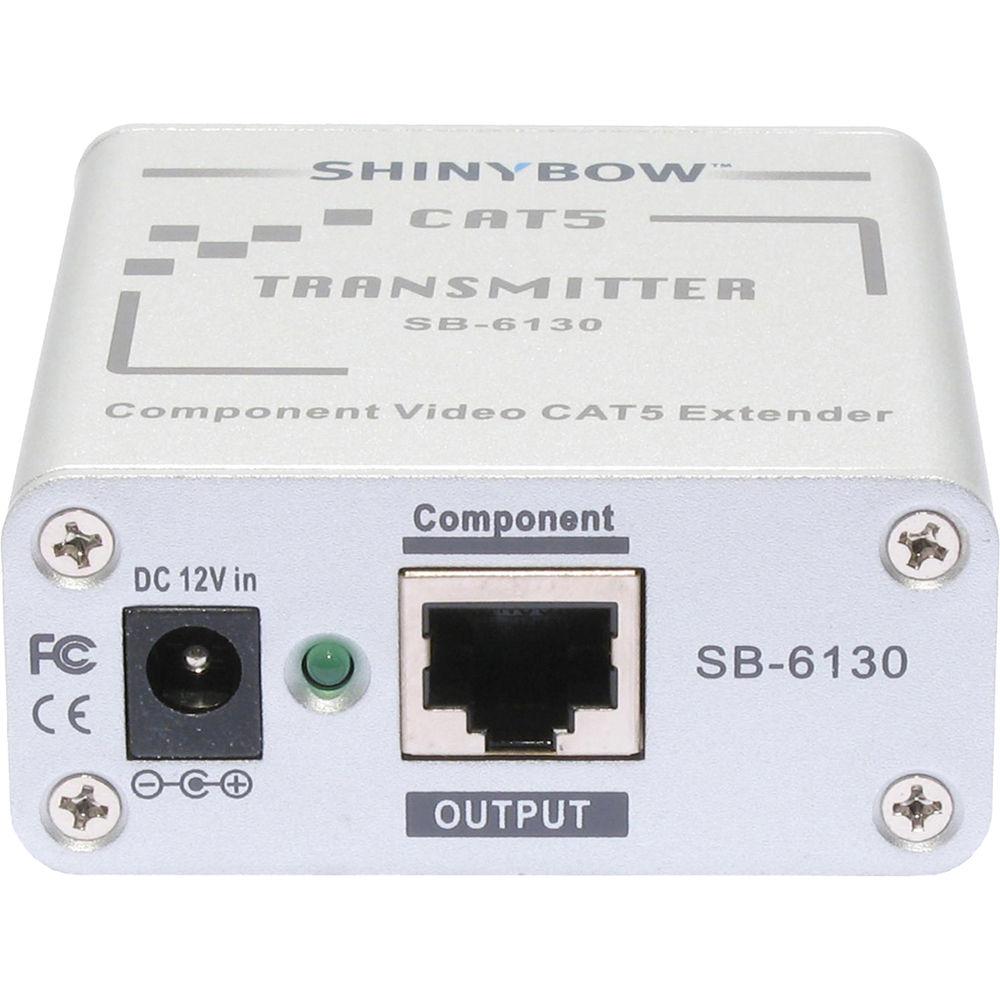

Product description The Shinybow SB-6130T CAT5 Component Video RGB/YPbPr/HDTV Transmitter extends video signals up to 328’ (100m) using inexpensive CAT5/CAT6 UTP cable. A video extender consists of both a transmitter and receiver. The receiver connects to your local video source and allows you to extend to a single or multiple remote receivers. CAT5 component video splitter extender via CAT5 is the ideal solution for applications to display the same image on multiple remote locations. These AV splitter extenders are commonly used at restaurants, bars, clubs and other HDTV environments for video broadcasting, remote monitoring, presentations and advertising. Note: Component Receivers are not included and must be purchased separately along with the Splitter/Extender for correct functionality. - Inputs via gold plated, color coded RCA Phono sockets
- Category UTP cable maximum length to 328' (100m)
- Easy to install and highly reliable
- Brushed aluminum case with mounting brackets
- Supports resolutions up to 1080p
- For use in conjunction with the CAT5 Component receivers
- Tint and Brightness control
In the Box Shinybow SB-6130T CAT5 Component Video RGB/YPbPr/HDTV Transmitter Surface Mount Bracket Users Guide AC/DC Adapter: 12 VDC, 300 mA 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-6130T CAT5 Component Video RGB YPbPr HDTV Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-6130T Specs | Type | CAT5: Component Video Over CAT5 Transmitter (Tx) | | Signals | Component Video (YPBPR/RGB) Via 3x RCA connectors | | Connection | RJ-45 | | Video Bandwidth | 225 MHz (-3 dB), 450 MHz (-3 dB) | | Output Balance Error | -60 dB @ 50 MHz | | Isolation | Between Amplifiers: 80 dB @ 10 MHz | | Color Adjustment | TINT and BRIGHTNESS | | Mounting | Surface with included brackets. Rack Mount optional with SB-6066 | | Resolutions | HD: 480i, 480, 720p, 1080i and 1080p | | Distance | CAT5 Extend: 328' (100 m) maximum | | Safety Approvals | CE, FCC, VCCI, RoHS (2002/95/EC) | | Dimensions | 2.60 x 2.75 x 1.2" (70 x 66 x 29.1 mm) | | Power Supply | 12 VDC / 0.42 A | | Audio Impedance | 10 Ω | | Audio Frequency Response | 0 Hz to 20 KHz, +/-1 dB | | Supported Resolutions | VGA (640 x 480)
SVGA (800 x 600)
XGA (1024 x 768)
UXGA (1600 x 1200)
WUXGA (1900 x 1200) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 9.4 x 7.1 x 1.5" |
