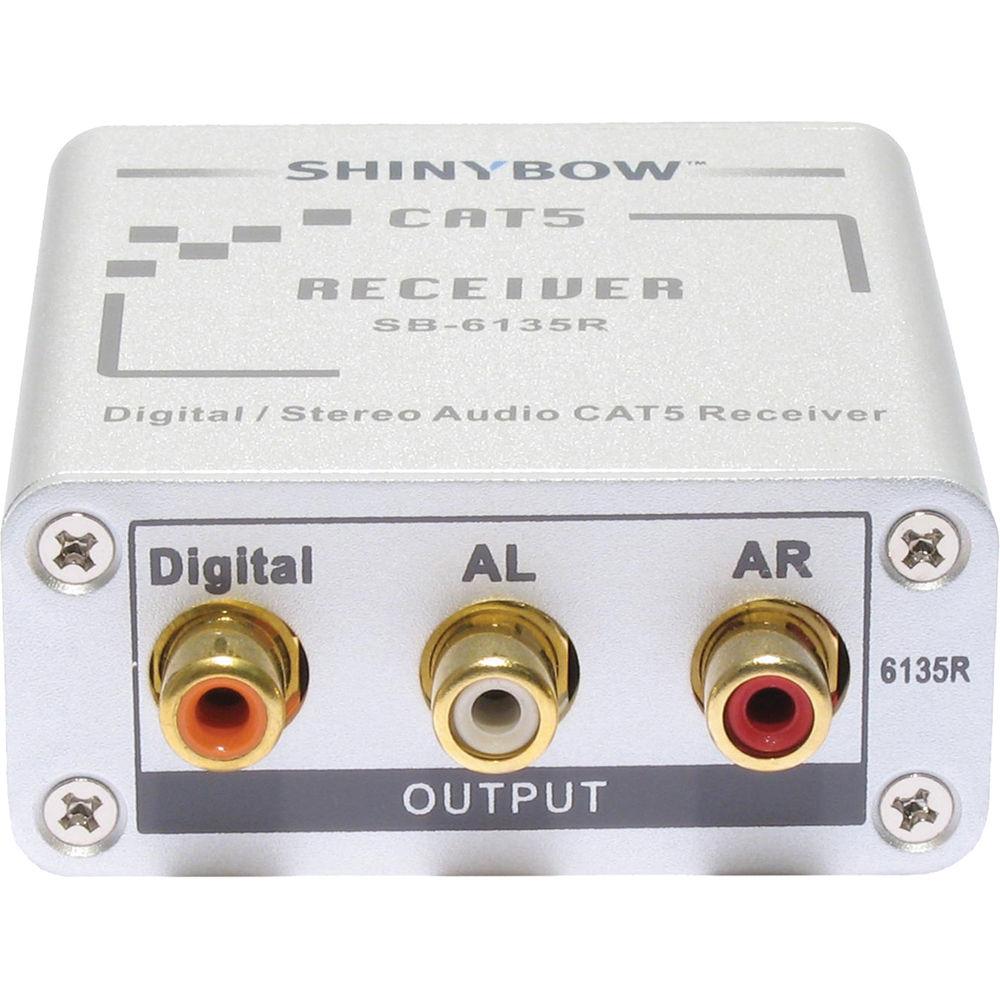

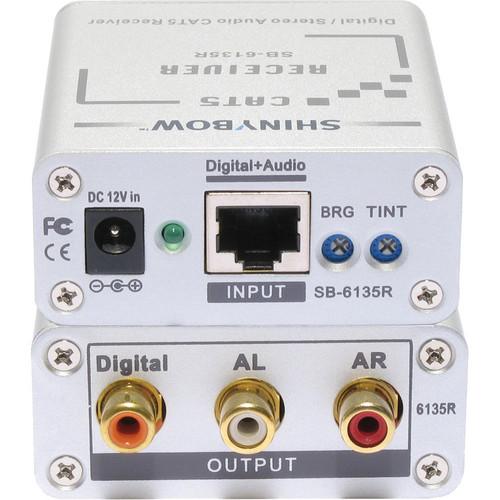

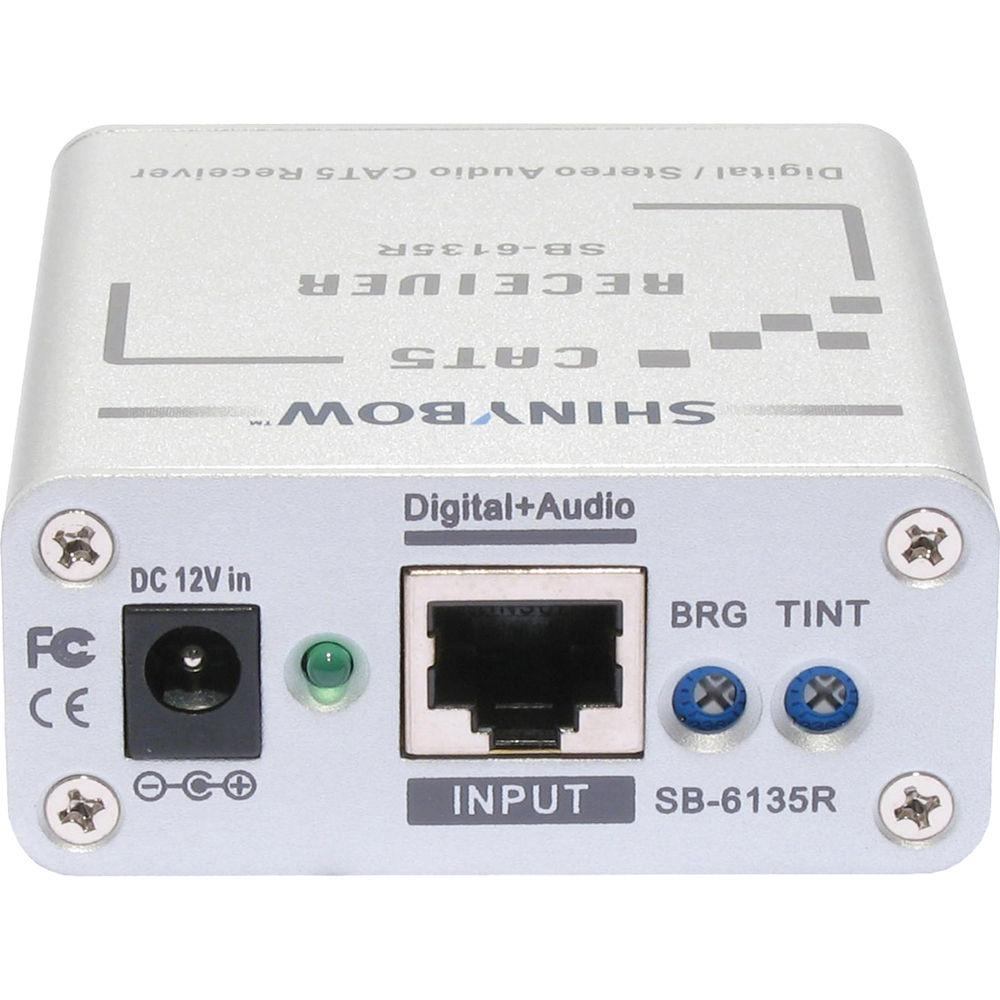

Product description The Shinybow SB-6135R CAT5 Composite Video, Digital & Stereo Audio Receiver extends video signals up to 328’ (100m) using an inexpensive CAT5/CAT6 UTP cable. The receiver connects to your local video source and allows you to extend to a single or multiple remote transmitter (sold separately). The CAT5 composite video splitter extender via CAT5 is the ideal solution for applications that require display of the same image on multiple remote locations. The common applications of this receiver include restaurants, bars, clubs, and other HDTV environments for video broadcasting such as remote monitoring, presentations, and advertising. - Triple high speed differential driver
- Category UTP cable max length to 328' (100m)
- Brushed aluminum case with mounting brackets
- 1x composite video and stereo audio or digital audio output
- Lower power consumption, full load under 300 mA
- Tint and brightness control
In the Box Shinybow SB-6135R CAT5 Composite Video, Digital & Stereo Audio Receiver Surface Mount Bracket Users Guide AC/DC Adapter (12 VDC, 300 mA) 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-6135R CAT5 Composite Video, Digital & Stereo Audio Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-6135R Specs | Video Input Level | 1.45 Vpp maximum | | Distortion | -80 dB total harmonic @ 1 MHz: Rl = 100 Ω | | Video Bandwidth | 450 MHz, -3 dB | | Slew Rate | 1600 V/Zµs | | Housing | Aluminum | | Power Supply | 12 VDC, 300 mA | | Size | 3 x 2.75 x 1" (76.2 x 69.85 x 25.4 mm) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 9.4 x 7.2 x 1.4" |
