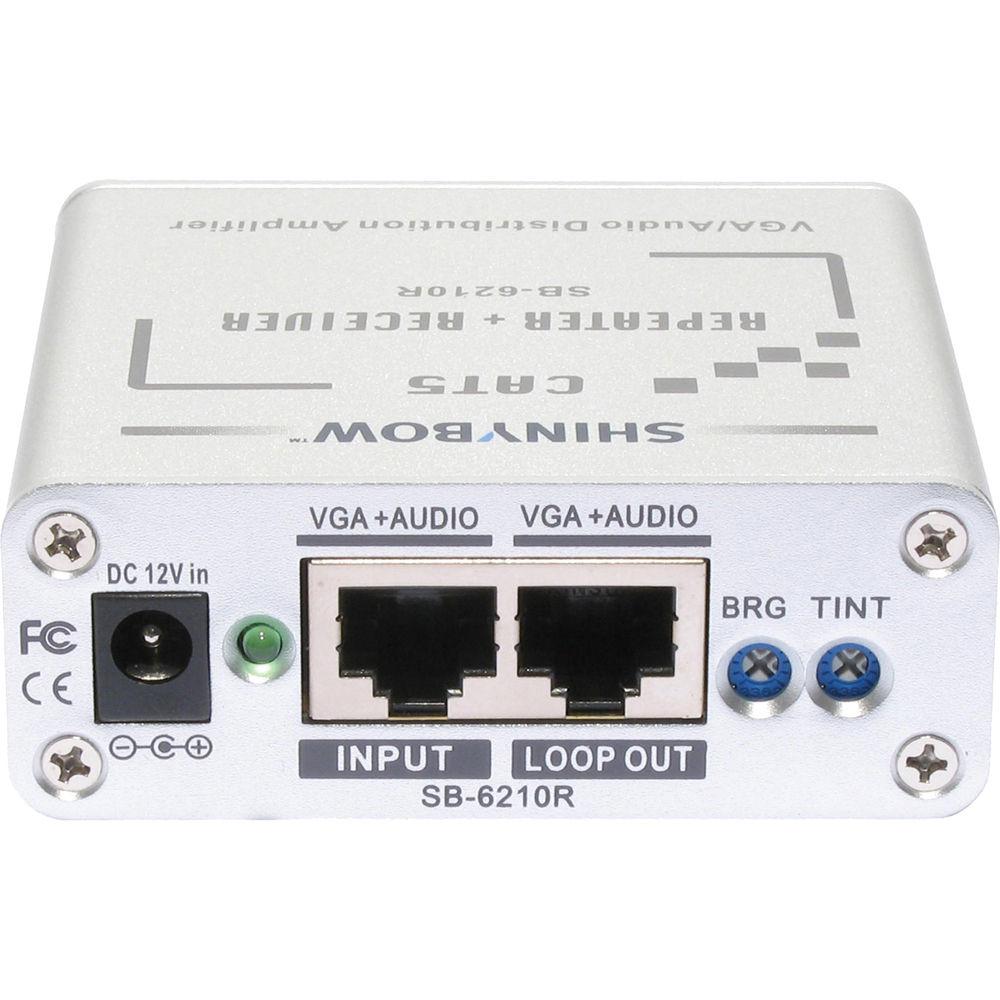

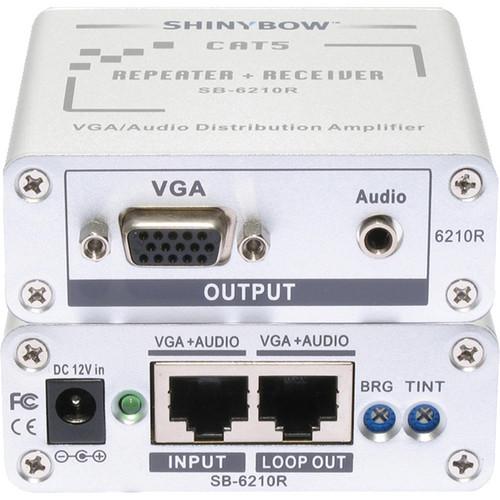

Product description The Shinybow SB-6210R CAT5/VGA RGBHV/HDTV Stereo Audio Repeater & Receiver extends video signals up to 1,000’ (300 m) using an inexpensive CAT5/CAT6 UTP cable. The transmitter (sold separately) connects to your local video source and allows you to extend to single or multiple remote receivers. The common applications of this device include restaurants, bars, clubs, and other HDTV environments for video broadcasting such as remote monitoring, presentations, and advertisements. - Triple high-speed differential driver
- 225 Mhz, -3 dB large signal bandwidth
- 450 Mhz, -3 dB small signal bandwidth
- Category UTP cable maximum length to 1,000' (304.8 m)
- Brushed aluminum case with mounting brackets

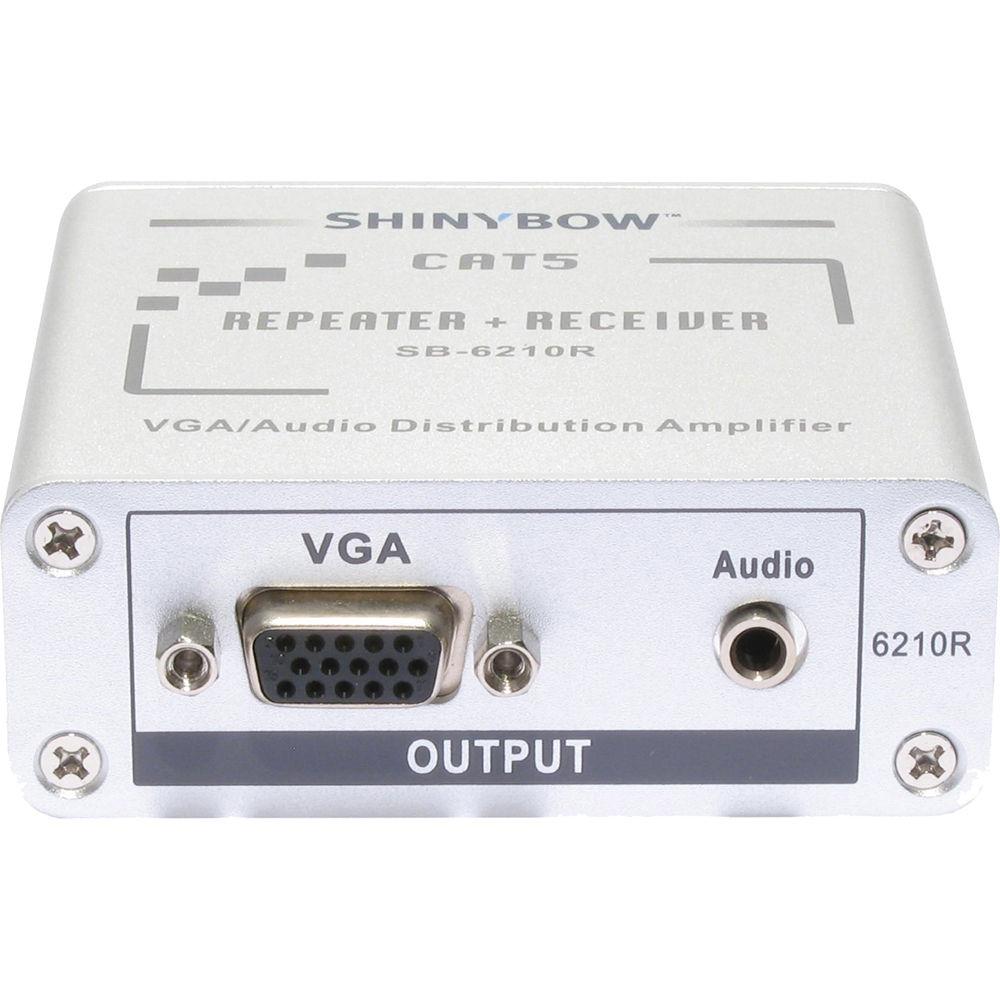

- 1x VGA (15HD) output with stereo audio
- Lower power consumption, full load under 300 mA
- Tint and brightness control
In the Box Shinybow SB-6210R CAT5/VGA RGBHV/HDTV Stereo Audio Repeater & Receiver Surface Mount Bracket Users Guide AC/DC Adapter: 12 VDC, 300 mA 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-6210R CAT5 VGA RGBHV HDTV Stereo Audio Repeater & Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-6210R Specs | Supported Resolutions | VGA (640 x 480) up to 1000' (304.8 m), SVGA (800 x 600) up to 600' (182.88 m), XGA (1,024 x 768) up to 450' (137.16 m), UXGA (1,600 x 1200) up to 300' (91.44 m), WUXGA (1,900 x 1200) up to 100' (30.48 m) | | Video Input Level | 1.45 Vpp maximum | | Distortion | -80 dB total harmonic @ 1 MHz: Rl = 100 Ω | | Video Bandwidth | 450 MHz, -3 dB | | Slew Rate | 1,600 V/Zµs | | Housing | Aluminum | | Size | 3 x 2.75 x 1" (76.2 x 69.85 25.4 mm) | | Power Supply | 12 VDC, 300 mA | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 9.3 x 7.1 x 1.5" |
