User Manual for Shinybow SB-6320R HDMI 100m Extender HDBaseT Receiver Click to enlarge the picture
Contents of the user manual for the Shinybow SB-6320R HDMI 100m Extender HDBaseT
- Product category: Video Extenders & Repeaters Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Video Extenders & Repeaters
 |
User manual for the Shinybow SB-6320R HDMI 100m Extender HDBaseT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|

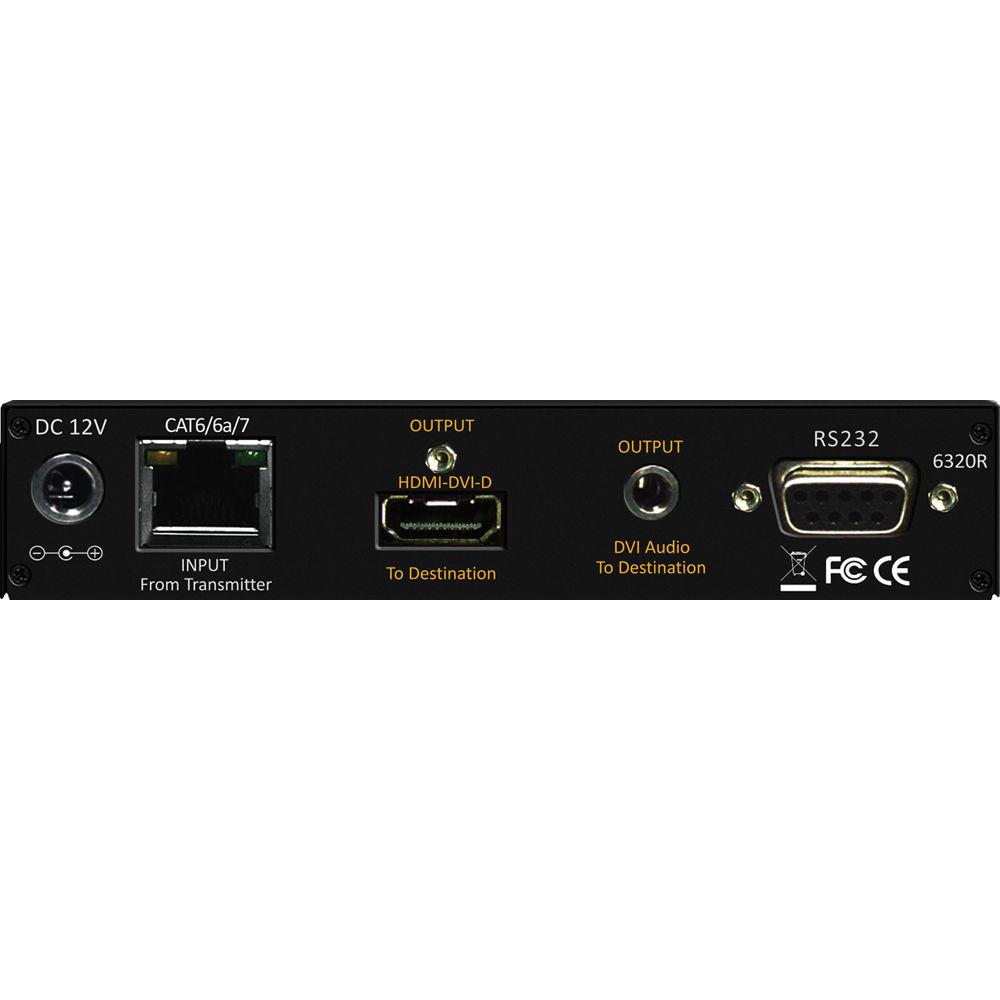

Product description The SB-6320R HDMI 100m Extender HDBaseT Receiver by Shinybow is an HDMI Version 1.4 extender that supports audio formats such as Dolby True HD, DTS-master and all seven types of 3D. This receiver is compatible with CAT5/5e/6/6a/7 and is designed to support full 3D at 1080p at a distance of up to 330'. The SB-6320R receiver supports high definition video and audio as well as bi-directional IR, RS-232 and Ethernet.

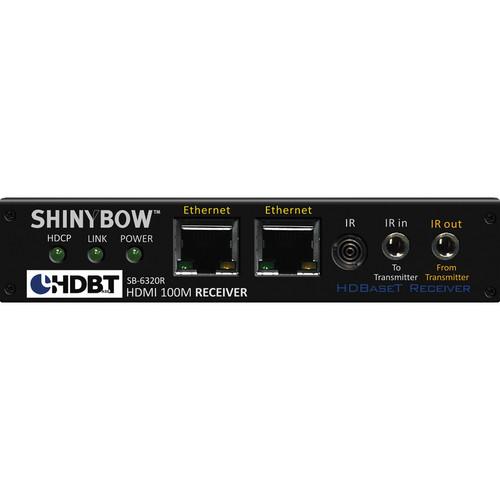

The front panel LED status display indicates a valid HDMI source, the connection between the transmitter and receiver and power. This receiver also supports DVI TMDS 1920x1200 format with the use of an external adapter (not included). The audio output jack can provide audio from your DVI audio input or extract the audio from your HDMI signal. It comes with built-in mounting tabs for surface mounting. - HDMI over CAT5/5e/6/6a/7 receiver
- HDMI digital video/audio and video TMDS format with HDCP compliant and supports HDBaseT specifications
- Supports audio formats such as DTS-HD Master Audio, Dolby True-HD & Dolby Digital Plus
- Supports link via the CAT5/5e/6/6a/7 UTP/STP cable
- Supports link speeds of up to 3.4Gbps
- Supports digital RGB 36-bits HDMI TMDS format deep color
- DVI TMDS 1920 x 1200 format
- Supports HD (high-definition) full range resolution of 480p, 720p 1080i/1080p
- Transmitter supports IR EXT and RS-232 control display
- Extended long distance CAT6/7 330', CAT5e 200', CAT5 100'
- DC power input with low power consumption (full load 480mA)
- Power supply using universal power switch 12VDC/1250mA

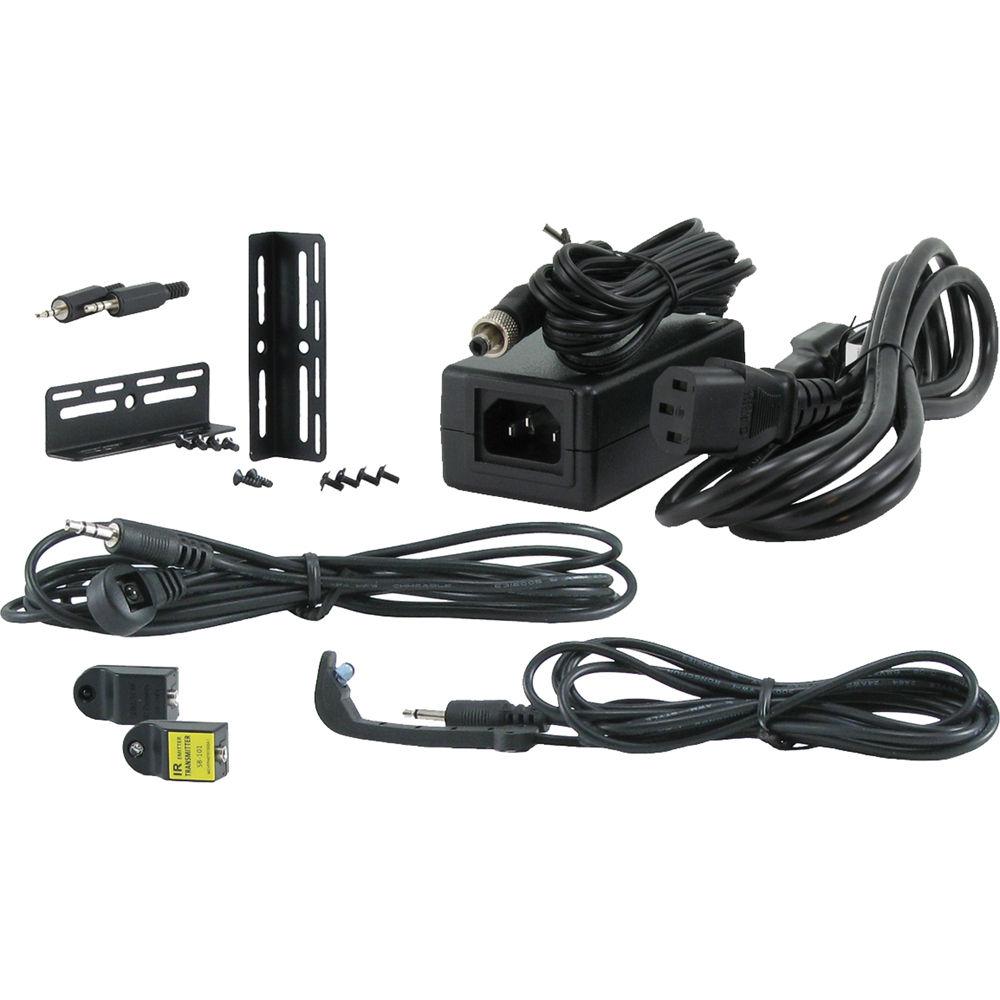

In the Box Shinybow SB-6320R HDMI 100m Extender HDBaseT Receiver SB-100 Set (IR Transmitter Extender Assembly Plug) SB-100C Cable (IR Receiver Cable) SB-101 Set (IR Transmitter Extender Assembly Plug) SB-101C Cable (IR Transmitter Cable) AC/DC Adapter: 12 VDC (Universal Power Switch 50/60Hz,100-230 VAC) Limited 3-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-6320R HDMI 100m Extender HDBaseT Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-6320R Specs | Extender | HDBaseT transmitter for HDMI signal over category UTP/STP cable | | Input Signals | HDMI with digital video(TMDS) / audio 0.5 - 1.0 vPP, DDC 5 Vpp | | Signal Support | HDBaseT HDMI 1.4a HDMI format standard, DVI and HDCP compliant | | Video Support | HDMI and DVI TMDS format for 1920 x 1200 resolution up to 10.2 Gbps (340 MHz), digital RGB 48 bits/px, deep color, 3D | | HDMI Audio I/O Supports | Multi audio formats 5.1/7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) | | Extra DVI Audio Input | HDBaseT transmitter input signal: stereo audio (3.5 mm OD Jack) | | S/PDIF Audio Output | HDBaseT receiver output signal: S / PDIF (PCM-2CH, RCA connector) | | Cable Support | CAT5, CAT5e, CAT6, CAT6a, CAT7 UTP/STP cable | | HDMI Resolutions | 480p, 720p and 1080i / 1080p | | Scan Rate | HDMI resolution; frequency 24 - 240 Hz | | Controls | 1x IR in, 1x IR out, 1x Rs232 I/O and 2x LAN series interface | | Transfer Distance | Up to 330' (100 m) | | HDMI I/O Connectors | HDMI type A - SMD 19-pin female | | I/O Connectors | HDBaseT RJ-45, 8p8c female socket | | Safety Approvals | CE, FCC, VCCI ,REACH | | Power Consumption | Maximum 750 mA (full load 1080 p - 60 Hz signal with use 12 VDC input) | | Power Supply | Power input +12 VDC, 2 A (universal type 50 / 60 Hz, 100 - 240 VAC) | | Dimensions (L x W x H) | 5.31 x 5.11 x 1" (135 x 130 x 26 mm) | | Weight | 2 lb (907 g) |
