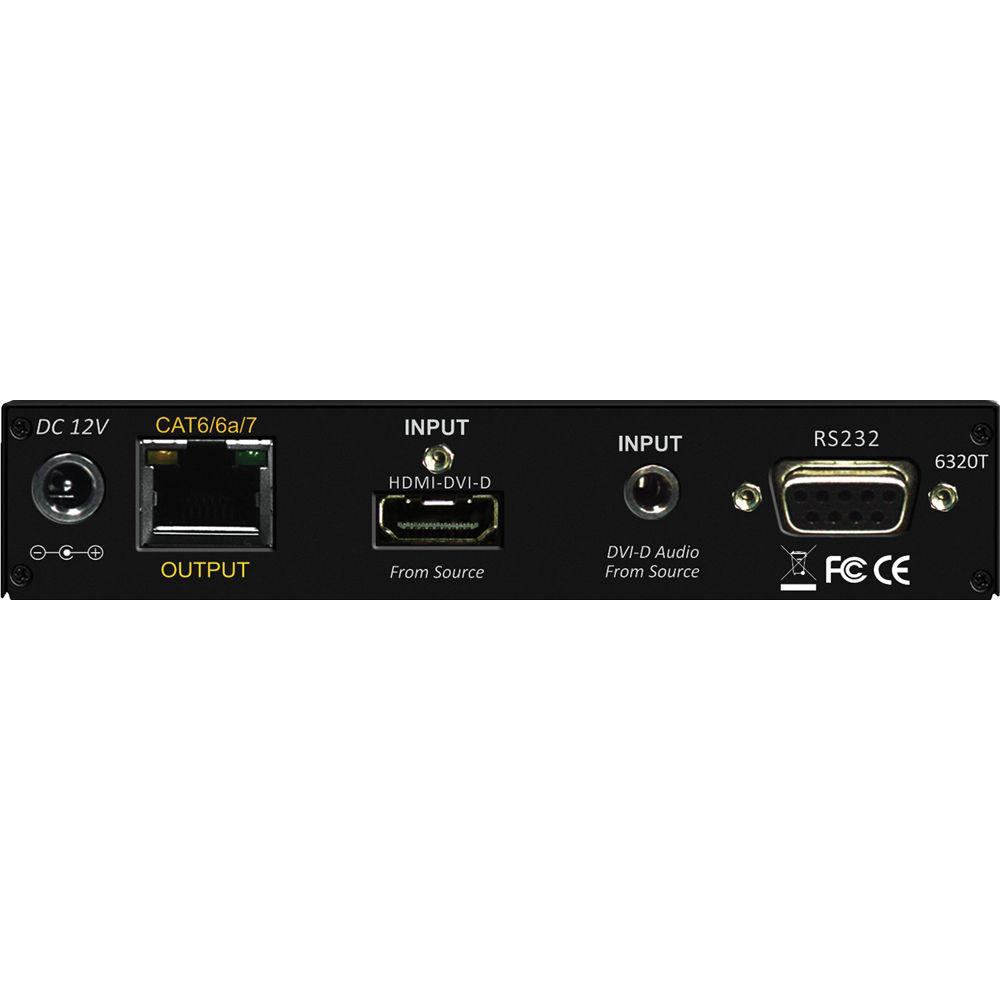

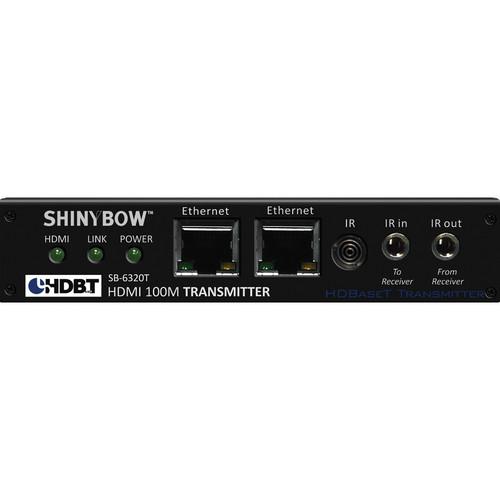

Product description The SB-6320T HDMI HDBaseT Transmitter from Shinybow supports audio formats such as Dolby TrueHD and DTS-HD Master Audio and all seven types of 3D. This transmitter is compatible with CAT5/5e/6/6a/7 cables and supports transmitting 3D Full HD video signal at up to 330' (100m). In addition, it supports bi-directional IR, RS-232 signals, and Ethernet. The front panel LED status display indicates a valid HDMI source, the connection between the transmitter and receiver, and power. This transmitter also supports DVI TMDS 1920 x 1200 format with the use of an external adapter (not included). The audio input jack can be used to provide audio for the DVI signal. The SB-6320T HDMI HDBaseT Transmitter comes with mounting ears and hardware for surface mounting. - Transmits audio, HDMI v1.4a (1080p @ 60 Hz) with 3D, Ethernet, RS-232, and bi-directional IR control signals over a single LAN cable (CAT5/5e/6/6a/7 UTP/STP)
- Long Distance Transmission: 330' with CAT6/7, 200' with CAT5e, 100' with CAT5
- Link speeds of up to 3.4 Gb/s
- Supports 1080p TVs at 24/30/60/100/200/240 Hz and above as well as Blu-rays at 24 fps
- Supports all HD resolutions (480p, 720p, 1080i/1080p, Ultra HD) with deep color (RGB 24/36/48-bit)
- Supports digital audio 7.1 LPCM 192 kHz, 24-bit, Dolby TrueHD and DTS-HD Master Audio, and uncompressed HD audio formats
- Supports DVI auxiliary audio (stereo audio) input and S/PDIF (PCM) output
- Supports TMDS specifications for HDMI and DVI (1920 x 1200 format)
- Supports Super Audio CD (DSD)
- RS-232 port for firmware update or control signal transmission
- LED indicators show power, HDMI, HDCP, and link status
- Mounting ears and hardware included
- Easy to install without any adjustments
- Low power consumption (480mA at full load)
- 100 to 240 VAC universal power supply included

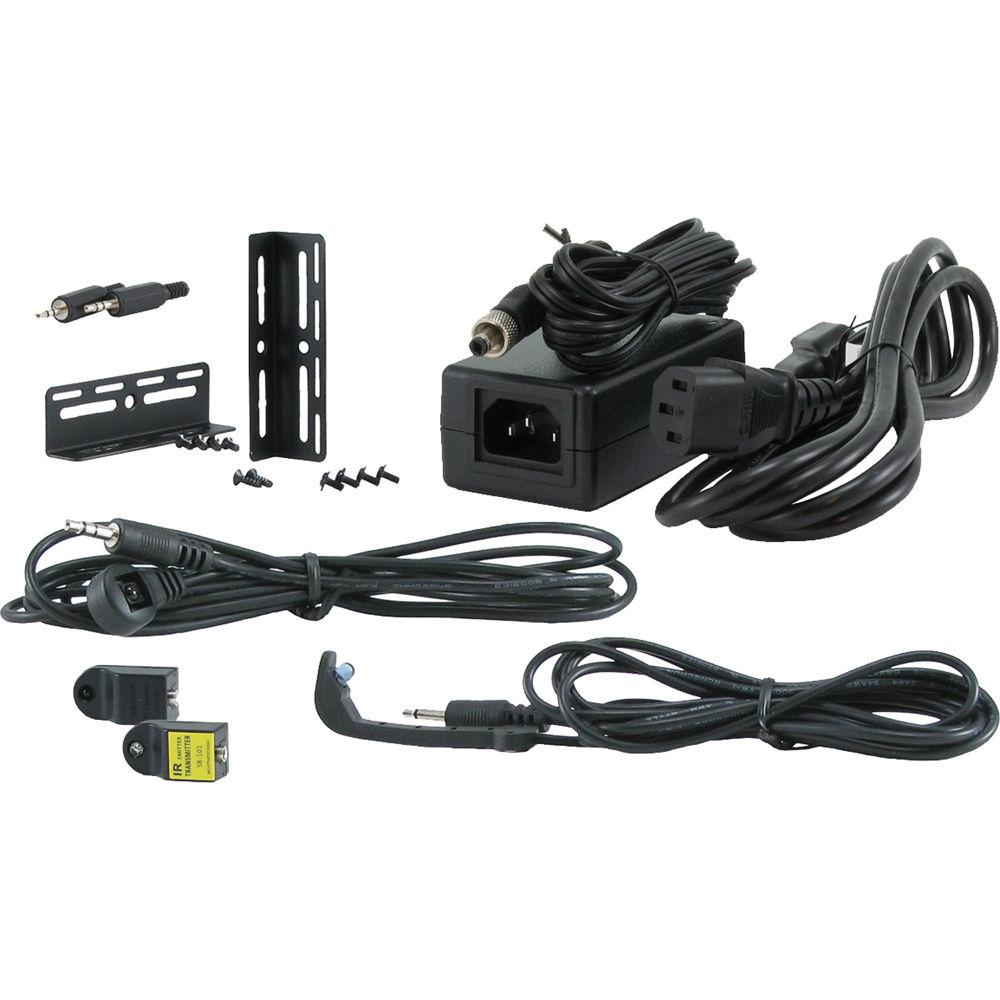

In the Box Shinybow SB-6320T HDMI HDBaseT Transmitter with Dual LAN, 2-Way IR, RS-232, and Audio for DVI IR Emitter (Blaster) IR Receiver SB-100 IR Emitter SB-101 IR Receiver Mounting Tabs with Screws North American Power Cord 12 VDC, 2A Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-6320T HDMI HDBaseT Transmitter with Dual LAN, 2-Way IR, RS-232, and Audio for DVI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-6320T Specs | Input Signals | HDMI with digital video (TMDS) / audio 0.5 to 1.0 Vpp, DDC 5 Vpp | | Signal Support | HDBaseT HDMI 1.4a format, DVI and HDCP compliant | | Video Support | HDMI and DVI TMDS format for 1920 x 1200 resolution up to 10.2 Gb/s (340 MHz), digital RGB 48 bits/pixel, deep color, 3D | | HDMI Audio Input | Supported Formats: Multi audio formats 5.1 / 7.1, MAT (MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) | | Extra DVI Audio Input | HDBaseT Transmitter Input Signal: Stereo audio (3.5 mm OD Jack) | | Cable Support | CAT5, CAT5e, CAT6, CAT6a, CAT7 UTP/STP cable | | HDMI Resolutions | 480p, 720p, 1080i / 1080p, and Ultra HD | | Scan Rate | HDMI resolution; frequency 24 to 240 Hz | | Controls | 1 x IR in, 1 x IR out, 1 x RS-232 I/O, and 2 x LAN series interface | | Transfer Distance | Up to 330' (100 m) | | HDMI Input Connectors | HDMI type A (SMD 19-pin female) | | Output Connectors | HDBaseT RJ-45, 8p8c female socket | | Safety Approvals | CE, FCC, VCCI, REACH | | Power Consumption | Maximum 750 mA at full load (1080p @ 60 Hz signal with 12 VDC power input) | | Power Supply | Type: Universal 100 to 240 VAC, 50 / 60 Hz
Power Input: 12 VDC, 2 A | | Dimensions (L x W x H) | 5.31 x 5.11 x 1" (135 x 130 x 26 mm) | | Weight | 2.0 lb (0.9 kg) | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 11.2 x 10.0 x 2.9" |
