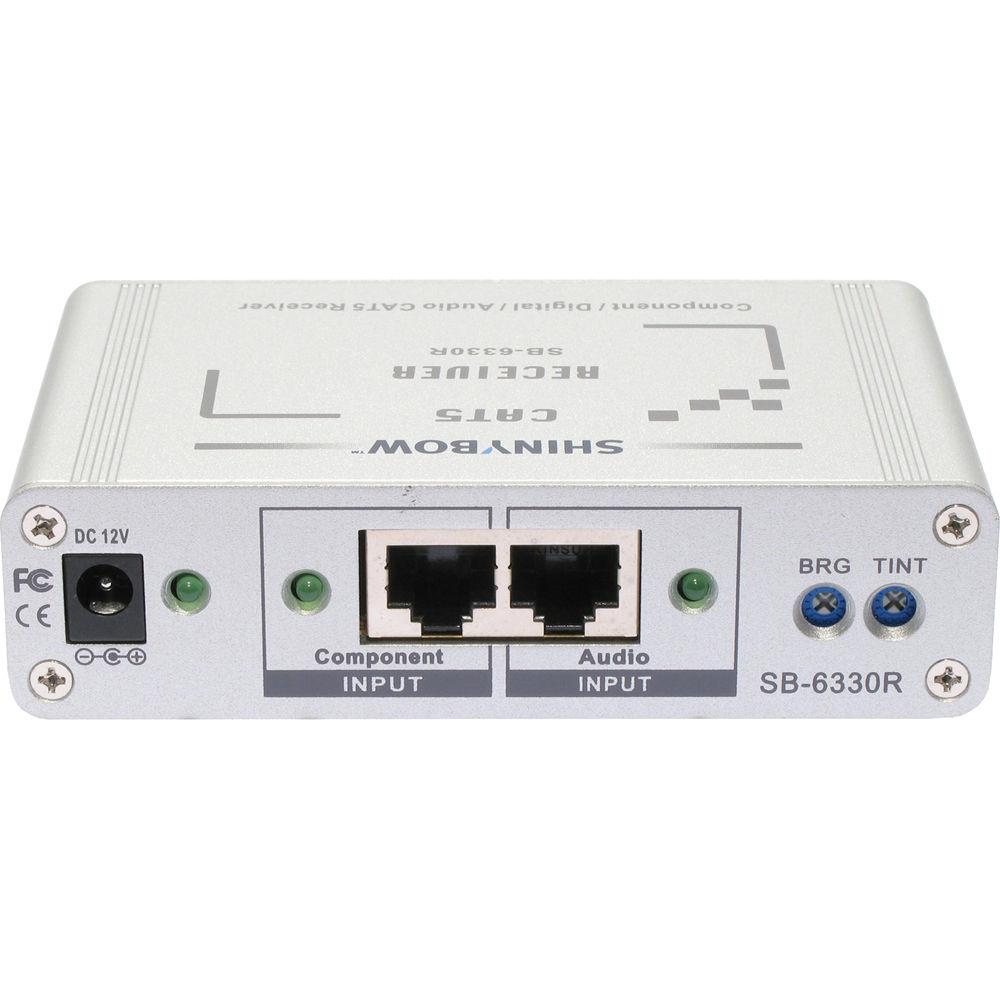

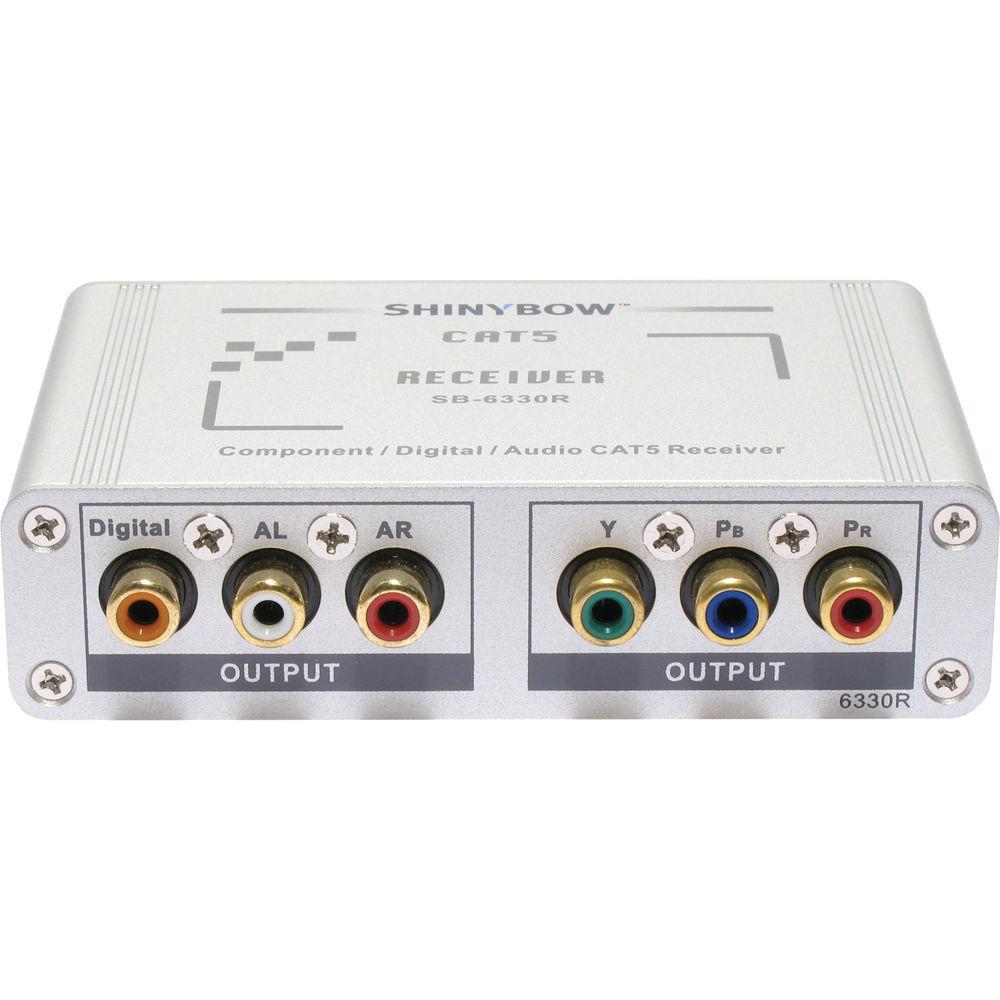

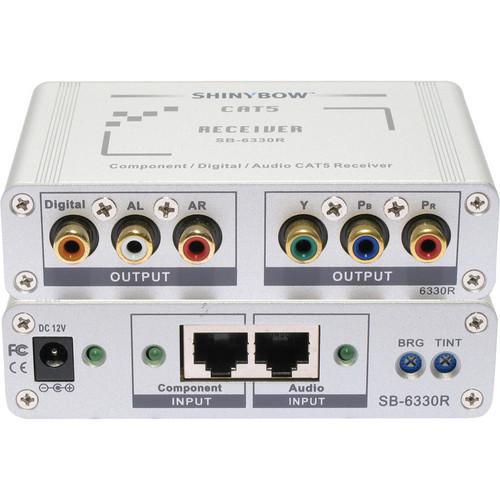

User Manual for Shinybow SB-6330R CAT5 Component Video HDTV Digital & Stereo Audio Receiver Click to enlarge the picture
Contents of the user manual for the Shinybow SB-6330R CAT5 Component Video HDTV
- Product category: Video Extenders & Repeaters Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Video Extenders & Repeaters
 |
User manual for the Shinybow SB-6330R CAT5 Component Video HDTV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The Shinybow SB-6330R CAT5/Component Video HDTV/Digital & Stereo Audio Receiver extends video signals up to 328’ (100m) using inexpensive CAT5/CAT6 UTP cables. The receiver unit has one output port that allows you to extend a single remote monitor. This device is commonly used in restaurants, bars, clubs, and other HDTV environments for video broadcasting such as remote monitoring, presentations, and advertising. - 2x output via gold plated, color coded RCA phono sockets (1 component + 1 digital audio)
- Category UTP cable maximum length to 328' (100m)
- Easy to install and highly reliable
- 2x RJ-45 (1 component + 1 digital audio)
- Brushed aluminum case with mounting brackets
- Supports resolutions up to 1080p
- For use in conjunction with the CAT5 Component transmitters
- Tint and brightness control
In the Box Shinybow SB-6330R CAT5/Component Video HDTV/Digital & Stereo Audio Receiver Surface Mount Bracket Users Guide AC/DC Adapter (12 VDC, 300 mA) 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-6330R CAT5 Component Video HDTV Digital & Stereo Audio Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-6330R Specs | Video Input Level | 1.45 Vpp maximum | | Distortion | -80 dB total harmonic @ 1 MHz: Rl = 100 Ω | | Video Bandwidth | 450 MHz, -3dB | | Slew Rate | 1,600 V/Zµs | | Housing | Aluminum | | Size | 3 x 2.75 x 1" (76.2 x 69.85 25.4 mm) | | Power Supply | 12 VDC, 300 mA | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 12.0 x 10.0 x 3.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
