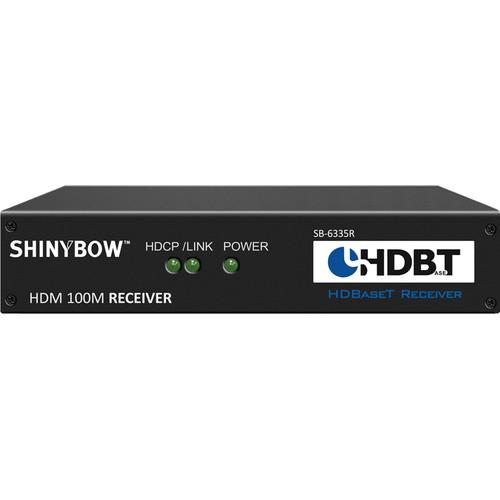

Product description The Shinybow SB-6335R HDMI over HDBaseT Receiver relays HDMI/DVI video and multichannel audio signals from a single category cable to an HDMI display device. This Cat 6/6a/7 receiver supports HDMI video up to 4K2K, and 1920 x 1200 DVI video from distances up to 328'. The SB-6335R receiver also supports link speeds of up to 3.4 Gbps, bidirectional IR and RS-232 control, and 568a and 568b color specifications.Front panel LEDs on the receiver display HDCP, link, and power status. The SB-6335R receiver includes a wall mount, an IR extender, an IR receiver, and corresponding IR cables. Note: If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws without installing the HDMI Locking Post replacement screws will void your warranty. Features - HDMI over single category cable HDBaseT receiver; supports Cat 6, Cat 6a, and Cat 7 UTP/FTP cables
- Receives up to 328' away from the HDBaseT transmitter
- Supports HD video resolutions up to 4K2K; extends 1920 x 1200 DVI video
- HDCP-compliant; IR and RS-232 bidirectional control
- Supports audio formats including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master
- Supports link speeds of up to 3.4 Gbps

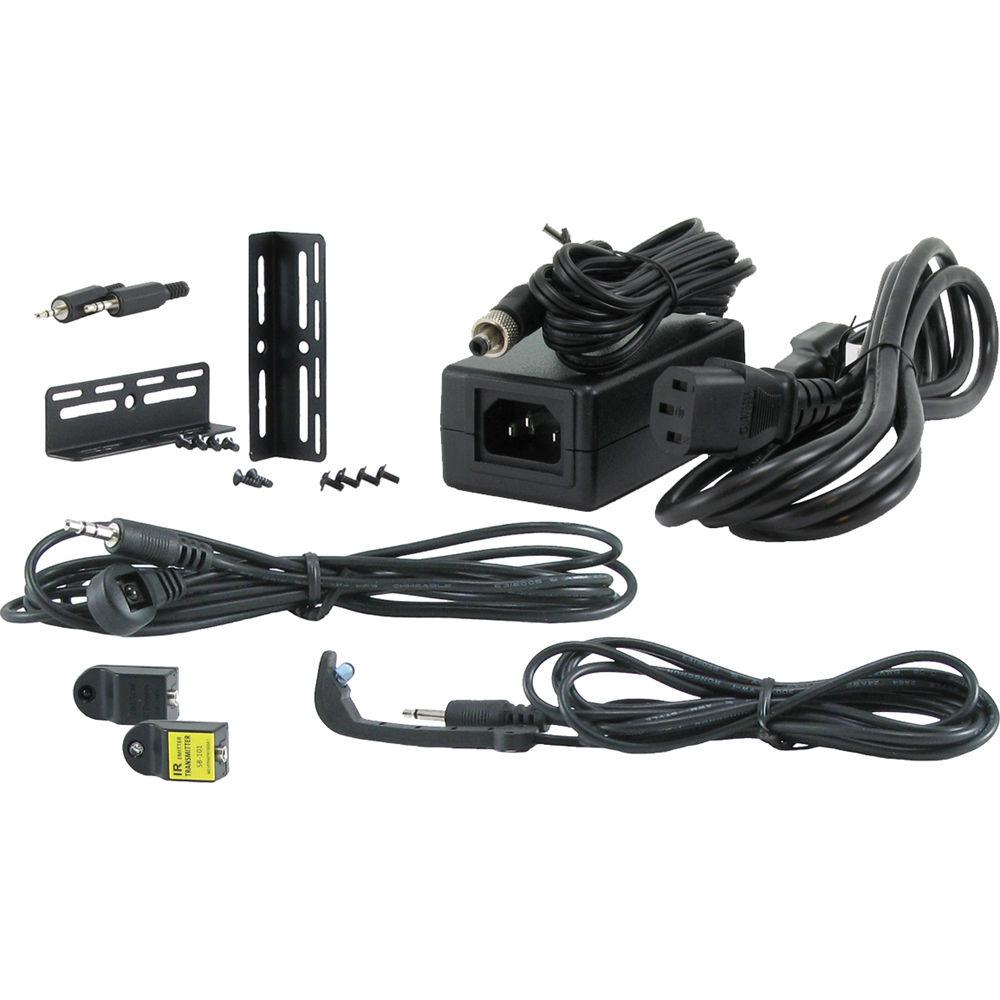

In the Box Shinybow SB-6335R HDMI over HDBaseT Receiver (328') SB-101 IR Emitter / Transmitter with Assembly Plugs SB-100 IR Receiver Set with Assembly Plug SB-100C IR Receiver Cable - 6' SB-101C IR Emitter / Transmitter with Cable Wall Mount HDMI Locking Post Replacement Screws Universal Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-6335R HDMI over HDBaseT Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-6335R Specs | Receiver Type | HDMI signal over single category cable | | Input Signals | Video: HDMI with digital video (TMDS)
Audio: 0.5 to 1 Vpp, DDC 5 Vpp | | HDBaseT Support | HDMI standard, DVI, and HDCP-compliant | | Video Supported | HDMI and DVI: 1920 x 1200, up to 3.4 Gbps
Digital RGB 36-bit color
3D 1.4a HDMI | | HDMI Audio Output Supports | Multichannel audio formats 5.1/7.1, MAT (MLP)
Dolby Digital, Dolby TrueHD, Dolby Digital Plus

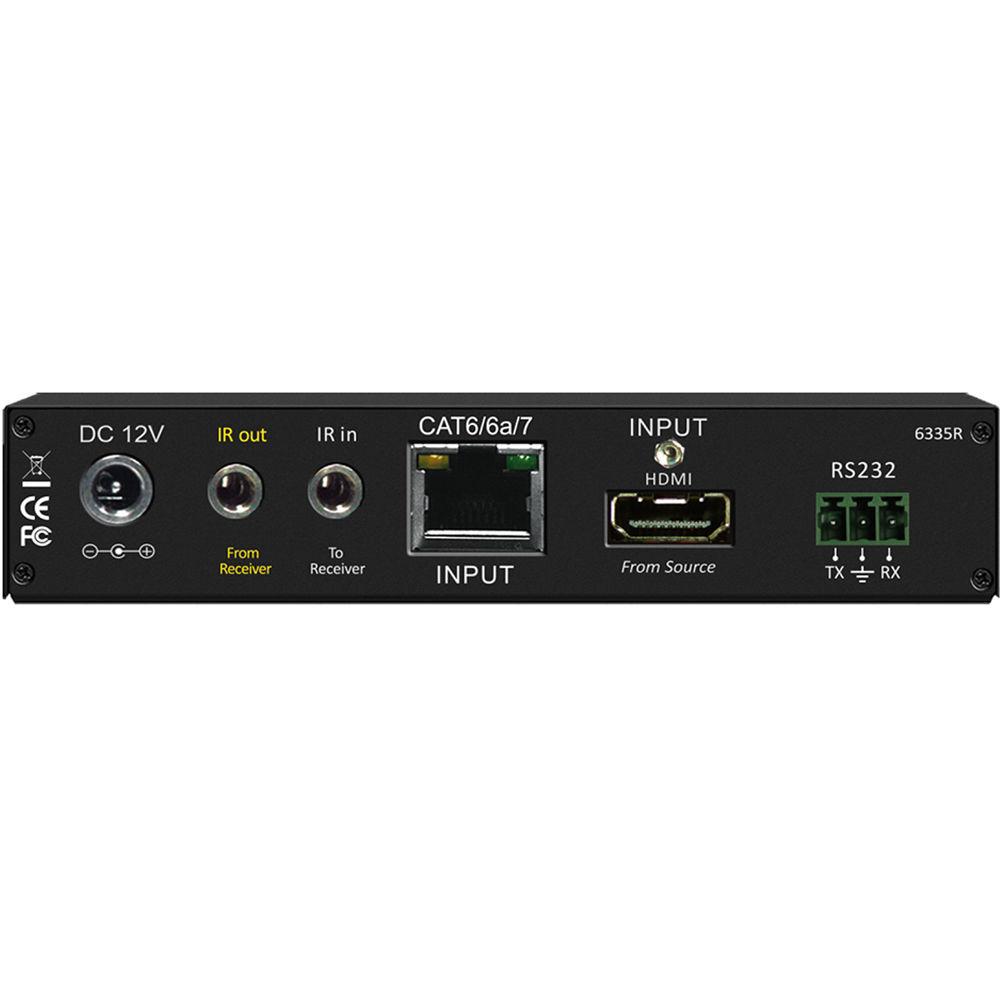

DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM, 2-Ch) | | RS-232 Support | 1 x RS-232 interface port (terminal block 3-pin female) | | Supported Cables | Cat 6, Cat 6a, Cat 7
UTP/FTP | | HDMI Resolutions | 4K2K
1080p, 720p, 480p
1080i | | Scan Rate | Full HD HDMI resolutions; 24-60 Hz | | Control | 1 x IR in/out
1 x RS-232
1 x LAN series interface | | IR Frequency | 38 kHz | | Distance | Cat 6: 328' (100 m) | | Maximum Power Consumption | 750 mAh (full load 1080p 60 Hz signal with 12 VDC input) | | Power Supply Input | 12 VDC, 2 A (50/60 Hz, 100~240 VAC) | | Compatible Rack Unit | 4 RU rackmount | | Dimensions (LxWxH) | 3.15 x 5.12 x 1.00" (8.0 x 13.0 x 2.5 cm) | | Weight | 11.4 oz (0.325 kg) | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 9.4 x 7.0 x 1.5" |
