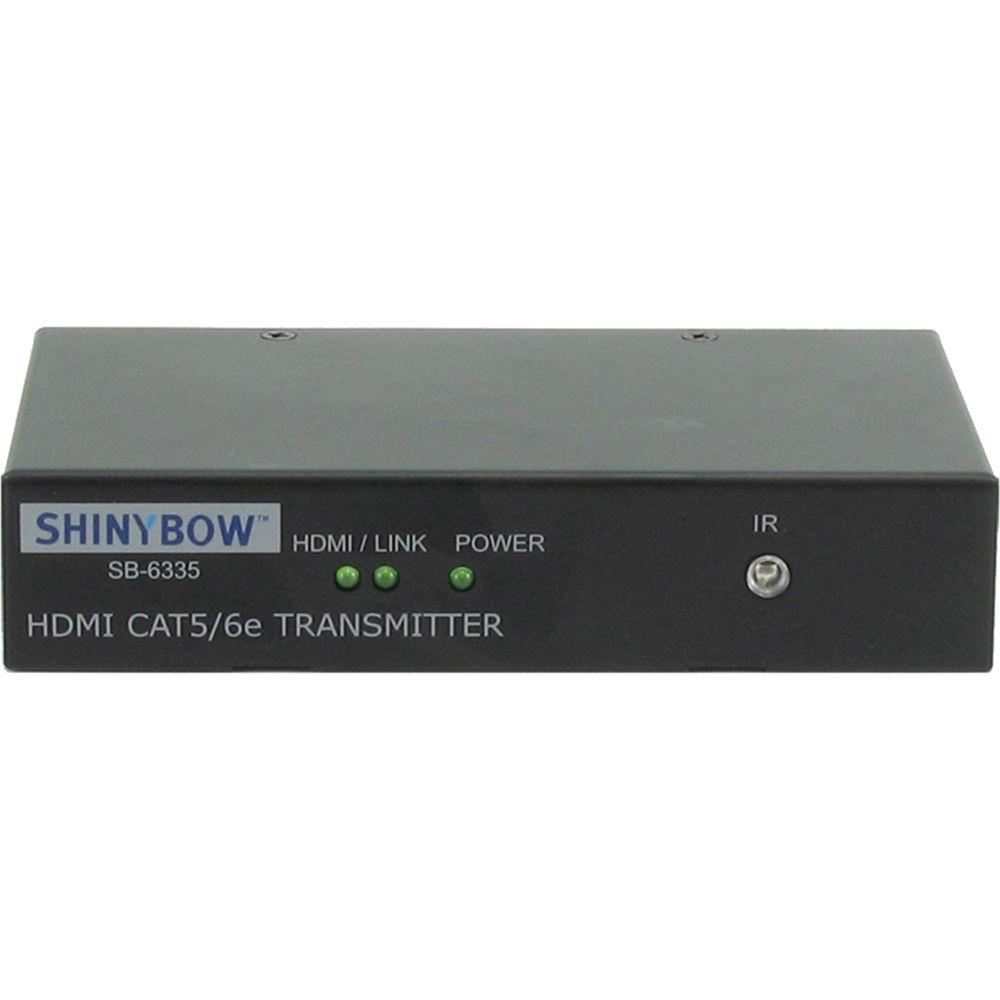

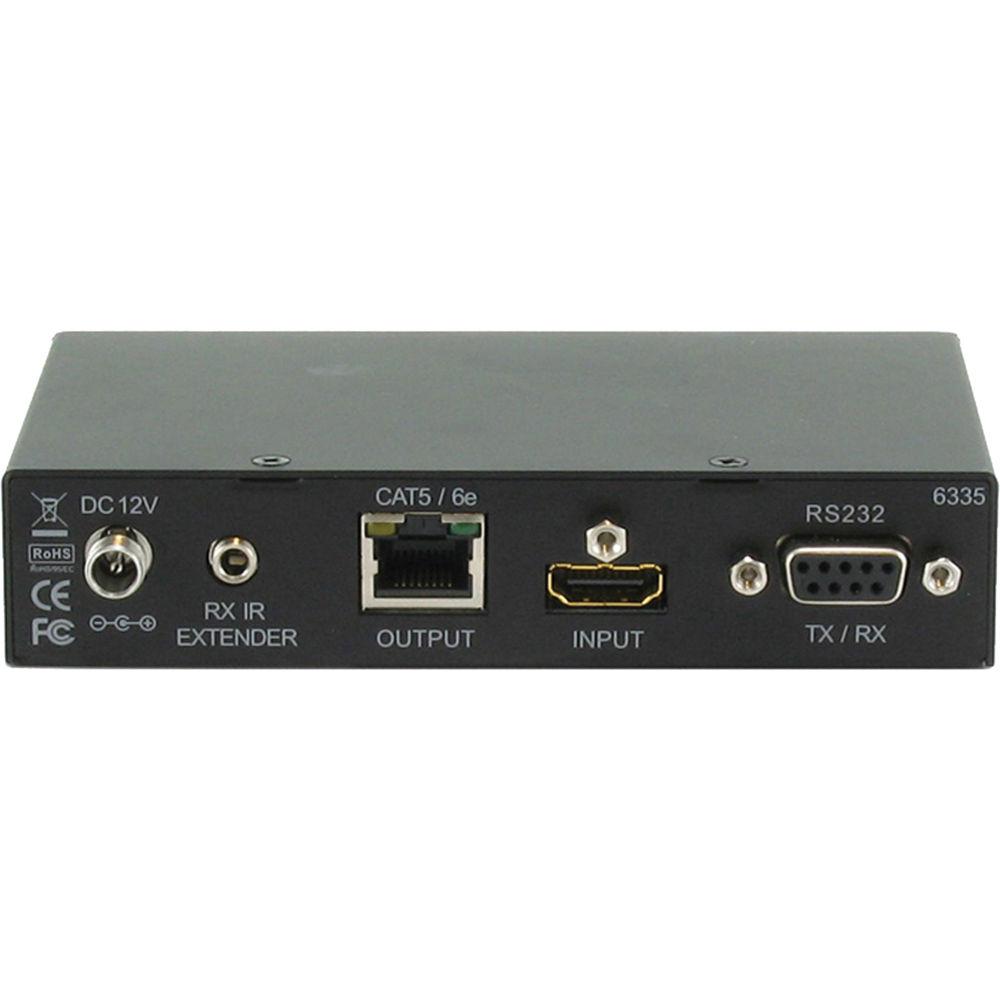

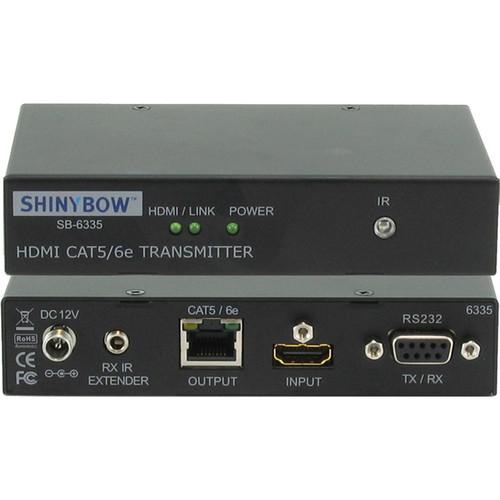

Product description The Shinybow SB-6335T HDMI over Single CAT5e/6/7 Transmitter with Bi-Directional IR is an HDMI Version 1.4 transmitter that supports audio formats such as Dolby True HD, DTS-master, and all 7 types of 3D. This CAT5/5e/6/7 Transmitter is designed on technology which supports full 3D at 1080p up to a distance of 330’ (91.44 m). The SB-6335T not only supports high-definition video and audio, but also IR and RS-232. The front panel LED lights indicate a valid HDMI source, connection status, and power. The transmitter features built-in mounting tabs for surface mounting, and supports DVI with use of an external adapter (not included). - HDMI digital video/audio and video TMDS format support with HDCP compliance
- Supports Dolby True HD, DTS-master.
- Accepts connections via the CAT5/5e/6/7 UTP/STP cable
- Supports link speeds of up to 3.4 Gbps
- Supports Digital RGB 36-bit HDMI TMDS format deep color
- Extends high-quality 1920 x 1200 videos
- Supports High Definition full range resolutions like 408p, 720p, 1080i/1080p
- IR Extender support and RS-232 control
- Can be installed easily without making any adjustments
- DC power input with low power consumption (Full load 480 mA)
- Power supply using universal power switch 12 VDC / 1250 mA

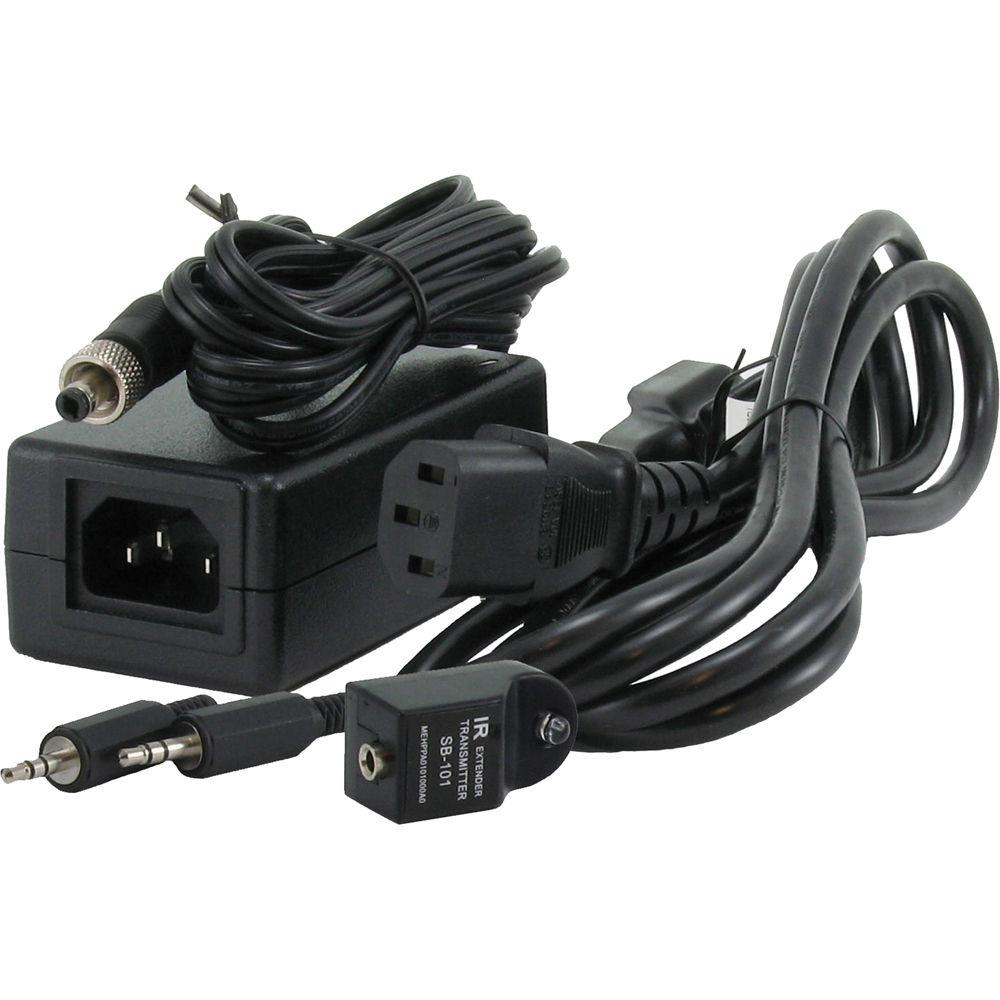

In the Box Shinybow SB-6335T HDMI over Single CAT5e/6/7 Transmitter with Bi-Directional IR IR Blaster North American Power Cord User's Guide Power Supply: 12 VDC, 2 A 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-6335T HDMI over Single CAT5e 6 7 Transmitter with Bi-Directional IR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-6335T Specs | Type | HDMI signal over CAT5/5e/67 cable transmitter | | Input Video Signal | HDMI with digital video (TMDS)/Audio 0.5 to 1.0 Vpp, DDC 5 Vpp | | Video | HDMI and DVI formats for 1920 x 1200 resolutions up to 3.4 Gbps
Digital RGB 36 bits HDMI TMDS format deep color | | Scan Rate | HDMI Resolution 50 Hz and 60 Hz | | Control | Link Series: IR Extend and RS-232 series interface via a PC | | IR Frequency | 38 kHz | | Inputs | 1x RS-232
1x HDMI
1x IR Extender port | | Outputs | 1x HDMI CAT5/5e/6/7 Transmitter | | Distance | Extend:
CAT6/7: 330' (100 m)
CAT5e: 200' (75 m)
CAT5: 100' (35 m) | | Power Supply | 12 VDC / 2 A (consumption 1680 mA Maximum) | | Switch Type | 50/60 Hz, 100 to 230 VAC | | Dimensions (LxWxH) | 9.45 x 4.72 x 1" (240 x 120 x 25 mm) | | Weight | 2 lb (0.90 kg) | | | | Package Weight | 1.985 lb | | Box Dimensions (LxWxH) | 9.45 x 7.2 x 1.5" |
