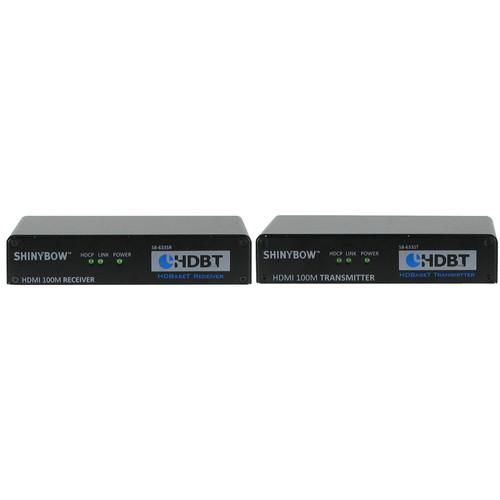

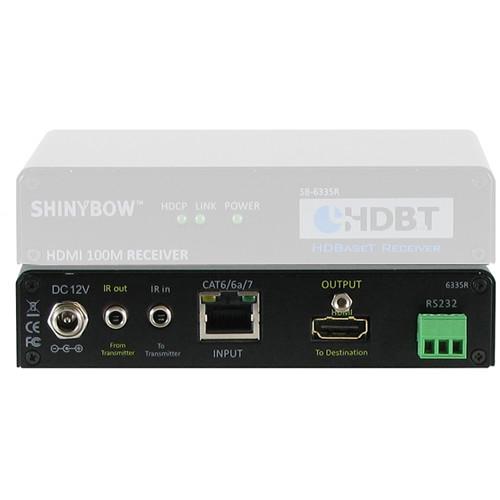

Product description The Shinybow SB-6335T&R HDMI over HDBaseT Transmitter & Receiver Kit includes the SB-6335T HDBaseT Transmitter and SB-6335R HDBaseT Receiver. This kit is used to transmit HDMI, IR remote I/O, and RS-232 I/O signals via a single Cat6/6a/7 (UTP/FTP) cable up to 328' (100m). The devices support video resolutions up to 4K and multi-channel audio. They also support the 568a or 568b color specification table, and DVI video up to WUXGA 1920 x 1200 resolution via an HDMI-to-DVI adapter (not included). - SB-6335R HDMI over HDBaseT Receiver (328') The Shinybow SB-6335R HDMI over HDBaseT Receiver relays HDMI/DVI video and multichannel audio signals from a single category cable to an HDMI display device. This Cat 6/6a/7 receiver supports HDMI video up to 4K2K, and 1920 x 1200 DVI video from distances up to 328'. The SB-6335R receiver also supports link speeds of up to 3.4 Gbps, bidirectional IR and RS-232 control, and 568a and 568b color specifications.Front panel LEDs on the receiver display HDCP, link, and power status. The SB-6335R receiver includes a wall mount, an IR extender, an IR receiver, and corresponding IR cables. Note: If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws without installing the HDMI Locking Post replacement screws will void your warranty.
Features - HDMI over single category cable HDBaseT receiver; supports Cat 6, Cat 6a, and Cat 7 UTP/FTP cables
- Receives up to 328' away from the HDBaseT transmitter
- Supports HD video resolutions up to 4K2K; extends 1920 x 1200 DVI video
- HDCP-compliant; IR and RS-232 bidirectional control
- Supports audio formats including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master
- Supports link speeds of up to 3.4 Gbps

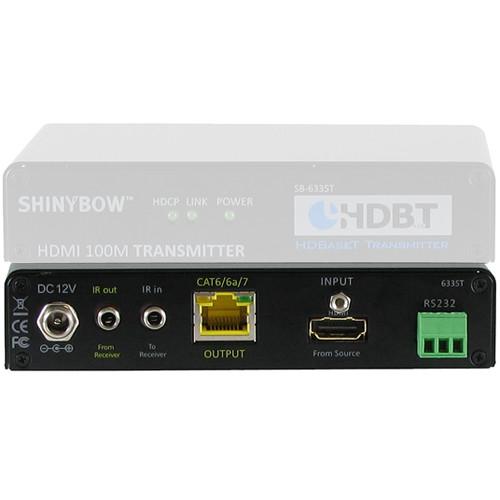

- SB-6335T HDMI over Single CAT5e/6/7 Transmitter with Bi-Directional IR The Shinybow SB-6335T HDMI over Single CAT5e/6/7 Transmitter with Bi-Directional IR is an HDMI Version 1.4 transmitter that supports audio formats such as Dolby True HD, DTS-master, and all 7 types of 3D. This CAT5/5e/6/7 Transmitter is designed on technology which supports full 3D at 1080p up to a distance of 330’ (91.44 m). The SB-6335T not only supports high-definition video and audio, but also IR and RS-232. The front panel LED lights indicate a valid HDMI source, connection status, and power. The transmitter features built-in mounting tabs for surface mounting, and supports DVI with use of an external adapter (not included).
- HDMI digital video/audio and video TMDS format support with HDCP compliance
- Supports Dolby True HD, DTS-master.
- Accepts connections via the CAT5/5e/6/7 UTP/STP cable
- Supports link speeds of up to 3.4 Gbps
- Supports Digital RGB 36-bit HDMI TMDS format deep color
- Extends high-quality 1920 x 1200 videos
- Supports High Definition full range resolutions like 408p, 720p, 1080i/1080p
- IR Extender support and RS-232 control
- Can be installed easily without making any adjustments
- DC power input with low power consumption (Full load 480 mA)
- Power supply using universal power switch 12 VDC / 1250 mA

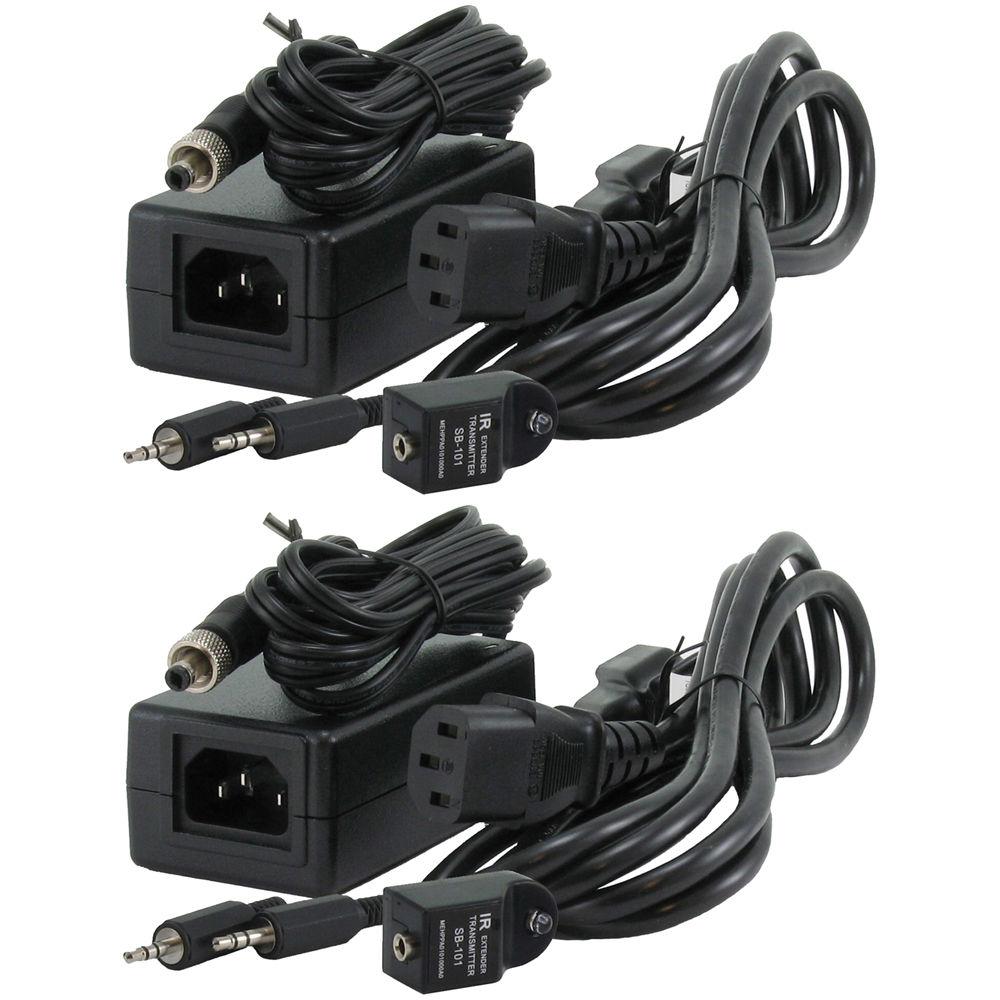

In the Box Bundle Items SB-6335R HDMI over HDBaseT Receiver (328') cyudsetazrawxuytyxyzuv - SB-101 IR Emitter / Transmitter with Assembly Plugs
- SB-100 IR Receiver Set with Assembly Plug
- SB-100C IR Receiver Cable - 6'
- SB-101C IR Emitter / Transmitter with Cable
- HDMI Locking Post Replacement Screws
SB-6335T HDMI over Single CAT5e/6/7 Transmitter with Bi-Directional IR cyudsetazrawxuytyxyzuv - North American Power Cord
- Power Supply: 12 VDC, 2 A
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-6335T&R HDMI over HDBaseT Transmitter & Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SB-6335R HDMI over HDBaseT Receiver (328')
| Receiver Type | HDMI signal over single category cable | | Input Signals | Video: HDMI with digital video (TMDS)
Audio: 0.5 to 1 Vpp, DDC 5 Vpp | | HDBaseT Support | HDMI standard, DVI, and HDCP-compliant | | Video Supported | HDMI and DVI: 1920 x 1200, up to 3.4 Gbps
Digital RGB 36-bit color
3D 1.4a HDMI | | HDMI Audio Output Supports | Multichannel audio formats 5.1/7.1, MAT (MLP)
Dolby Digital, Dolby TrueHD, Dolby Digital Plus
DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM, 2-Ch) | | RS-232 Support | 1 x RS-232 interface port (terminal block 3-pin female) | | Supported Cables | Cat 6, Cat 6a, Cat 7
UTP/FTP | | HDMI Resolutions | 4K2K
1080p, 720p, 480p
1080i | | Scan Rate | Full HD HDMI resolutions; 24-60 Hz | | Control | 1 x IR in/out
1 x RS-232
1 x LAN series interface | | IR Frequency | 38 kHz | | Distance | Cat 6: 328' (100 m) | | Maximum Power Consumption | 750 mAh (full load 1080p 60 Hz signal with 12 VDC input) | | Power Supply Input | 12 VDC, 2 A (50/60 Hz, 100~240 VAC) | | Compatible Rack Unit | 4 RU rackmount | | Dimensions (LxWxH) | 3.15 x 5.12 x 1.00" (8.0 x 13.0 x 2.5 cm) | | Weight | 11.4 oz (0.325 kg) | | | | Box Dimensions (LxWxH) | 9.4 x 7.0 x 1.5" | - SB-6335T HDMI over Single CAT5e/6/7 Transmitter with Bi-Directional IR
| Type | HDMI signal over CAT5/5e/67 cable transmitter | | Input Video Signal | HDMI with digital video (TMDS)/Audio 0.5 to 1.0 Vpp, DDC 5 Vpp | | Video | HDMI and DVI formats for 1920 x 1200 resolutions up to 3.4 Gbps
Digital RGB 36 bits HDMI TMDS format deep color | | Scan Rate | HDMI Resolution 50 Hz and 60 Hz | | Control | Link Series: IR Extend and RS-232 series interface via a PC | | IR Frequency | 38 kHz | | Inputs | 1x RS-232
1x HDMI
1x IR Extender port | | Outputs | 1x HDMI CAT5/5e/6/7 Transmitter | | Distance | Extend:
CAT6/7: 330' (100 m)
CAT5e: 200' (75 m)
CAT5: 100' (35 m) | | Power Supply | 12 VDC / 2 A (consumption 1680 mA Maximum) | | Switch Type | 50/60 Hz, 100 to 230 VAC | | Dimensions (LxWxH) | 9.45 x 4.72 x 1" (240 x 120 x 25 mm) | | Weight | 2 lb (0.90 kg) | | | | Box Dimensions (LxWxH) | 9.45 x 7.2 x 1.5" |
