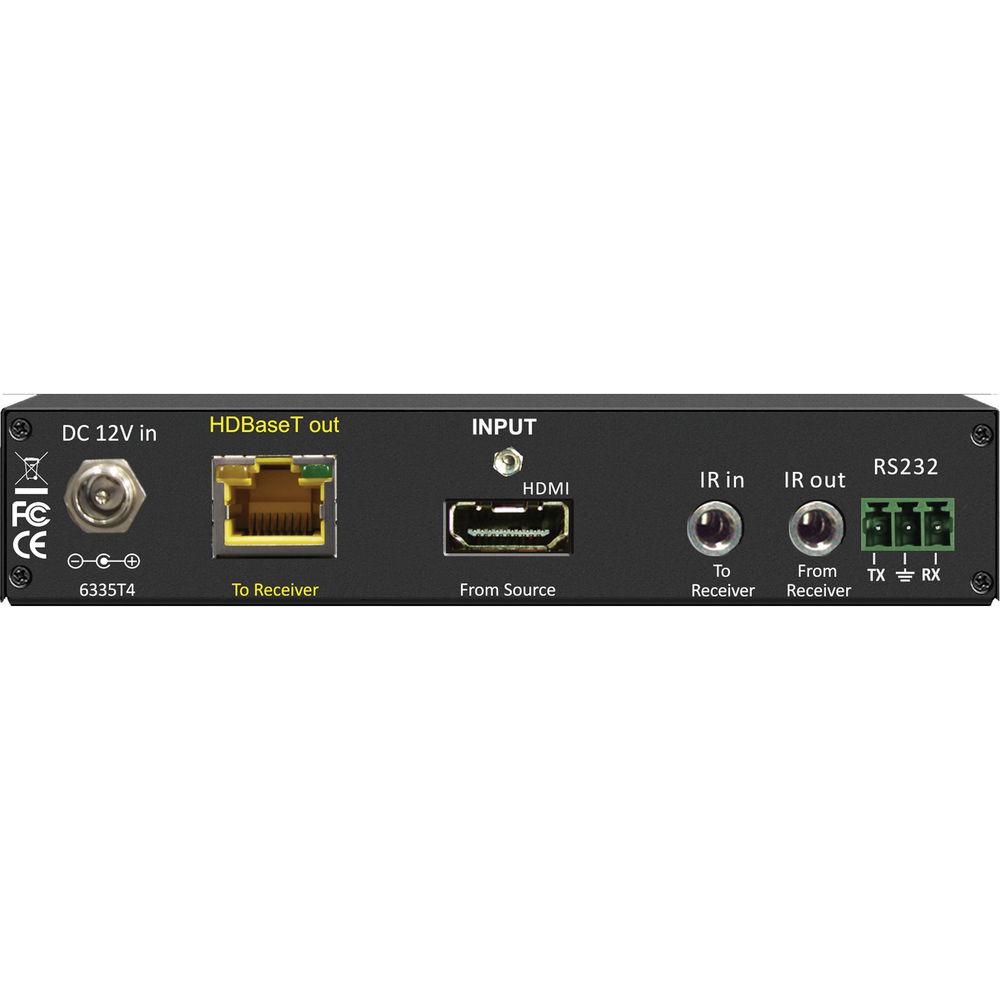

Product description The SB-6335T4 HDMI HDBaseT Transmitter from Shinybow supports transmission of HDMI video and audio, Ethernet, RS-232, and bi-directional IR signals over a single UTP/STP cable up to 330’. This transmitter is capable of sending HDMI V1.4a, 1080p@60 video signals with 3D and 4Kx2K resolutions and is compliant with CEC / HDCP formats. This transmitter supports TMDS formats for link speeds of up to 10.2 Gb/s with a bandwidth of 340 MHz. It also allows transmission of 7.1 LPCM 192 kHz, 24-bit, Dolby TrueHD, and DTS-HD Master audio formats and other uncompressed HD audio formats. - Supports transmission of HDMI video and audio, Ethernet, RS-232, and bi-directional IR signals over a single UTP/STP cable up to 330'
- Extends HDMI signals with 3D and 4Kx2K resolutions
- Supports transmission of HDMI V1.4a standard video signals
- Supports link speeds of up to 10.2 Gb/s using TMDS format
- Signal bandwidth of 340 MHz
- Transmits Deep Color, Full HD 1080p @ 60 Hz @ 24/36/48-bit pixels
- Supports 1080p TV's at 24/30/60/100/200/240 Hz and above as well as Blu-rays at 24 fps
- Supports 7.1 LPCM 192 kHz, 24-bit, Dolby TrueHD, and DTS-HD Master audio formats and other uncompressed HD audio formats
- Allows transfer of bi-directional infrared control signals with the HDMI signal
- RS-232 port for firmware update or RS-232 control signal transmission
- Supports HDMI CEC between your connected source and display gear
- Features LED indicators to show the power, HDMI, HDCP, and link status
- Support Super Audio CD (DSD) and CEC commands protocol table
- Mounting Ears and wall mount pack included
- Power supply using universal power switch 50/60 Hz, 100 to 240VAC 1

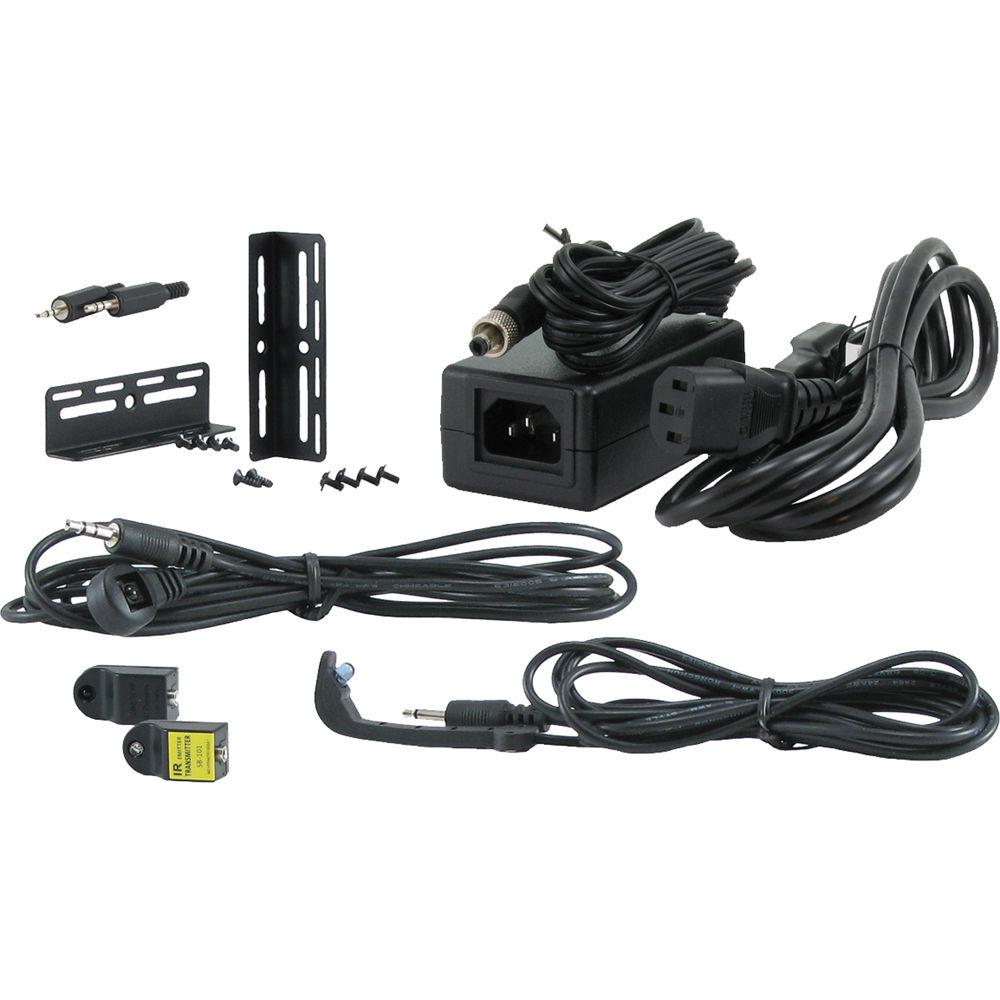

Please Note: Power supply not included. close In the Box Shinybow SB-6335T4 HDMI HDBaseT Transmitter Mounting Ears Wall Mount Pack Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-6335T4 HDMI HDBaseT Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-6335T4 Specs | Type | HDBaseT Transmitter for HDMI signal over Category UTP/STP cable | | Inputs | 1 x HDMI, 1 x RS-232 i/o, 1 x IR in/out, 1 x Ethernet i/o | | Outputs | 1 x HDBaseT | | Input Signals | HDMI with Digital Video (TMDS) / Audio 0.5 to 1 Vpp, DDC 5 Vpp | | HDBaseT Signal Supports | HDMI 1.4a HDMI format Standard, DVI, and HDCP compliant | | Video Support | HDMI and DVI TMDS format for 1920 x 1200 resolution up to 10.2 Gb/s (340 MHz), Digital RGB 48 bits/px, deep color, 3D | | HDMI Audio I/O Supports | Multi Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2 channels) | | Cables Supported | CAT5e, CAT6, CAT6a, CAT7 UTP/STP cable Not included | | Supported Resolutions | 480p, 720p, 1080i/1080p, and Ultra HD 4K2K | | Scan Rates Accepted | Support HDMI full HD Resolution; Frequency 24 to 240 Hz | | Controls | 1 x IR in, 1 x IR out, 1 x Rs232 I/O, and 2 x LAN series interface | | Transfer Distance | Up to 330' (100 m) | | I/O Connectors | HDMI: HDMI Type A - SMD 19pin Female Type
HDBaseT: HDBaseT RJ-45, 8p8c Female socket | | Safety Approvals | CE, FCC, VCCI & REACH | | Power Consumption | Maximum 850 mA (full load 1080p/60 Hz signal with use 12 VDC input) | | Power Supply | Power Input 12 VDC, 2 A (Universal Type 50/60 Hz, 100 to 240 VAC) Power adapter not included | | Dimensions (L x W x H) | 5.3 x 5.1 x 1.0" (13.5 x 12.9 x 2.5 cm) | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 11.2 x 10.1 x 2.9" |
