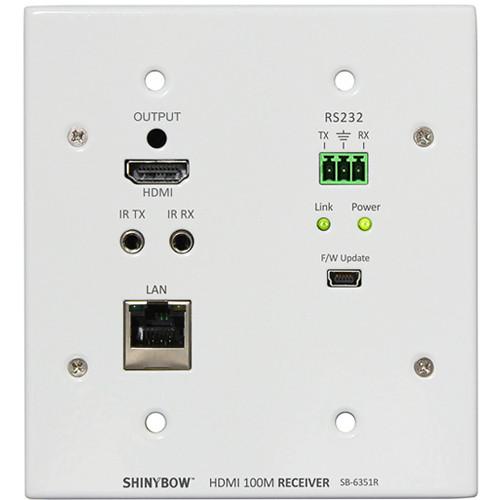

Product description Compatible with HDMI 1.4a, the white SB-6351R HDBaseT Wall Plate Receiver allows you to extend Ultra HD, 3D, and 1080p60 video up to 328' over a single category cable when paired with the separately available SB-6335T5 HDBaseT Transmitter. In addition to HDMI digital video and multi-channel audio, the SB-6351R can receive Ethernet and Power over HDBaseT (PoH) from the transmitter over the same Cat cable, as well as transfer RS-232 in/out and bi-directional IR control signals. Once received, outputs on the receiver let you send the source signals to their the respective destinations, such as an HDTV. - Key Features
-
- HDMI HDBaseT wall plate receiver
- Compatbile with SB-6335T5 HDBaseT Receiver
- HDBaseT transmission of HDMI, PoH, LAN, RS-232, and bidirectional IR signals over a single CatX cable up to 330'
- Accepts UTP/STP Cat5e, Cat6, Cat6a, or Cat7 cable (supports 568a/b color specification table)
- HDMI 1.4a compatible to support 1080p60 video, 3D, and Ultra HD video
- Deep Color, 1080p at 60 Hz, 24/36/48-bit
- Supports 1080p at 24/30/60/100/200/240 Hz and above, as well as Blu-ray at 24 fps
- CEC/HDCP Compliant
- Supports 48 VDC PoH from the SB-6335T5 HDBaseT Receiver
- Link speeds up to 10.2 Gb/s (TMDS format); signal 340 MHz
- Supports Digital Audio 7.1LPCM 192 kHz, 24-bit, Full HD Dolby TrueHD, and DTS-HD Master Audio uncompressed HD audio formats
- Supports Super Audio CD (DSD), CEC commands protocol table
- RS-232 Port for firmware update or RS-232 control signal transmission
In the Box Shinybow SB-6351R HDBaseT Wall Plate Receiver with PoH Support (White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-6351R HDBaseT Wall Plate Receiver with PoH Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-6351R Specs | Interface | 1 x HDBaseT input (RJ-45)
1 x HDMI out
1 x LAN (High Input Impedance: 1 MOhms differential)
1 x IR Transmit
1 x IR Receive
1 x RS-232 I/O
1 x USB Mini-B, for firmware updates | | HDBaseT Signal Supports | HDMI 1.4a, DVI, and HDCP compliant | | Supported CAT Cables | Cat5e, Cat6, Cat6a, Cat7 UTP/STP | | Maximum Transfer Distance | 328' (100 m) | | HDMI Supported Resolutions | 480p, 720p, 1080i, 1080p, and Ultra HD (3840 x 2160) | | Scan Rates Accepted | 24 to 240 Hz | | Bandwidth | 10.2 Gb/s | | Distortion | 1 Vpp at 5 MHz | | Safety Approvals | CE, FCC, VCCI, REACH | | Power Requirements | 48 VDC PoH from SB-6335T5 HDBaseT Transmitter (sold separately) | | Power Consumption | Max. 1000 mAh (full load 1080p at 60 Hz signal with 48 VDC input) | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Dimensions | 4.3 x 4.7 x 1.4" (11.0 x 12.0 x 3.5 cm) | | Weight | 0.8 lb (0.4 kg) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 10.0 x 6.5 x 2.9" |
