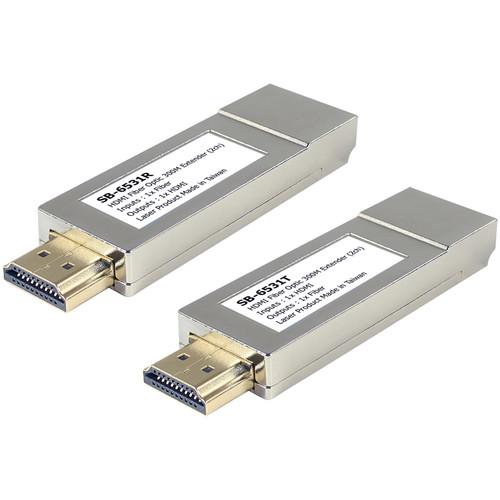

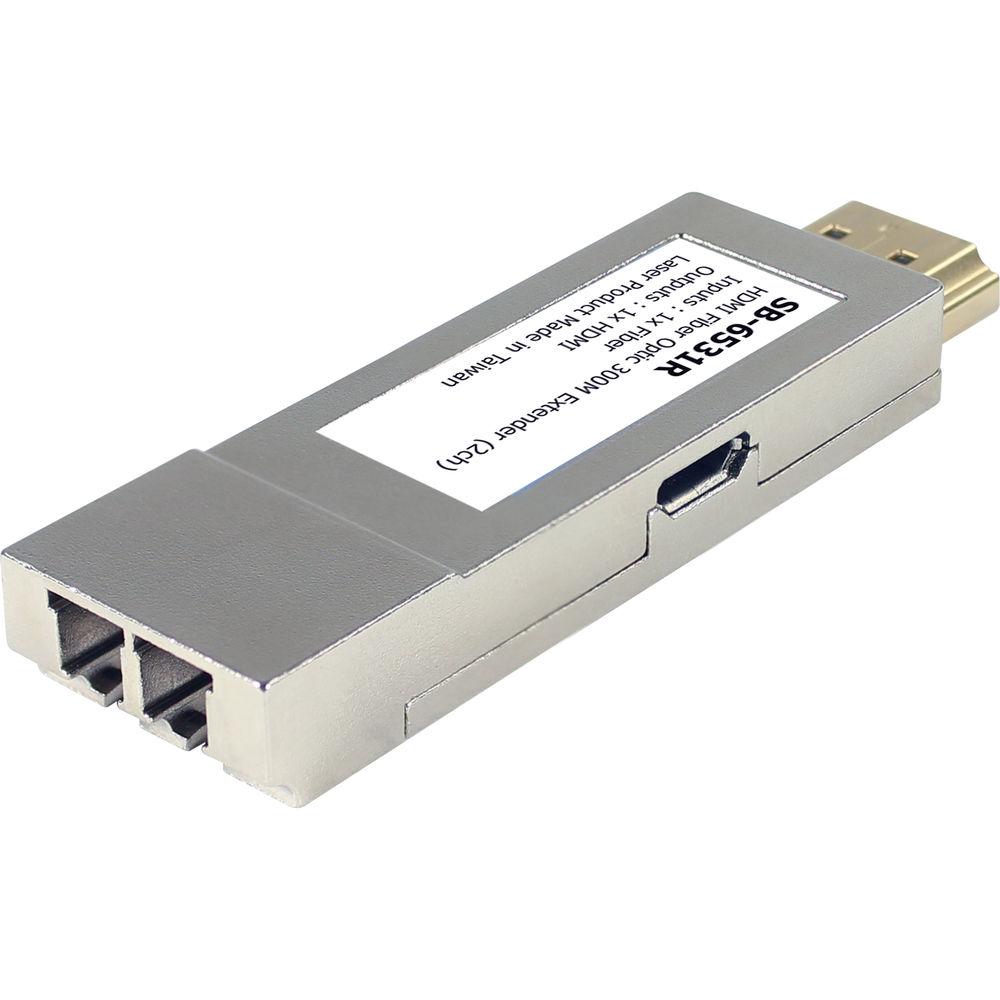

Product description The SB-6531KIT 4K HDMI over Fiber Optic Extender Kit from Shinybow consists of a compact transmitter and receiver for sending uncompressed HDMI signals up to 984' over multi-mode, duplex LC fiber optic cable. Designed for long cable runs, this kit is suited for remote camera shoots, digital projection systems, HDTV streams to multiple locations, and other HDMI applications. The SB-6531KIT supports up to 4K2K 30, HDCP-compliant, uncompressed HD video. This extender system supports DDC, EDI, and HDCP communication, and is compatible with an array of audio formats.The SB-6531KIT transmitter and receiver have simplified LC connectors, and are powered using the included USB cables. An external USB power supply is included for using either component with a source or display device lacking a USB port. - Features
-
- Extend HDMI signals up to 984' over duplex LC multi-mode fiber optic cables
- Supports 4K2K Ultra HD, and HD resolutions up to 1080p60
- Uncompressed video and audio transmission
- Supports DDC/EDID/HDCP transmission
- Transmitter and receiver powered via USB port, or power one component using included power supply
- Ultra-compact form factor
In the Box Shinybow SB-6531KIT 4K HDMI over Fiber Optic Cable Extender Kit 2 x USB 2.0 Type-A to Micro-USB Power Cables (36") USB 2.0 Type-A to Micro-USB Power Cable (16") 5 VDC USB Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-6531KIT 4K HDMI over Fiber Optic Cable Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-6531 KIT Specs | Extender Type | HDMI over fiber optic cable | | Interface | Transmitter
Input: 1 x HDMI, male
Output: 1 x Fiber (multi-mode duplex LC)
Receiver
Input: 1 x Fiber (multi-mode duplex LC)
Output: 1 x HDMI, male | | Input Signal | HDMI | | Signal Support | HDMI 1.4a, HDCP compliant | | Video Support | 4K2K 30
1920 x 1200
1080p60 | | Audio Support | Dolby TrueHD, Dolby Digital Plus
DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM 2Ch) | | Color Spaces | 4:4:4, 4:2:0, 4:0:0 | | Fiber Connector | Double LC receptacle | | Maximum Transfer Distance | OM1 Fiber: 108' (33 m)
OM2 Fiber: 270' (82 m)
OM3 Fiber: 984' (300 m) | | Operating Temperature Range | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Relative Humidity | 0 to 90%, non-condensing | | Operating Voltage | 5 VDC | | Power Supply | 5 VDC, 0.85 A (50/60 Hz, 100~240 VAC) | | Dimensions | 3.1 x 0.8 x 0.4" (7.9 x 2.0 x 1.0 cm) | | Weight | 3.5 oz (0.1 kg) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 6.2 x 3.5 x 2.7" |
