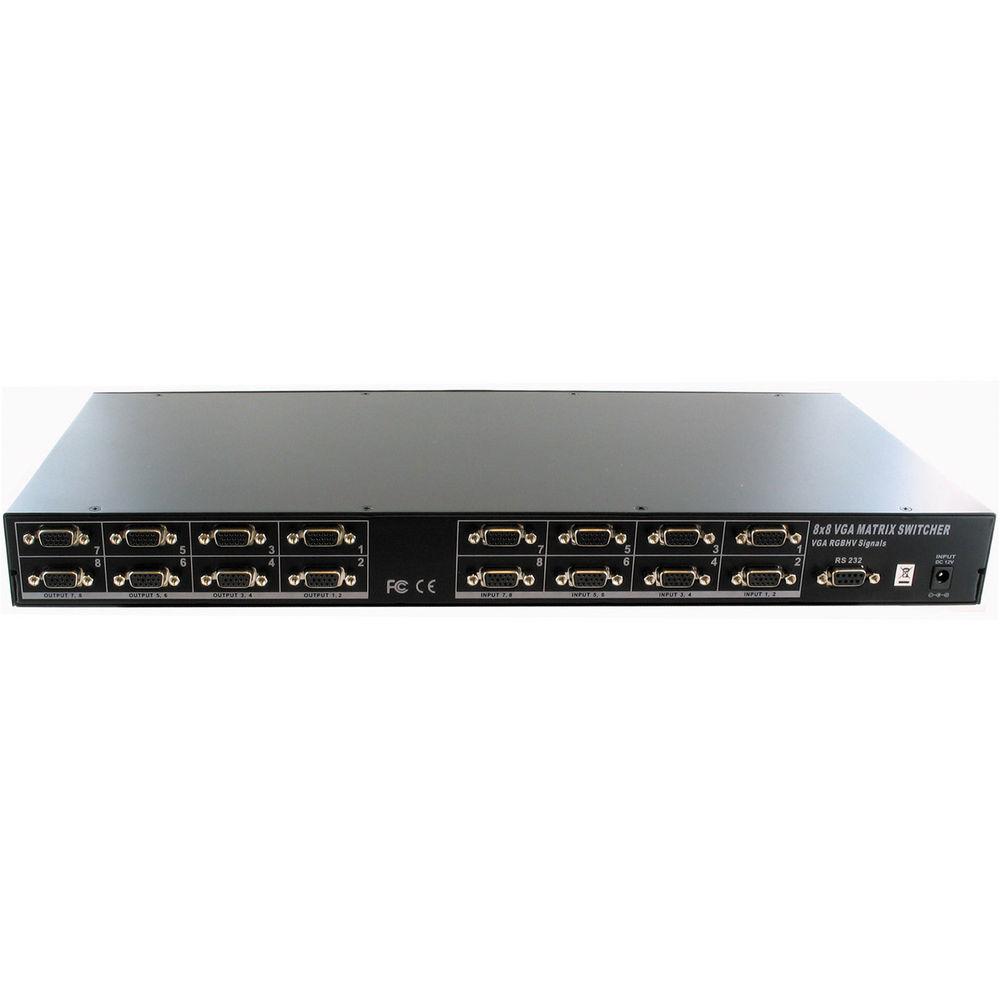

User Manual for Shinybow SB-8180 8 x 8 VGA Matrix Routing Switch with IR & RS-232 Control Click to enlarge the picture
Contents of the user manual for the Shinybow SB-8180 8 x 8 VGA
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
 |
User manual for the Shinybow SB-8180 8 x 8 VGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The Shinybow SB-8180 8 x 8 VGA Matrix Routing Switch with IR & RS-232 Control is designed to work as a switcher for multiple VGA sources and displays via RS-232, the IR remote control, or the push buttons on the front panel. The unit is capable of switching VGA signals between the 8 sources and 8 displays with compatible inputs.With a maximum bandwidth of 250 MHz, this switcher can support HD (high-definition) videos in multiple resolutions of up to 1920 x 1200. This matrix switcher enables you to use various combinations to route any input to any output, eliminating the need to constantly move around VGA input / output cables.This switcher is suitable for Full HDTV or display monitor applications. The switcher can be controlled via the front pushbuttons with LED readout or the IR remote controller. An RS-232 interface is provided for interfacing with third party control. A Windows-based control software package is included to provide complete control of the unit from a PC. - Supports 8 inputs to 8 outputs
- Video bandwidth of 250 MHz
- Good video (VGA-RGBHV) and stereo audio performance
- Low all-hostile crosstalk of -83 dB @ 5 MHz
- ESD rating exceeds 4,000V
- Switching RGBHV in LCD monitors and plasma displays is also supported
- Suitable for Full HD video players and LCD / Plasma monitor displays

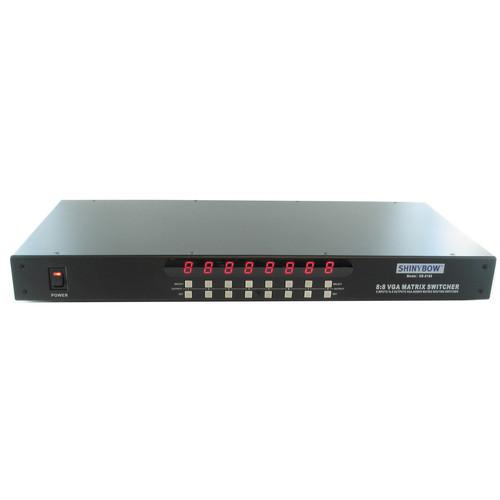

- Direct selection and confirm via front pushbuttons with LED readout

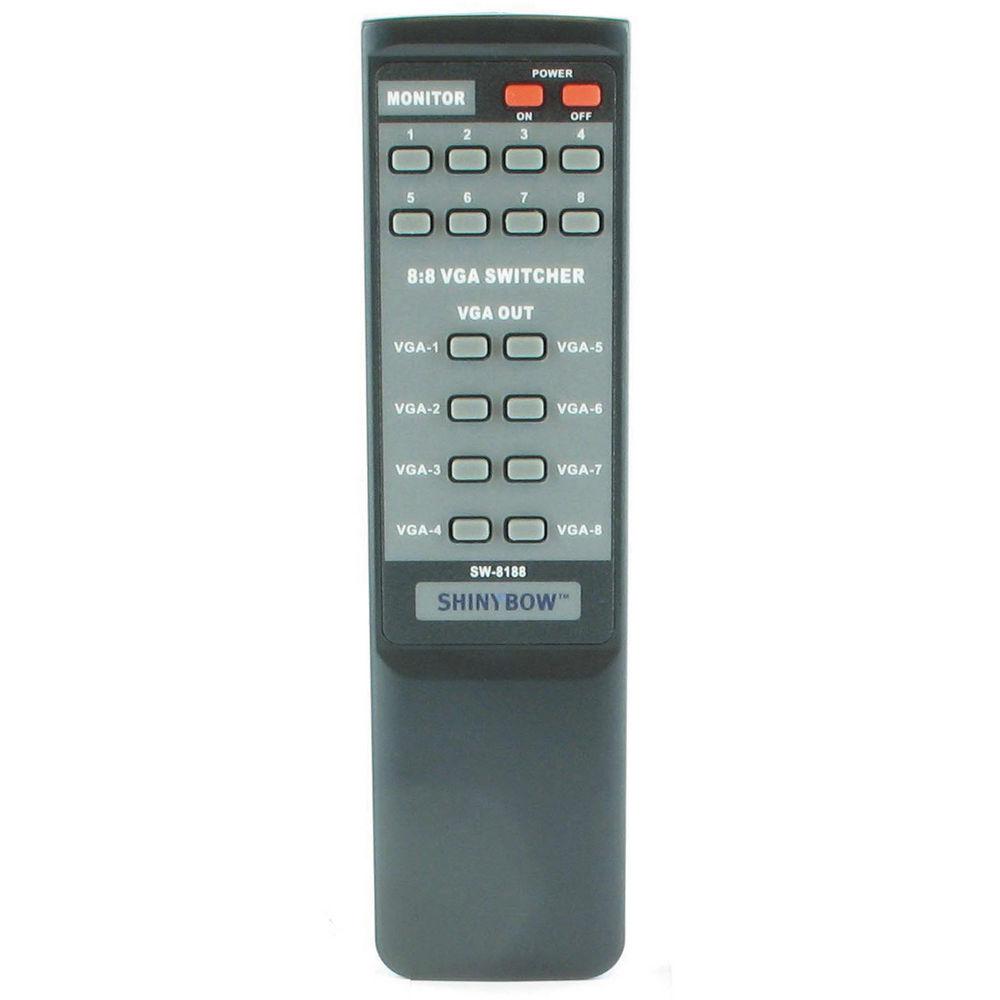

- IR remote control (38 kHz) is included with the unit
- Supports an RS-232 interface control driver for Windows 95/98/2000/XP Operating Systems
- RS-232 protocol list with manual comes attached with the unit
- Supports 19" rack mounting
- Lower power consumption at full load (under 550mA)
- Universal type 100 to 230VAC switching power supply
In the Box Shinybow SB-8180 8 x 8 VGA Matrix Routing Switch with IR & RS-232 Control IR Remote Control 19" Rack Mount RS-232 Driver CD (For Windows 95/98/2000/XP Operating Systems) 12VDC, 500 to 2,000mA Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-8180 8 x 8 VGA Matrix Routing Switch with IR & RS-232 Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-8180 Specs | Switcher | Type: 8 inputs to 8, VGA (RGBHV) matrix switcher | | Video Bandwidth | 250 MHz | | Gain Flatness | 60 MHz, 0.1 dB | | Differential Gain Error | 0.01%, 0.1 dB | | Differential Phase Error | 0.02, 0.1 dB (RL = 150 Ω) | | Settling Time | 15 ns to 0.1% | | All Hostile Crosstalk | -83 dB @ 5 MHz
Channel Crosstalk: -56 dB@ 100 MHz | | Slew Rate | 1,000 V/us, G = +1.2 V step | | Isolation | -100 dB @ 10 MHz (high OFF) | | Output Current | 100 mA | | Low Power Idle | CMOS: 550 uA, quiescent current | | Supported Resolutions | For PC: VGA (640 x 480), SVGA (800 x 600), XGA (1024 x 768), SXGA (1280 x 1024), UXGA (1600 x 1200), and WUXGA (1900 x 1200) | | Controls | IR remote controller (38 kHz), front panel selection buttons with LED readout, and RS-232 PC control | | Safety Approvals | CE, FCC, RoHS (2002/95/EC) | | Power Voltage Input | 12 VDC @ 2 A | | Dimensions (W x D x H) | 17.40 x 7.80 x 1.75" (441.96 x 198.12 x 44.45 mm) | | Net Weight | Approximately 72.3 oz (2.0 kg) (for the unit only, with metal case) | | | | Package Weight | 8.85 lb | | Box Dimensions (LxWxH) | 20.2 x 11.4 x 3.8" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
