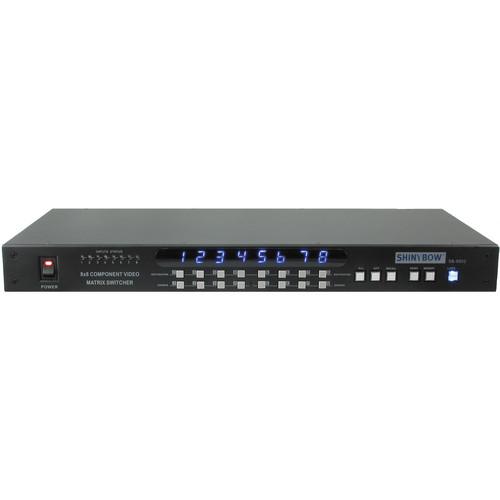

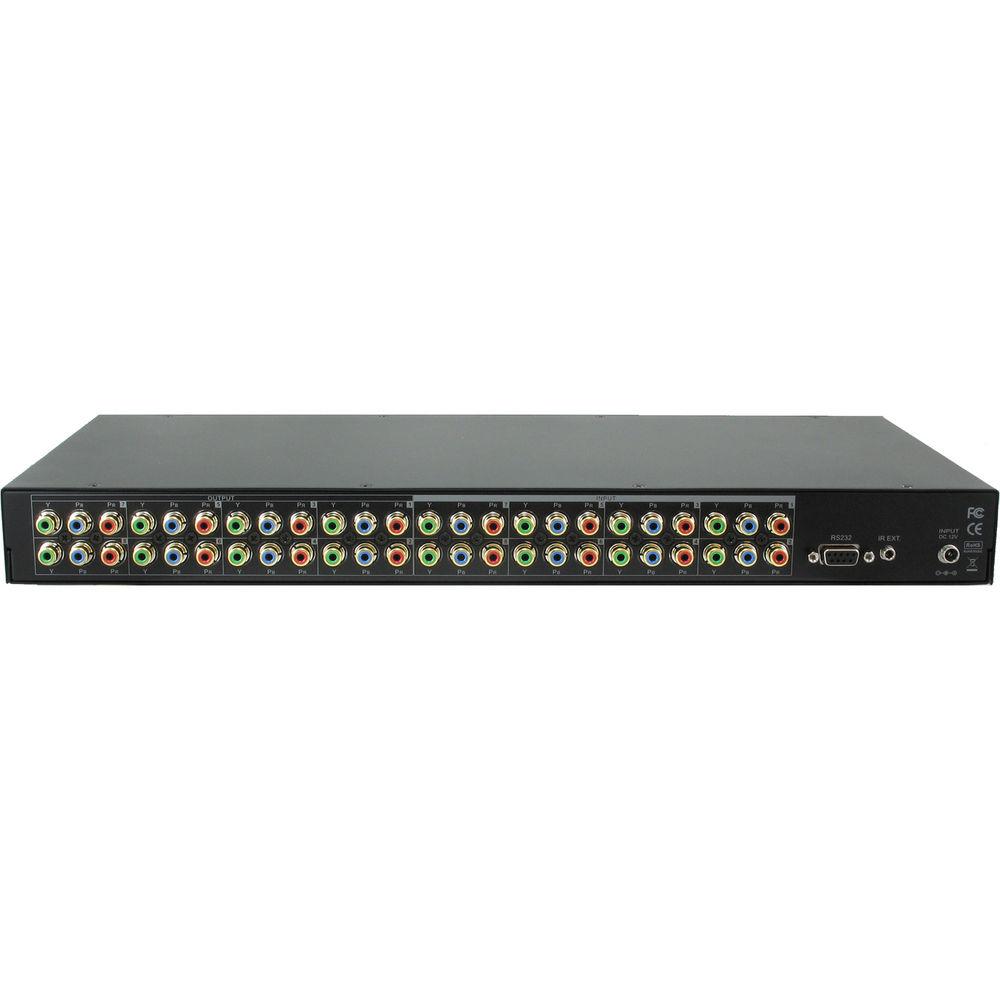

Product description The SB-8802LCM 8 x 8 Component Video Matrix Routing Switcher from Shinybow is used to distribute video via eight component inputs and eight component outputs. Supporting HD resolutions up to 1080p, the SB-8802LCM's component (YPbPr) connectors do not transmit audio. This matrix switcher enables any input to be routed to any output, or one input to be routed to all outputs. A high 325 MHz-bandwidth for each port minimizes the chance of signal degradation. Input selection is via the front panel push buttons, with the included infrared remote control, or using Windows-based RS-232 control.Use the SB-8802LCM for transmitting high-resolution component sources to component destinations such as displays, monitors, projectors, or Cat5 set-top units. The switcher includes an IR extender for control up to a maximum distance of 984'. This unit may be rack-mounted using the included 1 RU bracket, or it may be desktop-mounted. A two-line front panel LCD display indicates input and output-source status. Features - Matrix routing switcher with eight component inputs and eight component outputs
- Supports high-definition resolutions up to 1080p
- A high 325 MHz video bandwidth minimizes any potential signal degradation
- IR extender remote port enables extending IR control up to 984'
- Control via front panel buttons, IR remote control with extender, or an RS-232 Windows-based GUI
- Compatible with all component video devices, displays, and HDTVs
- Supports desktop as well as rack-mounting (19" 1 RU rackmount bracket included)
In the Box Shinybow SB-8802 8 x 8 Component Video Matrix Routing Switcher SW-8802 IR Remote 1U-440L Rackmount Bracket Kit SB-100 IR Extender Receiver Windows RS-232 Driver CD RS-232 Cable AC/DC Adapter (12 VDC, 2A Universal Type) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-8802 8 x 8 Component Video Matrix Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-8802 Specs | Type | Matrix Switcher:
8 x Input
8 x Output | | I/O Signals | Component video (YPbPr), 0.5-1.0 Vpp, DDC 5 Vpp | | Video Bandwidth | 325 MHz (-3 dB), 200 mVpp | | Video Supported | 1080p, 1080i
720p
480p, 480i | | Low All Hostile Crosstalk | -83 dB @ 5 MHz | | IR Control | Maximum Distance: 984' (300 m) | | Gain Control | 60 MHz, 0.1 dB gain flatness | | Chassis Material | Metal | | Power Supply | 12 VDC, 2 A
Universal switch type, 50/60 Hz, 100~230 VAC | | Dimensions (W x D x H) | 17.5 x 8 x 1.75" (44.5 x 20.3 x 4.5 cm) | | Weight | 8.7 lb (3.95 kg) | | | | Package Weight | 8.35 lb | | Box Dimensions (LxWxH) | 20.2 x 11.5 x 3.5" |
