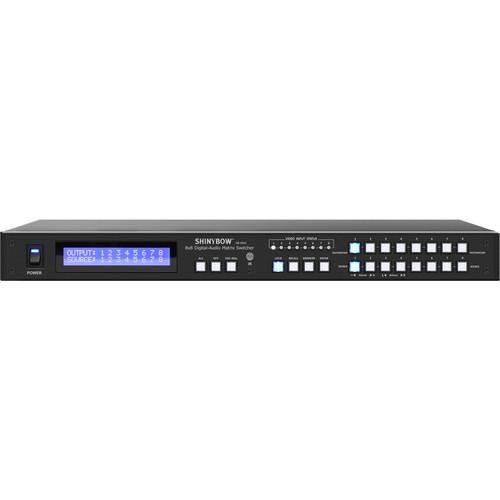

Product description The Shinybow SB-8804 8 x 8 Composite Video Matrix Switcher supports individual volume control on each output (analog audio only). The chassis supports analog stereo audio (left and right) and either digital audio (S/PDIF) or composite video. Volume control is only available on the analog input / output and not digital audio. Volume control can be adjusted via the front panel, included wireless remote or external IR controller. Each input / output supports a bandwidth of 300 MHz, allowing the full range of either video or audio without any signal degradation.
The SB-8804 switcher can be desk or rack mounted using the included 19” (48.26 cm) ear mounts with only 1 RU of space. The power supply has a locking power jack that prevents the plug from accidentally disconnecting from the chassis. It features 8 individual inputs with 8 individual outputs. Since it is a matrix router switcher, any 8 input maybe routed to any 8 outputs, or the same input may be routed to all outputs or any combination. It completely eliminates the need to constantly move around digital audio or composite video, and stereo audio input and output cables.
This matrix switcher is ideally suited for switch audio sources from AV signals from VCRs, camcorders, video game console, LCD television, plasma display monitor audio, and audio amplifier applications. Control is provided via front push buttons with LED readout or IR remote controller. An RS-232 interface is provided for interfacing with third party control. A Windows-based control software package is included to provide complete control of the SB-8804 switcher from a PC. - Supports 8 inputs to 8 outputs
- Good audio switch with digital audio (S/PDIF) and stereo audio performance
- Suitable for switch audio sources from HD high-resolution video player device to LCD / plasma monitor displays audio or audio amplifier
- Direct selection and confirm via front push buttons with LED readout
- Support RS-232 interface control driver for 95 / 98 / 2000 / XP, A Windows-based control software driver package included
- Supports audio 1 to 8 outputs with volume adjustable
- Enclosure type: Supports 19" (48.26 cm) ear; 1 RU rack mountable pane

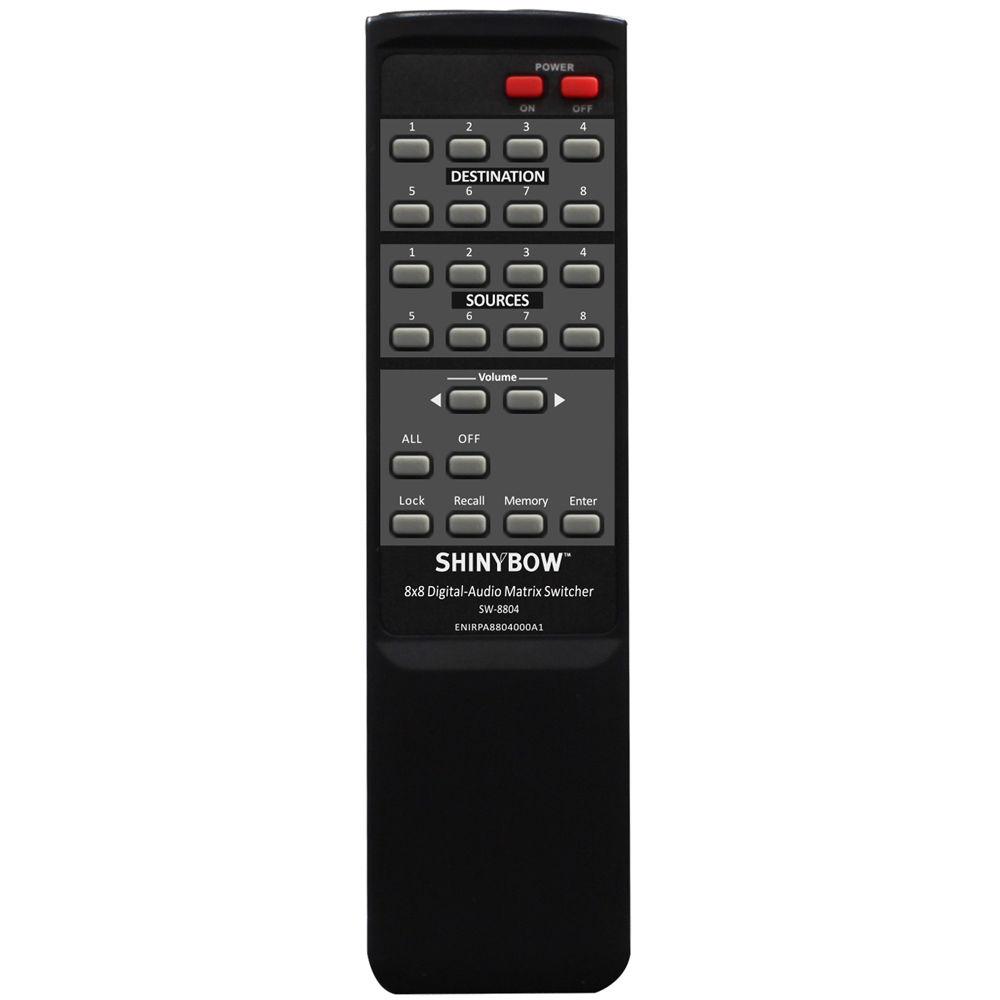

- IR remote control (38 kHz)
- Supports lower power consumed at full load under 1200 mA
- Power supply with a universal-type 100 to 230 VAC switch
In the Box Shinybow SB-8804 8 x 8 Composite Video Matrix Switcher IR Remote Control Rack Mounts RS-232 Driver CD (All Windows Operating Systems) User Guide AC / DC Adapter (12 VDC, 1,000 to 3,000 mA) 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-8804 8 x 8 Composite Video Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

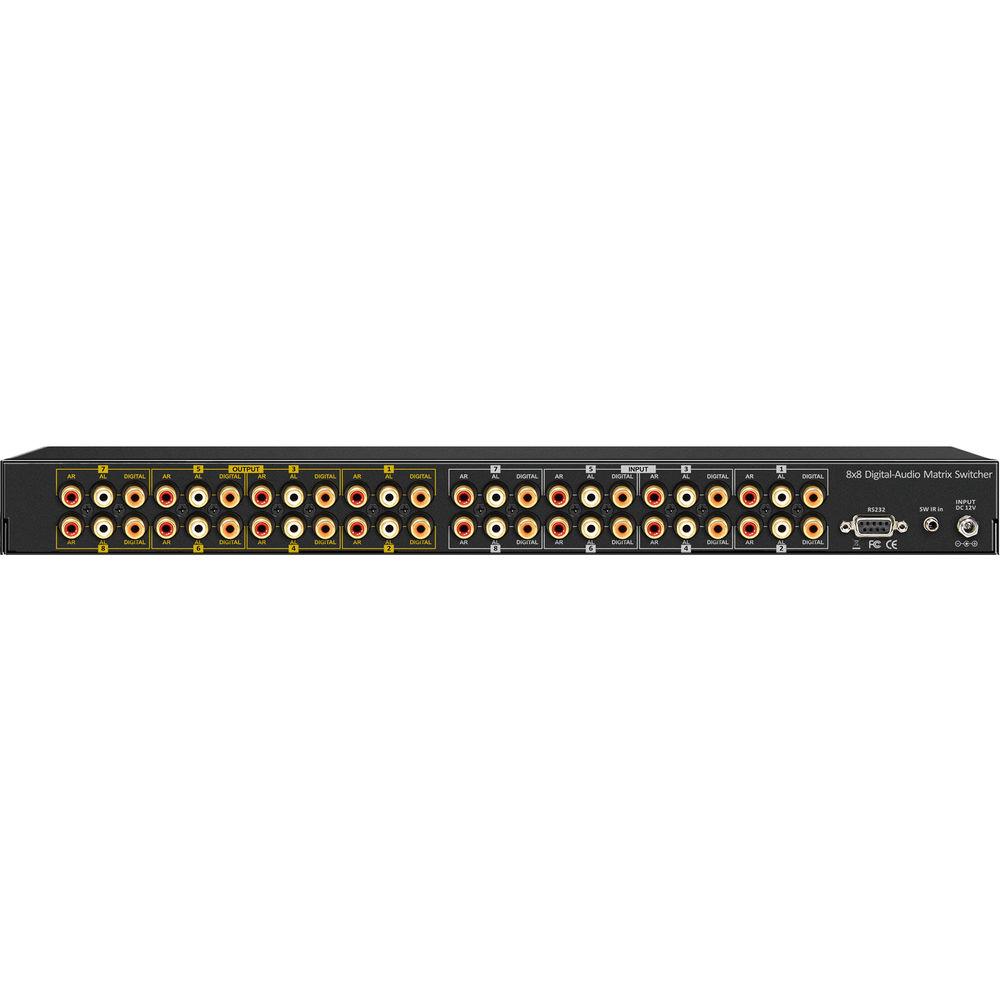

Technical parametersShinybow SB-8804 Specs | Type | 8 inputs to 8 outputs digital / video-audio matrix switcher | | Signals | Digital (S/PDIF) or composite video and stereo audio (AR / AL) | | Audio Bandwidth | Digital Audio: 300 MHz, (-3 dB)
Audio: 60 MHz | | Audio Frequency Response | 20 Hz to 20 kHz | | Differential Phase Error | 0.02, 0.1 dB (RL: 150) | | Settling Time | 15 ns to 0.1% | | All Hostile Crosstalk | -84 dB @ 5 MHz
-54 @ 50 MHz | | Crosstalk | Channel: -56 dB @ 100 MHz | | Slew Rate | 1,000 V/us, G = +1.2 V Step | | Isolation | High Off: -100 dB @ 10 MHz | | Current | Low Quiescent: <20 uA | | Power Voltage Input | 12 VDC @ 2 A | | Controls | IR remote controller (38 kHz), front panel selection buttons with LED readout | | IR Extender | 984.25' (300 m) maximum | | Dimensions (WxDxH) | 17.32 x 7.80 x 1.73" (43.99 x 19.81 x 4.39 cm) | | Weight | 4.75 lb (2.15 kg) with metal case | | | | Package Weight | 8.45 lb | | Box Dimensions (LxWxH) | 20.2 x 11.4 x 2.7" |
