User Manual for Shinybow VGA to S-Video Composite Converter Click to enlarge the picture
Contents of the user manual for the Shinybow VGA to S-Video Composite Converter
- Product category: Signal Converters Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Signal Converters
|
User manual for the Shinybow VGA to S-Video Composite Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|

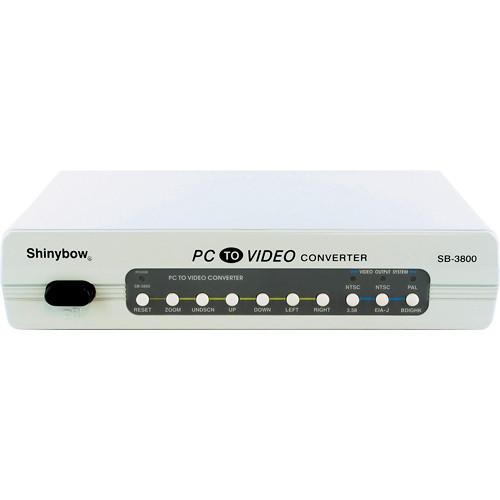

Product description The Shinybow VGA to S-Video/Composite Converter allows you to convert your computer VGA signal to S-Video and composite outputs while also looping out to a VGA output. All three outputs can be used simultaneously and you can also adjust the image with front panel controls such as zoom, pan, and underscan. The system supports NTSC, PAL, PAL-M, and PAL-N output standards and features a maximum VGA input and output resolution of 2048 x 1536 and maximum S-Video and composite resolution of 1280 x 768. - Key Features
-
- VGA input and loopout supporting up to 2048 x 1536 resolution
- S-Video and composite outputs supporting up to 1280 x 768 resolution
- NTSC, PAL, PAL-M, and PAL-N output standards
- Front panel zoom, pan, underscan, and other controls
In the Box Shinybow VGA to S-Video/Composite Converter AC/DC Adapter (12 VDC, 420 mA) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow VGA to S-Video Composite Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-3800 Specs | Input | VGA: 1 x DB-15 (+0.7 V p-p) | | Output | VGA: 1 x DB-15 (+0.7 V p-p)
S-Video: 1 x 4-pin mini-DIN (Y=1 V p-p, C=0.3 V p-p)
Composite: 1 x RCA (+1 V p-p) | | Output Video Standards | NTSC, PAL, PAL-M, PAL-N | | Resolutions | VGA Input Resolution:
640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 2048 x 1536
VGA Output Resolution:
640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 2048 x 1536
S-Video and Composite Video Output Resolution:
640 x 480, 800 x 600, 1024 x 768, 1280 x 768 | | Color Subcarrier Frequency | NTSC: 3.579545 MHz
PAL: 4.433619 MHz
PAL-M: 3.575611 MHz
PAL-N: 3.582056 MHz | | VGA Horizontal Frequency | 31.50 kHz | | PAL/NTSC Line Conversion | NTSC: 525
PAL: 625 | | PAL/NTSC Field Conversion | NTSC: 60 Hz
PAL-M: 60 Hz
PAL: 50 Hz | | Field Memory | 2 MB (16 bit) | | Dimensions | 7.2 x 4.7 x 1.8" / 18.4 x 12 x 4.5 cm | | Weight | 0.9 lb / 0.4 | | | | Package Weight | 2.425 lb | | Box Dimensions (LxWxH) | 11.35 x 10.1 x 3.3" |
