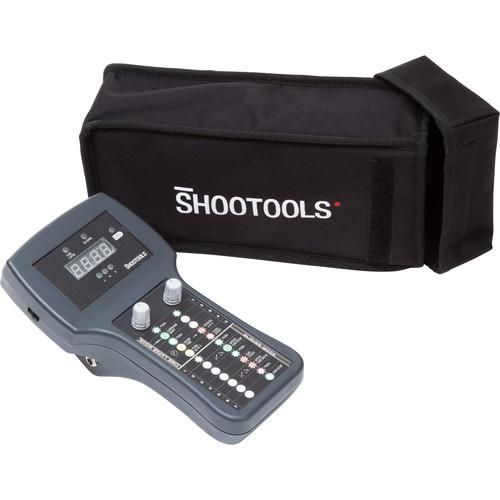

User Manual for ShooTools Motion Plus for Modula Slider Click to enlarge the picture
Contents of the user manual for the ShooTools Motion Plus for Modula Slider
- Product category: Tripods, Supports & Rigs ShooTools
- Brand: ShooTools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ShooTools Tripods, Supports & Rigs
|
User manual for the ShooTools Motion Plus for Modula Slider contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ShooTools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ShooTools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ShooTools product will considerably shorten its lifespan!
|
Product description Upgrade your Modula slider with this Motion Plus kit from Shootools. The kit includes two motors, a controller, and all the necessary cabling to get you started on a motorized sliding platform (camera-specific control cables are available separately). The installation is tool less and easily removable, so you can have your slider function manually or electronically, depending on your preference.The two different motors operate at different speeds and can handle different loads as well. Use the faster "Motor 55" for tracking shots, and the more precise "Motor 09" for time-lapse photography or heavier cameras. Both tracking shots and time-lapses are fully programmable to fit your production. Using the battery built into the controller, you can get up to 22 hours of operation on a single charge in Tracking Shot mode, and about 48 hours in Time-Lapse mode. A bag for the controller is included for protection during transport and storage. - Includes Two Motors
- Two motors, each with different gear ratios, are included. They are easily interchangeable by the operator without tools. If you need fully manual operation, the motors can also be easily removed from the slider.
- Tracking Shot Mode
- Achieve precise tracking shots in this mode. Speed, direction, acceleration, and ramps are all controllable. Tracking shots are programmable, their starting and stopping points are adjustable, and a looping mode (where the carriage constantly travels back and forth) is available. Using a separately available sync cable (depending on the camera in use), recording start/stop can be synchronized to the sliding movement.
- Time-Lapse Mode
- In order to not capture unwanted blur from constant motion, the controller's integrated intervalometer uses "Shoot Move Shoot" technology. "Shoot Move Shoot" synchronizes the motor's steps with the camera shutter actuation so the camera doesn't move while the shutter is open. The pause between the camera movement and the shot can be selected from a range of 1 second to 99 hours.
UPC: 816892020176 In the Box ShooTools Motion Plus for Modula Slider 2 x Motors Controller Bag AC Adapter Link Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ShooTools Motion Plus for Modula Slider in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShooTools SH12030215 Specs | Battery Life | Time-Lapse Mode: Approx. 48 hours
Tracking Shot Mode: Up to 22 hours | | Motors | Motor 55:
Minimum Speed: 0.94" / 24 mm per second
Maximum Speed: 3.93" / 100 mm per second
Horizontal Load: 22 lb / 10 kg
Vertical Load: 5.5 lb / 2.5 kg
Minimum Shift: 0.15" / 0.4 mm
Motor 09:
Minimum Speed: 0.078" / 2 mm per second
Maximum Speed: 0.39" / 10 mm per second
Horizontal Load: 66.1 lb / 30 kg
Vertical Load: 15.4 lb / 7 kg
Minimum Shift: 0.002" / 0.06 mm | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 29.0 x 7.1 x 5.6" |
