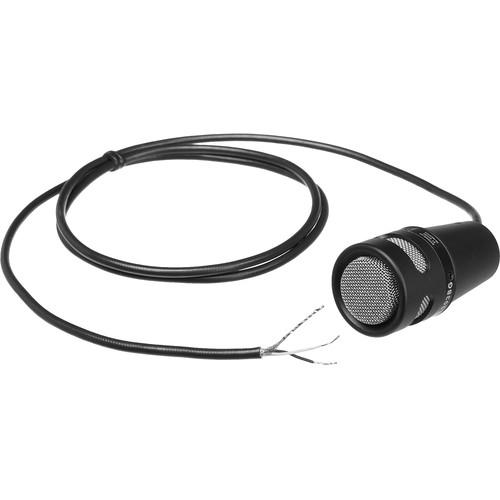

User Manual for Shure 503BG - Cardioid Gooseneck Dynamic Computer Voice Recognition Microphone Click to enlarge the picture
Contents of the user manual for the Shure 503BG - Cardioid Gooseneck Dynamic
- Product category: Paging & Security Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Paging & Security Microphones
|
User manual for the Shure 503BG - Cardioid Gooseneck Dynamic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description Developed for computer voice recognition applications, the 503BG microphone offers excellent voice fidelity while reducing background noise. Also use the 503BG in other close-talking applications such as paging and talkback.
The 503BG features a low-impedance, moving coil type transducer with an integral humbucking coil and an attached two-conductor shielded cable with a built-in strain relief. It produces a frequency response with an essentially constant output voltage over the voice spectrum when used close to the sound source.
The 503BG's case is aluminum with a black enamel finish. It mounts to a gooseneck, a fixed pipe or a microphone stand using a standard 5/8"-27 thread. - Optimized performance in voice processing and computer voice recognition applications.
- Smooth frequency response with excellent fidelity in the voice range.
- Cardiod pickup pattern and close-talking operation keep unwanted signals and background noise at low levels.
- Constant output over voice spectrum when close talked.
- Humbucking coil minimizes undesirable hum effects such as CRT interference.
- Low-impedance design permits long cable runs in extreme hum fields.
- Small unobtrusive design does not interfere with CRT visibility.
- Rugged and reliable for years of consistent operation.
UPC: 042406051989 In the Box Shure 503BG - Cardioid Gooseneck Dynamic Computer/Voice Recognition Microphone 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure 503BG - Cardioid Gooseneck Dynamic Computer Voice Recognition Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure 503BG Specs | Transducer | (Close Talking) Dynamic | | Polar Pattern | Cardioid | | Frequency Response | 100 Hz - 7 kHz | | Power Requirements | None Dynamic, Requires No Phantom or Battery Power | | Output Impedance | 170 Ohms, (Actual) | | Output Connectors | Unterminated, (Bare Wire - 2 Conductor Shielded) | | Applications | Paging, Dispatch, Talkback, Computer and Voice Recognition Applications | | Dimensions | Microphone: 6.2 x 1.375" (67 x 34.6mm) LxDiameter
Cable: 4' (1.2m) | | Weight | 4.5 oz. (128 g) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 7.5 x 5.1 x 3.2" |
