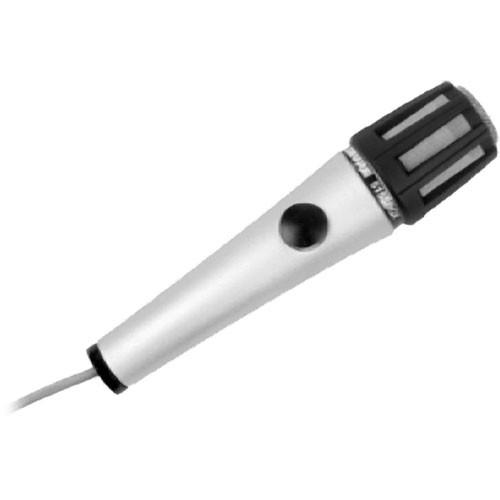

User Manual for Shure 515BGX Cardioid Handheld Microphone for Fixed Mounting and Paging with Push-To-Talk Switch Click to enlarge the picture
Contents of the user manual for the Shure 515BGX Cardioid Handheld Microphone for
- Product category: Paging & Security Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Paging & Security Microphones
|
User manual for the Shure 515BGX Cardioid Handheld Microphone for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure 515BGX is a rugged handheld microphone intended for gooseneck or fixed mount with a 5/8"-27 thread. The frequency response is tailored to eliminate low frequency noise and capture speech with maximum intelligibility. The cardioid polar pattern suppresses feedback and noise from the off-axis sections of the capsule. The 515BGX features a permanently attached with a three-conductor untermintated lead for soldering custom connections. The microphone is a perfect choice for paging and other communication applications. - Optimized Frequency Response
- The 515BSM is intended for capturing speech and the frequency response is optimized to maximize intelligibility.
- Cardioid Polar Pattern
- The cardioid polar pattern effectively minimizes noise and off-axis feedback.
- Shock-Mounted Cartridge
- The shock-mounted cartridge minimizes handling noise.
UPC: 042406051958 In the Box Shure 515BGX Cardioid Handheld Microphone for Fixed Mounting and Paging with Push-To-Talk Switch (Untermintated) 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure 515BGX Cardioid Handheld Microphone for Fixed Mounting and Paging with Push-To-Talk Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure 515BGX Specs | Transducer | Dynamic | | Polar Pattern | Cardioid | | Frequency Response | 80Hz to 15kHz | | Dynamic Range (Typical) | Not Specified By Manufacturer | | Signal-to-Noise Ratio | Not Specified By Manufacturer | | Maximum Input Sound Level | Not Specified By Manufacturer | | Power Requirements | Dynamic Microphone, External Power Not Required | | Output Impedance | 150 ohms rated (180 ohms actual) | | Output Connectors | Untermintaed Lead | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | Microphone: (6.5 x 1.5") (16.5 x 3.75cm) (Length x Diameter)
Cable: 6' (1.8m) (Length) | | Weight | 315 g (11.1 oz) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 10.3 x 5.0 x 3.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 90 owners. Add your rating and experience with the product.
