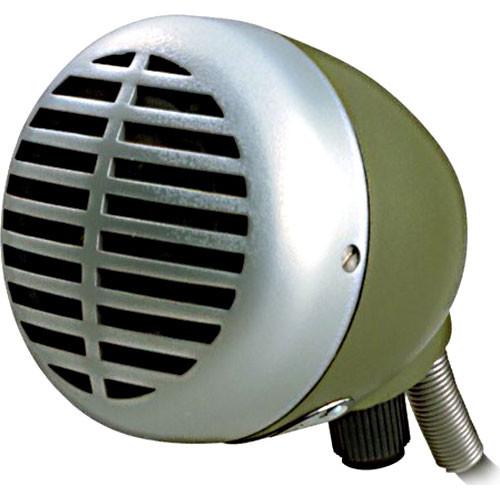

User Manual for Shure 520DX "Green Bullet" Harmonica Microphone Click to enlarge the picture
Contents of the user manual for the Shure 520DX "Green Bullet" Harmonica Microphone
- Product category: Instrument Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Instrument Microphones
|
User manual for the Shure 520DX "Green Bullet" Harmonica Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description Legendary among harmonica players for its classic blues harp sound, the Shure 520D's tradition is carried on by the Shure 520DX "Green Bullet" Harmonice Microphone, which has a contoured size and shape that fits perfectly between harmonica and hands. - The classic 'blues harp' microphone
- Fits perfectly between harp and hands
- Rugged, dynamic design that requires no power
- Omni-directional pickup pattern
- Volume control knob allows musicians to adjust volume to fit each musical situation
- Rugged, dynamic cartridge with very good response
- Supplied with 1/4" connector
UPC: 042406051934 In the Box Shure 520DX "Green Bullet" Harmonica Microphone 20' (6.1 m ) Two Conductor Shielded Cable with Standard 1/4" Phone Plug Attached (Supplied Wired for High- Impedance, Unbalanced Connection) 2 Year Warranty User Manual PDF 2.4mbuxvuxvecxxtsyuveeswaubxadyauv Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure 520DX "Green Bullet" Harmonica Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure 520DX Specs | Transducer | Pressure Gradient Dynamic | | Polar Pattern | Omnidirectional | | Frequency Response | 100 Hz - 5 kHz | | Power Requirements | None Dynamic, Requires No Phantom or Battery Power | | Output Impedance | High, Unbalanced | | Output Connectors | 1/4" Unbalanced Type
Note: The 520DX can be rewired for low impedance, but this disables the volume control. Contact the Shure Applications Group at (847) 866-2525 for more information. | | Applications | Connect the 520DX directly into a guitar amplifier to produce the classic blues harp sound. Use the following guidelines: - The volume control on the microphone should be turned down before plugging it into an amplifier. As you move away from the amplifier, the volume can be turned up.
- Adjust the microphone's volume control knob during performances as needed. For example, when switching from playing rhythm to lead or to place the microphone on standby between sets.
- To avoid feedback, maintain as much distance as possible from monitors or loudspeakers. Adjust the volume of monitors or loudspeakers at the mixing console so that no feedback is present when the volume control knob on the harmonica microphone is at its maximum setting.
- NOTE: The volume setting of the guitar amplifier may have a significant effect on the overall tone produced. Experiment with different microphone and amplifier volume settings to achieve the desired effect.
| | Dimensions | 3.5 x 2.5" (82.6 x 63mm) LxDiamster | | Weight | (Including Attached Cable) 26 oz (737g) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 10.2 x 5.2 x 3.1" |
