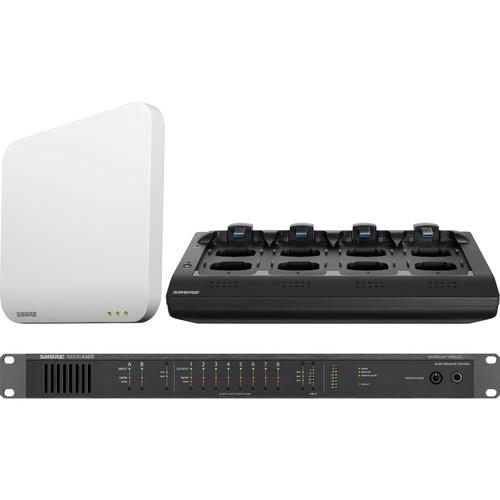

Shure 8-Channel Microflex Non-Gooseneck System

User Manual for Shure 8-Channel Microflex Non-Gooseneck System

• Product category: Audio Conferencing Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure Audio Conferencing

Product description

• Shure MXWNCS8 8-Port Networked Charging Station The MXWNCS8 8-Port Networked Charging Station from Shure is designed to provide networked charging for up to 8 Microflex wireless transmitter units. Thanks to its networking abilities, the MXWNCS8 can display charge time info to networked computers in addition to being able to assign channels to docked transmitters.
  • • Station accepts all Microflex Wireless transmitters
    • Charge status indicators: 5-segment LEDs on the unit display charge status individually for every docked microphone
    • Remote charge status monitoring: Ethernet connection to the system enables remote monitoring of battery charge status in hours and minutes via the control software or third party control systems
    • Transmitter linking: Assign docked wireless microphones to channels on an Access Point Transceiver by simply pressing "link"
    • Rapid charge times: Reaches 50% charge in one hour and fully charges transmitters in two hours
    • Overcharge protection: Smart recharging circuitry safeguards against battery damage and extends life cycles
  UPC: 042406249850
• Shure MXWAPT8 8-Channel Access Point Transceiver The MXWAPT8 8-Channel Access Point Transceiver from Shure is a bi-directional transceiver designed for use in Shure's Microflex wireless systems. It receives and sends up to 8 channels of AES 256-bit encrypted transmissions to and from compatible transmitters and audio network interfaces in an AV environment. The unit itself is wall and ceiling mountable and has a paintable cover, allowing it to blend in to its environment.

  The MXWAPT8 is Ethernet compatible allowing for PoE and Dante network compatibility. It can be connected with additional units for up to 32 compatible channels.
  • • Slim profile: Lightweight, discreet unit with paintable cover to match interior room colors and blend into AV environments
    • Includes wall/ceiling mounting plate and connects to the system over single Ethernet cable (PoE compatible)
    • Plenum rated: Meets rigorous fire safety test standards for installation above drop ceiling tiles
    • Scalable configurations: Multiple units can be combined to support configurations of up to 32 compatible channels
    • Bi-directional wireless: Provides return channel audio to wireless transmitters and enables real time remote control of all wireless microphone settings
    • Automated frequency coordination: Automatically scans available spectrum, coordinates clean frequency assignments, and moves channels away from unexpected interference
    • Dante digital networked audio: Transports low latency digital audio received from wireless microphones over Cat5e cable to any other Dante-equipped device
    • Encrypted wireless: AES 256-bit encryption for secure transmission
    • Selectable output power: Optimize spectrum usage by selecting the appropriate wireless output power for the desired operating range
    • Diagnostic LEDs: Provide easy visual reference to system activity and indicate power, wireless connection, and network audio status
  UPC: 042406273527
• Shure MXWANI8 8-Channel Audio Network Interface The MXWANI8 8-Channel Audio Network Interface from Shure is designed to connect and distribute Shure's Microflex wireless system to conference room AV systems. It is Dante network compatible and features 8 analog outputs as well as a 4-port gigabit Ethernet switch. The MXWANI8 can be controlled through either its front-panel or through a networked Mac or PC running the Microflex Wireless Control software.

  The unit can provide power over Ethernet (PoE) through its first port, allowing you to power such components as the Microflex MXWAPT transceiver. You can monitor your audio via the front-panel 1/4" headphone output.
  • • Four port gigabit switch: Optimized port configurations for connection to the Access Point Transceiver and Networked Charging Stations, third party control systems, and corporate networks
    • Ethernet connectivity: Send audio and control signals over long cable runs of up to 300 feet or anywhere over a corporate network
    • Power over Ethernet: Port 1 of the rear panel switch supplies power over Ethernet to the Access Point Transceiver for simplified installation
    • Corporate uplink mode: Link to the corporate network for remote control of system settings while keeping audio off the network for security and to reduce bandwidth
    • Front panel controls: Mute or solo channels and set input/output levels easily from the front panel
    • PC/Mac software control: Access the Microflex Wireless Control Software from a networked computer for input/output levels and port configuration
    • Dante networking: Transports low latency digital audio received from wireless microphones over Ethernet to any other Dante-equipped device
    • Headphone output: Solo audio signal on any channel
  UPC: 042406250115

• MXWNCS8 8-Port Networked Charging Station tacxvzqextaaxfevbdbbrfxrterbfufeedy
• Limited 2-Year Warranty

• MXWAPT8 8-Channel Access Point Transceiver tacxvzqextaaxfevbdbbrfxrterbfufeedy

• MXWANI8 8-Channel Audio Network Interface

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Shure MXWNCS8 8-Port Networked Charging Station

  Charge Time	MXW1, MXW6, MXW8: 50% = 1 hour, 100% = 2 hours MXW2: 50% = 1.5 hours, 100% = 3 hours
  Network Interface	10/100 Mbps Ethernet
  Power Requirement	15 V DC @ 3.3 A maximum, supplied by external power supply (tip positive)
  Housing	Molded plastic, cast zinc
  Dimensions (HxWxD)	2.7 x 13.5 x 7.25" (68 x 343 x 184 mm)
  Weight	6.4 lb (2.9 kg)

  Box Dimensions (LxWxH)	15.039 x 12.756 x 3.465"

• Shure MXWAPT8 8-Channel Access Point Transceiver

  Network Interface	RJ45: Gigabit Ethernet, Dante digital audio
  Plenum	Rating: UL 2043
  Power Requirement	Power over Ethernet (PoE) Class 0, 6.5 W
  Antenna Type	Internal, spacial diversity, circular polarization
  Housing	Molded plastic, cast zinc
  Dimensions (HxWxD)	1.35 x 6.70 x 6.70" (24 x 170 x 170 mm)
  Weight	Unit: 1.86 lb (845 g) Paintable Cover: 0.2 lb (85 g) Mounting Bracket: 0.15 lb (68 g)

  Box Dimensions (LxWxH)	8.268 x 7.638 x 3.15"

• Shure MXWANI8 8-Channel Audio Network Interface

  Frequency Response	20 Hz to 20 kHz
  Dynamic Range	Analog-to-Dante: 113 dB (20 Hz to 29 kHz, A-weighted, typical) Dante-to-Analog: 110 dB (20 Hz to 29 kHz, A-weighted, typical)
  Output Noise	Line: −84.5 dBV (20 Hz to 29 kHz, A-weighted, typical) Aux: −95.2 dBV (20 Hz to 29 kHz, A-weighted, typical) Mic: −106.5 dBV (20 Hz to 29 kHz, A-weighted, typical)
  THD + N	< 0.05% (20 Hz to 20 kHz@ +4dBu analog input, -10 dBFS digital input)
  Polarity	Non-inverting, any input to any output

  Configuration	Active balanced
  Impedance	10.6 kΩ
  Clipping Level	Line: 23.8 dBV (minimum) Aux: 10.8 dBV (minimum)

  Configuration	Active balanced
  Impedance	310 Ω
  Clipping Level	Line: 26.2 dBV Aux: 16.2 dBV Mic: −3.8 dBV
  Headphone Output	1/4" (6.3 mm) TRS, 100 mW, 350 Ω, dual mono (will drive stereo phones)

  AD/DA Conversion	24-bit, 48 kHz
  Latency	Analog-to-Dante: 0.21 ms (Estimated Nominal, ±0.1 ms) Dante-to-Analog: 0.24 ms + TN (Estimated Nominal, ±0.1 ms) TN = Network latency in milliseconds, as set in Dante Controller Note: Dante network latency is typically associated with the receiving device

  Network Interface	Four-Port Gigabit Ethernet Switch, Dante digital audio
  Uplinks	Port: Selectable, blocks multicast traffic (Port 4)
  PoE	Provided on Port 1 to power MXWAPT
  Cable Requirements	Cat 5e or higher, shielded, 100 m maximum between network devices
  Network Addressing Capability	DHCP, link-local, static

  Power Requirements	100 to 240 V AC, 50-60 Hz, 1 A
  Housing	Steel; Extruded aluminum
  Temperature Range	Operating: 0 to 145°F (-18 to 63°C) Storage: -20 to 165°F (-29 to 74°C)
  Dimensions (H x W x D)	1.7 x 19.0 x 14.4" (44 x 483 x 366 mm)
  Weight	7.1 lb (3.2 kg)

  Box Dimensions (LxWxH)	22.3 x 15.6 x 2.7"
