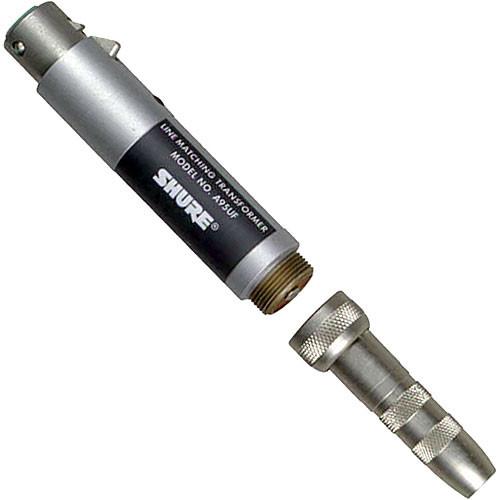

User Manual for Shure A95UF - Line Matching Transformer for 75 to 300 Ohm Mics - In-Line XLR Female to 1 4" Barrel Click to enlarge the picture
Contents of the user manual for the Shure A95UF - Line Matching Transformer
- Product category: Level Matching Transformers Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Level Matching Transformers
|
User manual for the Shure A95UF - Line Matching Transformer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure a 95UF Transformer provides 24 dB of voltage gain and may be used in reverse (high- to low- impedance). It has a professionally balanced 3-pin XLR female low-impedance connector. An Amphenol MC1M-type output connector with mating 1/4" female phone jack complete the transformer. - The transformer permits use of very long microphone cables with either low- or high-impedance microphones.
- The transformer prevents high-frequency loss, level loss, and pickup of noise and hum.
- The A95UF is furnished with a three-socket professional audio connector on the low-impedance end for mating with the Canon XL Series, Switchcraft A3 or equivalent.
UPC: 042406053839 In the Box Shure A95UF - Line Matching Transformer for 75 to 300 Ohm Mics - In-Line XLR Female to 1/4" (Jack and Plug) Barrel 2 Year Limited Warranty 1/4 in. Phone Plug and Phone Jack Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure A95UF - Line Matching Transformer for 75 to 300 Ohm Mics - In-Line XLR Female to 1 4" Barrel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure A95UF Specs | Input Impedance | 75 to 300 ohms | | Output Jitter | 41 kohms | | Frequency Response | 20Hz to 20kHz | | Input Connectors | XLR (female) | | Output Connector | 1/4 in. (female) phone | | Weight | Not specified by manufacturer | | Dimensions | 3/4 in. (19mm) diameter; 3 1/2 in. (89mm) long | | | | Package Weight | 0.26 lb | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 1.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
