User Manual for Shure Active UHF Directional Antenna with FlexiMount Base Kit Click to enlarge the picture
Contents of the user manual for the Shure Active UHF Directional Antenna with
- Product category: Antennas Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Antennas
|
User manual for the Shure Active UHF Directional Antenna with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

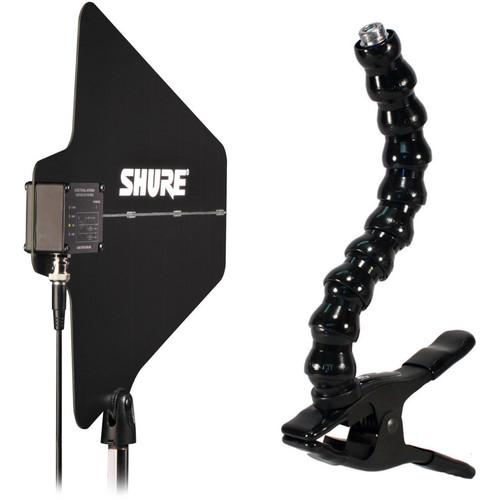

Product description The Active UHF Directional Antenna with FlexiMount Base Kit from consists of a Shure UA874 UHF antenna and a Stage Ninja Scorpion MIC12CB gooseneck mount for microphone (clamp base). The stand securely mounts the Shure antenna and can be accurately positioned for optimum audio results. It is designed for quick setup in several environments. - Shure UA874 Active Directional Antenna The Shure UA874 Active Directional Antenna uses a log periodic dipole array to offer enhanced reception when directed toward the desired coverage area. An integrated amplifier and four gain settings compensate for varying degrees of coaxial cable signal loss. The UA874 can be mounted on a microphone stand, suspended from the ceiling or mounted to a wall using the integrated swivel adapter bracket.
- Compatible with all Shure wireless receivers and antenna distribution systems that provide 12 V DC bias
- Four-position gain selector switch
- Low-noise signal amplifier that compensates for transmission loss in coaxial cable
- Integrated threaded adapter that mounts easily to microphones stands
UPC: 042406256308 - Stage Ninja Scorpion Gooseneck Mount for Microphone (Clamp Base) The Stage Ninja Scorpion Gooseneck Mount for Microphone (Clamp Base) is a 12" (30.4 cm)-long, 360° / ¾” Gooseneck arm designed to mount a microphone. It features an industrial-grade steel Clamp Base with dual step rubber jaws to prevent marring that can hold onto a stand or a rod.
- 12" (30.4 cm)-long Gooseneck mount for a microphone
- 360°, ¾" Gooseneck for easy setup of your microphone
- An industrial-grade steel Clamp Base to hold onto a stand or a rod
- Dual step rubber jaws to prevent marring
UPC: 896507001448 In the Box - UA874 Active Directional Antenna ycsvztexzrzzaxwwee
- 2-Year Limited Warranty
- Stage Ninja - Scorpion Gooseneck Mount for Microphone (Clamp Base)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure Active UHF Directional Antenna with FlexiMount Base Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure UA874 Active Directional Antenna
| Connector Type | BNC (female) | | Impedance | 50 ohms | | Reception Pattern | 70° (3 dB beam width) | | Overload Intercept Point | >30 dBm | | Antenna Gain | 7.5 dBi (on axis) | | Signal Gain | Switchable
Active: +12 dB, +6 dB (±1 dB)
Passive: 0 dB, -6 dB (±1 dB) | | RF Overload LED Threshold | -5 dBm (RF overload LED does not operate for passive gain settings) | | Power Requirements | 10 - 15 V DC bias from coaxial connection (75 mA) | | Operating Temperature Range | 0 to 145°F (-18 to 63°C) | | Storage Temperature Range | -20 to 165°F (-29 to 74°C) | | Dimensions (WxHxD) | 14.1 x 12.4 x 1.4" (359 x 316 x 36 mm) | | Weight | 11.2 oz (317 g) | | | | Box Dimensions (LxWxH) | 18.3 x 14.6 x 3.7" | - Stage Ninja Scorpion Gooseneck Mount for Microphone (Clamp Base)
| | | Box Dimensions (LxWxH) | 11.0 x 8.0 x 1.0" |
