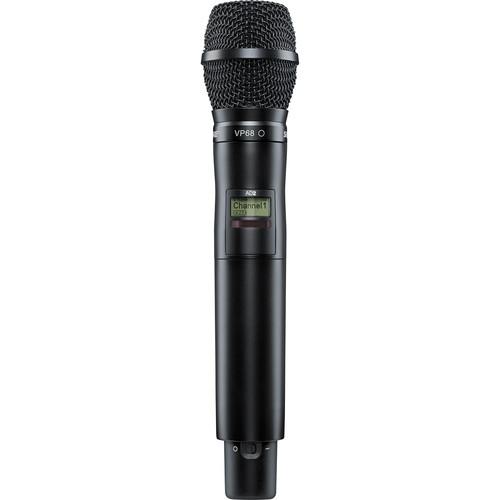

User Manual for Shure AD2 VP68-G57 Axient Digital Wireless Handheld Transmitter with VP68 Mic Head Click to enlarge the picture
Contents of the user manual for the Shure AD2 VP68-G57 Axient Digital Wireless
- Product category: Wireless Transmitters Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Transmitters
|
User manual for the Shure AD2 VP68-G57 Axient Digital Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description - Shure Axient Digital
- Shure Axient Digital Pushes the Limits of Rf
The AD2/VP68-G57 Axient Digital Wireless Handheld Transmitter with VP68 Mic Head from Shure features two transmission modes, encryption-enabled secure transmission, and runs on AA or SB900A li-ion rechargeable batteries. The Axient digital handheld transmitter can be used when paired with a wireless receiver (sold separately) in capturing audio for interview, speech, and vocal applications. The digital transmitter's transmission modes include Standard for optimal coverage or High Density for maximum system-channel count and coverage. It is built with rugged metal construction, which makes it durable for the rigors of the road. In addition, there are external contacts for charging the unit with an optional docked charger. - Backlit LCD with easy-to-navigate menu and controls
- AA or SB900A Li-ion rechargeable batteries for convenient power options
- Rugged metal construction
- Low-profile, lockable power switch
- External contacts for docked charging
- Two transmission modes: Standard for optimal coverage, and High Density for maximum system-channel count and robust coverage
- Encryption-enabled, secure transmission
- Shure VP68 omnidirectional wireless condenser microphone capsule
UPC: 042406526326 In the Box Shure AD2/VP68-G57 Axient Digital Wireless Handheld Transmitter with VP68 Mic Head (G57: 470 to 616 MHz) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure AD2 VP68-G57 Axient Digital Wireless Handheld Transmitter with VP68 Mic Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure AD2 Specs | System | Digital | | Microphone Capsule | VP68 with omnidirectional polar pattern | | Frequency Band | G57: 470 to 616 MHz | | Tuning Range | 184 MHz | | Transmission Mode | Standard
High Density | | Channels | Standard Mode:
17 Ch/6 MHz
23 Ch/8 MHz
High Density Mode:
47 Ch/6 MHz
63 Ch/8 MHz | | Encryption | Yes | | Power and Battery Options | AA, SB900/SB900A li-ion rechargeable (fuel gauge capable) | | Charging Type | SBC100, SBC200 & SBC800 (for SB900/SB900A), SBRC networked rack charger | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
