Product description - Shure Axient Digital
- Shure Axient Digital Pushes the Limits of Rf

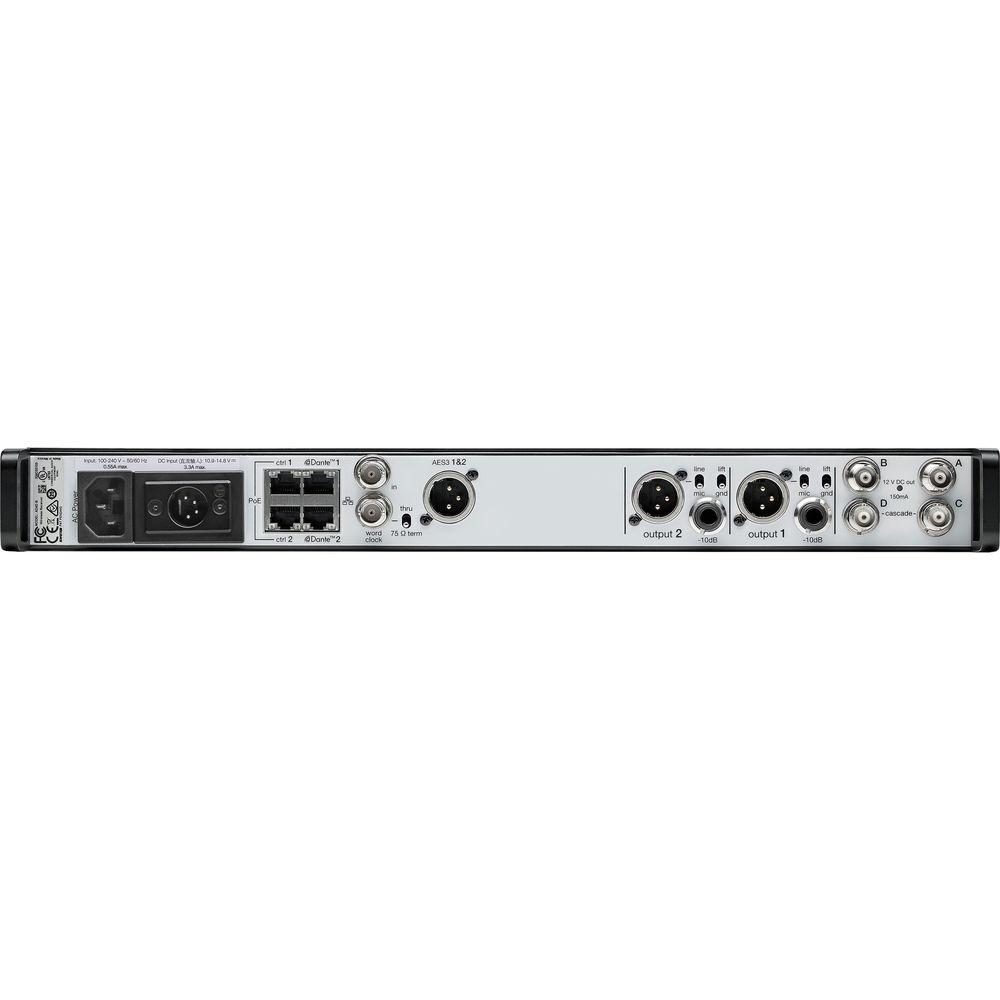

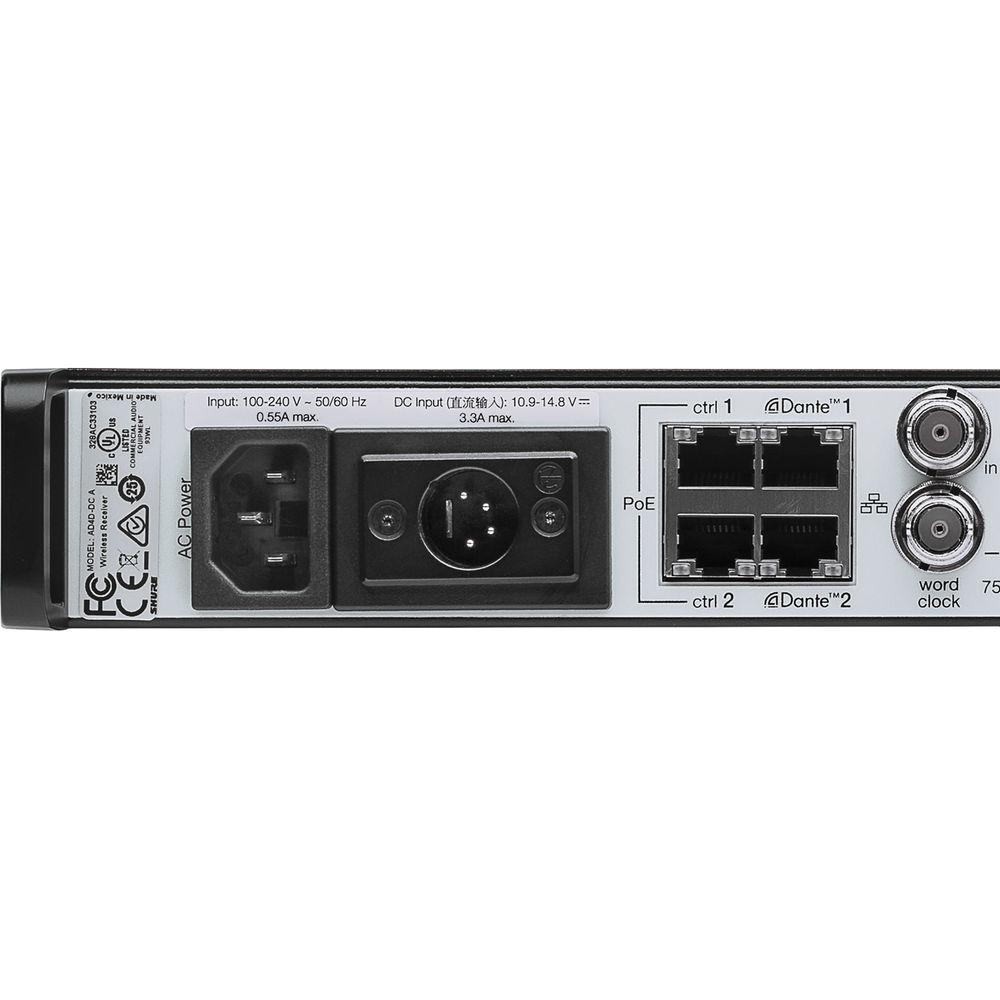

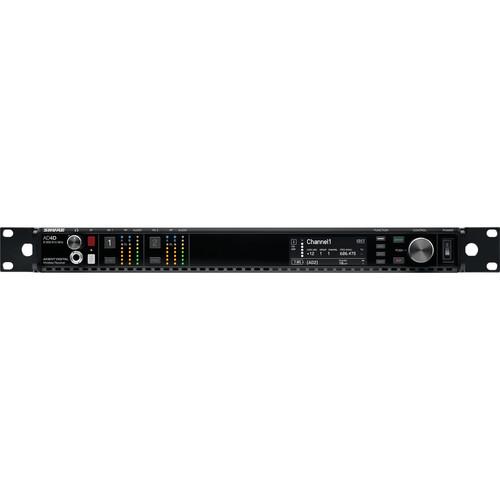

The AD4D-DC Two-Channel Digital Wireless Receiver from Shure features wide tuning, low latency, and high-density mode (HD), ensuring a solid performance in the most challenging RF environments. It can be used when paired with up to two microphones and AD series or ADX series transmitters (sold separately) to capture audio for live stage, theater, rehearsal, and other sound reinforcement applications. The digital wireless receiver's other features include: Redundant DC power input modification, networked control, AES3 + AES67 + Dante output. In addition, signal routing options bring an updated level of management and flexibility to your entire workflow. Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation. - Wide tuning range up to 184 MHz
- True digital diversity reception per channel for drop-out resistance
- Networked control with Wireless Workbench software and ShurePlus Channels iOS app
- Front panel headphone jack enables Dante Cue and Dante Browse monitoring
- Configurable Ethernet switch for redundant Dante or AES67 digital output
- Switchable XLR and AES3 outputs
- Channel quality meter displays RF signal-to-noise
- Dual-channel receiver with redundant DC power input modification
UPC: 042406529495 In the Box Shure AD4D-DC Two-Channel Digital Wireless Receiver (A: 470 to 636 MHz) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure AD4D-DC Two-Channel Digital Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure AD4D-DC Specs | Housing | Steel, extruded aluminum | | Power Requirements | 100 to 240 VAC, 50 to 60 Hz; 0.26 A max. | | Thermal Dissipation | Maximum: 23 W (78 BTU/hr)
Idle: 15 W (52 BTU/hr) | | | | Gain Adjustment Range | -18 to +42 dB in 1 dB steps (plus mute setting) | | Configuration | 1/4" / 6.35 mm: Transformer-coupled balanced (tip=audio, ring=no audio, sleeve=ground)
XLR: Transformer-coupled balanced (1=ground, 2=audio +, 3=audio -) | | Impedance | XLR Line Out: 100 Ohms | | Output | Full Scale 200-kOhm Load:
1/4" (6.35 mm): +8 dBV
XLR: LINE setting= +18 dBV
MIC Setting: -12 dBV | | Mic/Line Switch | 30 dB pad | | Phantom Power Protection | Yes | | | | Networking Interface | 10/100 Mb/s, 1 Gb/s, Dante digital audio | | Network Addressing Capability | DHCP or Manual IP address | | Ethernet Cabling | 328' / 100 m maximum length | | | | Connector Type | BNC
Note: For connection of one additional receiver in the same band | | Configuration | Unbalanced, passive | | Impedance | 50 Ohms | | Insertion Loss | 0 dB, typical | | | | Spurious Rejection | >80 dB, typical | | Connector Type | BNC | | Impedance | 50 Ohms | | Bias Voltage | 12 to 13.5 VDC, 150 mA maximum, per antenna, switchable on/off | | RF Carrier Frequency Range | AD4D=A: 470 to 636 MHz | | Dimensions (H x W x D) | 1.7 x 19.0 x 13.1" / 4.3 x 48.3 x 33.3 cm | | Weight | 10.1 lb / 4.6 kg without antennas |
