Product description Axient Digital: A Shure Bet for Worry-Free Wireless Systems! Read More The AD4DUS-A Axient Digital Dual-Channel Digital Wireless Microphone System with Two Bodypack Transmitters and Lavalier Mics Kit from B&H is the professional choice for capturing speech in broadcast TV, interview, or lecture applications with maximum signal stability and pristine audio clarity.

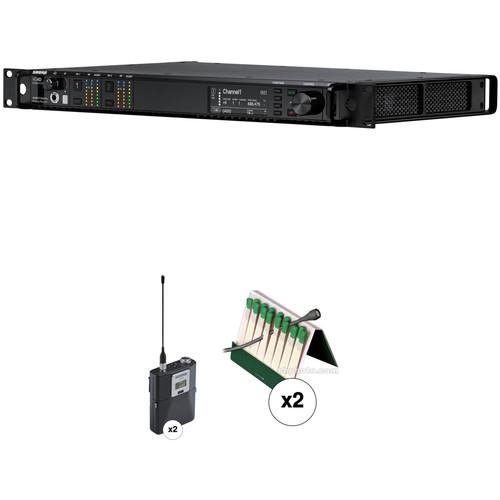

The kit includes an Axient Digital 2-channel receiver, two AD1 bodypack transmitters, and two Countryman B3 omnidirectional lavalier microphones. With impressive low latency, transparent frequency response, and wide dynamic range, the Axient Digital system lets you take the stage confidently without worrying about signal loss, even in the most complex, crowded RF environments. - Shure AD4DUS-A Axient Dual-Channel Wireless Receiver with Power and RF Accessories (A: 470 to 636 MHz) The AD4DUS-A Axient Dual-Channel Wireless Receiver with Power and RF Accessories from Shure offers true digital diversity reception per channel for drop-out resistance, and a wide tuning range of up to 184 MHz. It can be used when paired with compatible Shure AD and ADX transmitters (sold separately) to deliver professional digital audio for live stage, theater, houses of worship, or other sound reinforcement applications. The receiver is built with a front-panel headphone jack that enables Dante Cue and Dante Browse monitoring. Each channel features switchable AES3 and XLR outputs with a 1/4" TRS output also available. A channel quality meter displays RF signal-to-noise information so you can always know the status of your output signal. Some other features include locking AC connectors, and a configurable Ethernet switch for redundant Dante digital output. In addition, Shure's Wireless Workbench app offers total control with an enhanced interface, access to RF spectrum and timeline plotting, frequency coordination, and live performance monitoring. Control and monitor options can be extended to a mobile device with the ShurePlus Channels iOS app. Finally, the AD4DUS-A Axient Dual-Channel Wireless Receiver with power and RF accessories opens the gateway to a full range of features, from high-performance RF and transparent digital audio to software control.
- Front-panel headphone jack enables Dante Cue and Dante Browse monitoring
- Configurable Ethernet switch for redundant Dante digital output
- Switchable XLR and AES 3-pin outputs
- Channel quality meter displays RF signal-to-noise
- Cascade antenna ports can be switched to Quadversity inputs
- Selectable transmission modes and power levels enable optimum range and audio quality
UPC: 042406501538 - 2 x Shure AD1-G57 Axient Digital Wireless Bodypack Transmitter with TA4 Connector (G57: 470 to 616 MHz) The AD1-G57 Axient Digital Wireless Bodypack Transmitter with TA4 Connector from Shure features two transmission modes, encryption-enabled, and runs on AA or SB900A li-ion rechargeable batteries. It can be used when paired with a microphone and wireless receiver (sold separately) in capturing audio for interview, live stage, and video applications. The digital transmitter's transmission modes includes Standard for optimal coverage and High Density for maximum system-channel count and coverage. It is built with a detachable 1/4 wave antenna and has a magnesium alloy design, which makes it lightweight to wear. In addition, there are external contacts for charging the unit in an optional docked charger.
- Two transmission modes: Standard for optimal coverage, and High Density for maximum system-channel count and robust coverage
- Encryption-enabled, secure transmission
- Detachable 1/4-wave antenna
- Magnesium alloy design for lightweight wear
- AA or SB900A Li-ion rechargeable batteries for convenient power options
- External contacts for docked charging
UPC: 042406526036 - 2 x Countryman B3 Omni Lavalier Mic, Standard Sens, with TA4F Connector for Shure Wireless Transmitters (Black) The black B3 Omnidirectional Lavalier Mic, Standard Sens, with TA4F Connector for Shure Wireless Transmitters from Countryman is a water-resistant, miniature lavalier microphone for capturing high-quality audio. It can be used in a variety of applications such as a tie-clip lavalier in interviews, a hair-hidden mic for drama, a water-resistant mic for water sports and hurricane reporting, or simply a small mic to hide in a prop flower vase. The capsule is resistant to moisture, which allows for placement in the hair or on bare skin, and its omnidirectional polar pattern minimizes handling noise, wind noise, and plosives (popping). Furthermore, a variety of skin-matching colors are available. The B3's cable terminates to a TA4F connector for direct connection to a Shure AXT100+, BLX1, FP1, GLXD1, PG1, PGX1, PGXD1, QLXD1, SLX1, UC1, ULX1, ULXD1, UR1, or UR1M wireless bodypack transmitter. Additionally, a carrying case, two cable clips, a windscreen, and three protective caps are also included.
- Unobtrusive
- Looks great when you want to see it, virtually disappears when you don't. The B3 is easily hidden in hair or on costumes, with five colors to match clothing, hair, and skin tones. Use a felt tip marker to color the white caps for near-perfect concealability. Never suffer the hassle and degraded sound quality of under-clothing miking again.
- Rugged and Reliable
- The B3 is resistant to makeup, sweat, and moisture when used with the supplied protective caps, and works well in hair or on the body. The protective caps are easily removed for cleaning or replacement, and the aramid-reinforced cable gives it world-class survivability.
- Refined Sound Quality
- The B3 provides high-quality audio with low distortion at SPL up to 150 dB on 48V phantom power. The aramid cable and thin diaphragm combine to offer low handling noise. The flat frequency response accurately captures voice or instruments, and the small size makes the B3 easy to position for ambient noise and feedback rejection.
- Versatile
- Changeable protective caps let you shape the frequency response for different situations or to match other microphones. Versions are available for different speaking or singing styles, with high overload capability for recording instruments.
- Sensitivity
- Standard, for most uses.
In the Box - AD4DUS-A Axient Dual-Channel Wireless Receiver with Power and RF Accessories (A: 470 to 636 MHz) fryzqcydbtbqfeec
- Limited 2-Year Warranty
- 2 x AD1-G57 Axient Digital Wireless Bodypack Transmitter with TA4 Connector (G57: 470 to 616 MHz)
- 2 x Countryman - B3 Omni Lavalier Mic, Standard Sens, with TA4F Connector for Shure Wireless Transmitters (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure AD4DUS-A Axient Digital Dual-Channel Wireless Microphone System with Two Bodypack Transmitters and Lavalier Mics Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure AD4DUS-A Axient Dual-Channel Wireless Receiver with Power and RF Accessories (A: 470 to 636 MHz)
| System | Digital | | Receiver Configuration | Dual | | Frequency Band | A: 470 to 636 MHz | | Frequency Range | 20 Hz to 20 kHz | | Tuning Range | 184 MHz | | Transmission Mode | Standard
High density | | Antenna Configuration | True diversity | | Channels | Standard Mode:
17 Ch/ 6 MHz
23 Ch/ 8 MHz
High Density Mode:
47 Ch/ 6 MHz
63 Ch/ 8 MHz | | Interference Detection | Yes | | Encryption | Yes | | Dynamic Range | XLR Output: >120 dB, A-weighted, system gain @ +10
Dante Output: >130 dB, A-weighted, System Gain @ +10 | | Audio Output | Onboard Analog: 2 x XLR, 2 x 1/4" (6.3 mm) TRS
Onboard Digital: AES 3-pin XLR (2 channel), Dante and AES67 | | Power Input | 100 to 240 V, 50/60 Hz | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 22.9 x 17.6 x 3.0" | - 2 x Shure AD1-G57 Axient Digital Wireless Bodypack Transmitter with TA4 Connector (G57: 470 to 616 MHz)
| System | Digital | | Frequency Band | G57: 470 to 616 MHz | | Tuning Range | 184 MHz | | Transmission Mode | Standard
High Density | | Channels | Standard Mode:
17 Ch/6 MHz
23 Ch/8 MHz
High Density Mode:
47 Ch/6 MHz
63 Ch/8 MHz | | Power and Battery Options | AA, SB900/SB900A li-ion rechargeable (fuel gauge capable) | | Charging Type | SBC100, SBC200 & SBC800 (for SB900/SB900A), SBRC networked rack charger | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 12.7 x 4.9 x 3.4" | - 2 x Countryman B3 Omni Lavalier Mic, Standard Sens, with TA4F Connector for Shure Wireless Transmitters (Black)
| | | Sound Field | Mono | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 Hz | | Sensitivity | 12.0 mV/Pa | | | | Output Connector | TA4F/Mini XLR | | Cable Length | 5.0' / 152.40 cm | | Operating Voltage | 3 V ± 12 V | | Length | 0.23" / 5.84 mm | | Diameter | 0.18" / 4.57 mm | | Weight | 0.01 oz / 0.34 g | | | | Box Dimensions (LxWxH) | 9.1 x 5.2 x 1.5" |
