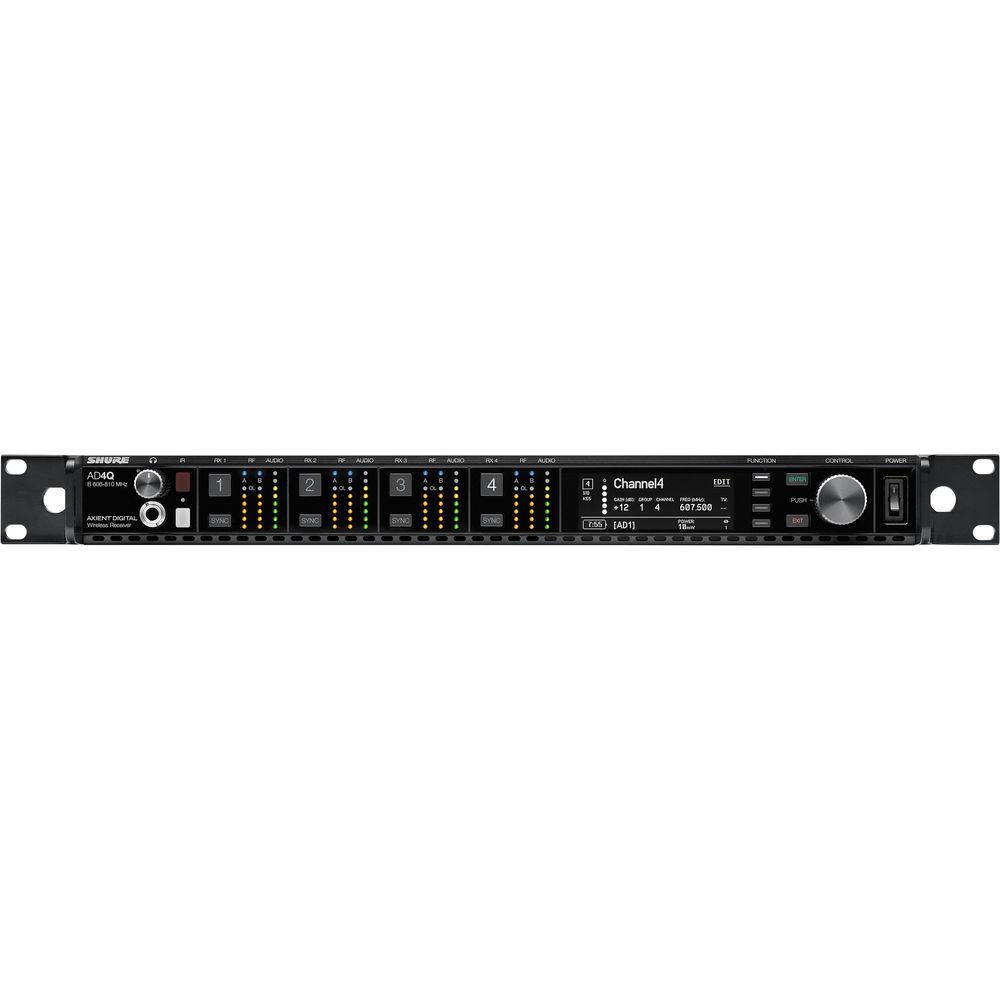

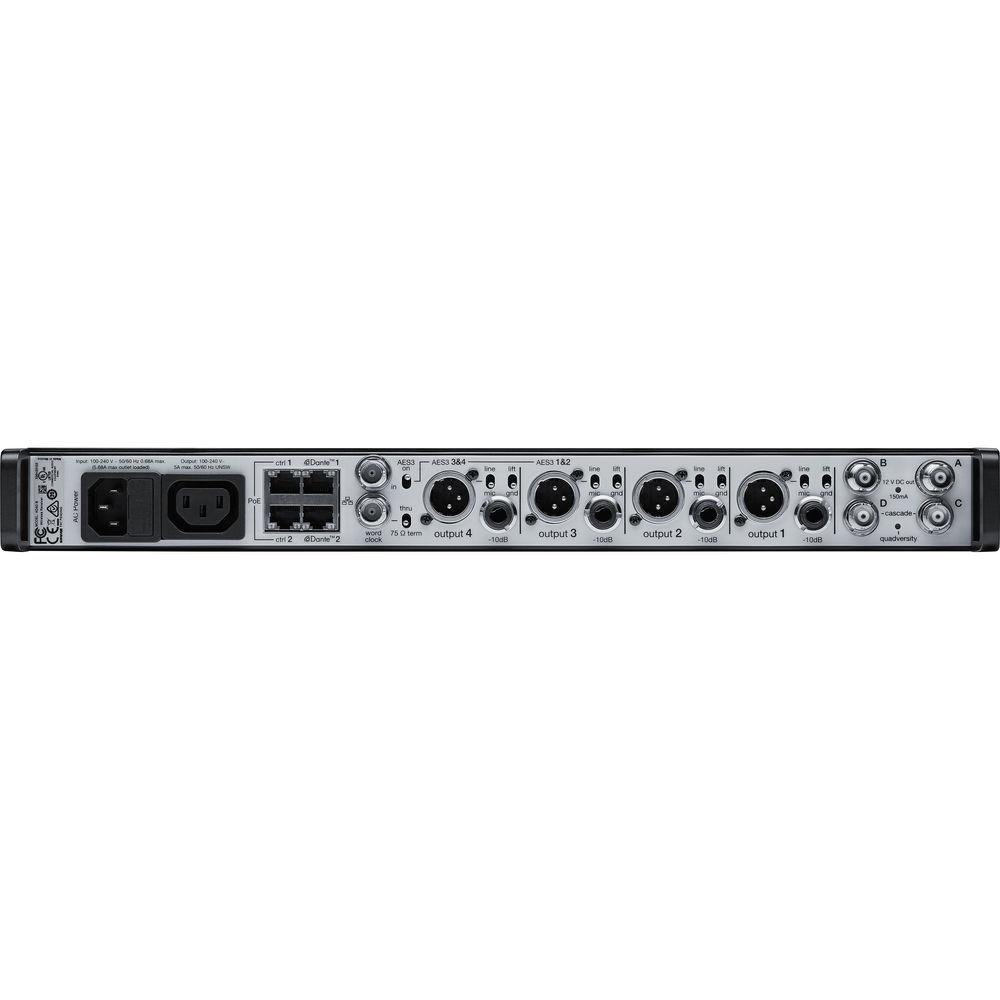

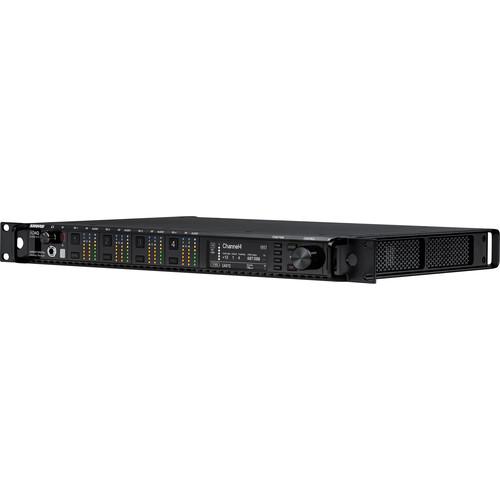

User Manual for Shure AD4QUS-A Axient Four-Channel Wireless Receiver with Power and RF Accessories Click to enlarge the picture
Contents of the user manual for the Shure AD4QUS-A Axient Four-Channel Wireless Receiver
- Product category: Wireless Receivers Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Receivers
 |
User manual for the Shure AD4QUS-A Axient Four-Channel Wireless Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description - Shure Axient Digital
- Shure Axient Digital Pushes the Limits of Rf
The AD4QUS-A Axient Four-Channel Wireless Receiver with Power and RF Accessories from Shure offers true digital diversity reception per channel for drop-out resistance, and a wide tuning range of up to 184 MHz. It can be used when paired with compatible Shure AD and ADX transmitters (sold separately) to deliver professional digital audio for live stage, theater, houses of worship, or other sound reinforcement applications. The receiver is built with a front-panel headphone jack that enables Dante Cue and Dante Browse monitoring. Each channel features switchable AES3 and XLR outputs with a 1/4" TRS output also available. A channel quality meter displays RF signal-to-noise information so you can always know the status of your output signal. Some other features include locking AC connectors, and a configurable Ethernet switch for redundant Dante digital output. In addition, Shure's Wireless Workbench app offers total control with an enhanced interface, access to RF spectrum and timeline plotting, frequency coordination, and live performance monitoring. Control and monitor options can be extended to a mobile device with the ShurePlus Channels iOS app. Finally, the AD4QUS-A Axient Four-Channel Wireless Receiver with power and RF accessories opens the gateway to a full range of features, from high-performance RF and transparent digital audio to software control. - Front-panel headphone jack enables Dante Cue and Dante Browse monitoring
- Configurable Ethernet switch for redundant Dante digital output
- Switchable XLR and AES 3-pin outputs
- Channel quality meter displays RF signal-to-noise
- Cascade antenna ports can be switched to Quadversity inputs
- Selectable transmission modes and power levels enable optimum range and audio quality
UPC: 042406501347 In the Box Shure AD4QUS-A Axient Four-Channel Wireless Receiver with Power and RF Accessories (A: 470 to 636 MHz) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure AD4QUS-A Axient Four-Channel Wireless Receiver with Power and RF Accessories in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure AD4QUS Specs | System | Digital | | Receiver Configuration | Quad | | Frequency Band | A: 470 to 636 MHz | | Frequency Range | 20 Hz to 20 kHz | | Tuning Range | 184 MHz | | Transmission Mode | Standard
High density | | Antenna Configuration | True diversity | | Channels | Standard Mode:
17 Ch/ 6 MHz
23 Ch/ 8 MHz
High Density Mode:
47 Ch/ 6 MHz
63 Ch/ 8 MHz | | Interference Detection | Yes | | Encryption | Yes | | Dynamic Range | XLR Output: >120 dB, A-weighted, system gain @ +10
Dante Output: >130 dB, A-weighted, System Gain @ +10 | | Audio Output | Onboard Analog: 4 x XLR, 4 x 1/4" (6.3 mm) TRS
Onboard Digital: 2 x AES 3-pin XLR (4 channel), Dante and AES67 | | Power Input | 100 to 240 V, 50/60 Hz | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 15.9 lb | | Box Dimensions (LxWxH) | 22.9 x 17.7 x 3.1" |
