Product description - Shure Axient Digital
- Shure Axient Digital Pushes the Limits of Rf

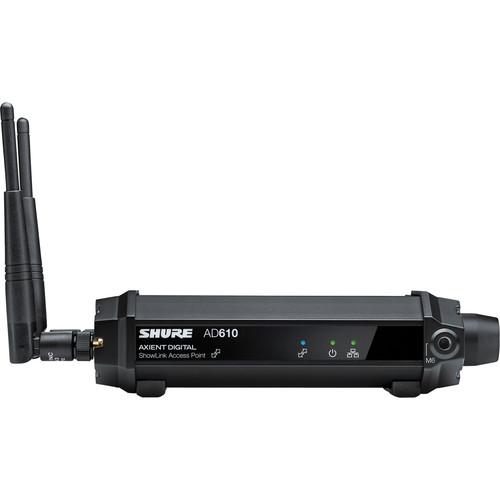

The AD610 ShowLink Wireless Access Point from Shure enables real-time remote control of all ShowLink-enabled Axient transmitters, including both ADX and AXT series models. The access point allows comprehensive management of transmitter parameters from the receiver or Wireless Workbench using 2.4 GHz (IEEE 802.15.4) wireless communication. All parameter changes occur without interruption to the performer.
Multiple access points can extend the operational range or increase the number of transmitters supported on the ShowLink network. The access point features true diversity antenna inputs along with mounting points for 1/4"-20 and M6 x 1.0 threads. - Wireless network connectivity between all linked transmitters and access points
- Enables real-time wireless remote control of up to 24 transmitters per access point
- ShowLink offers ability to adjust gain, change frequencies, mute signals, and more
- True Diversity antenna scheme maintains a robust link in the 2.4 GHz frequency range
- Automatic channel selection scans the 2.4 GHz range for the best channel
- Easy transmitter authentication, recognizes linked transmitters upon IR sync
- Provides coverage area approximately the same as the transmitter's range
- Automatic hand-offs between multiple access points extend operating range
- Automatic frequency agility moves the network to the best available channel if signal degrades
- Compatible with Axient Digital ADX series and Axient analog systems
- Receives power via Power over Ethernet (PoE) network connection or from an external power supply
UPC: 042406501316 In the Box Shure AD610 ShowLink Wireless Access Point Wireless Microphone Clip 5/8" to 3/8" Thread Adapter Shielded 25' Ethernet Cable Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure AD610 ShowLink Wireless Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure AD610 Specs | Antennas | 2 x Omnidirectional 2.4 GHz | | Capacity | 24 Axient ShowLink transmitters (AXT or ADX models) | | Network Type | IEEE 802.15.4 | | Frequency Range | 2.40 to 2.4835 GHz (16 channels) | | RF Output Power | 10 dBm ERP / 20 dBm ERP | | Working Range | 500 to 1600' / 150 to 500 m | | Antenna Connector | 2 x SMA | | Antenna Impedance | 50 Ohms | | RF Sensitivity | -106 dBm, typical (integrated antenna) | | Network Interface | Ethernet 10/100 Mb/s | | Network Addressing Capability | DHCP or manual IP address | | Mounting | WA371 microphone clip or 1/4"-20 thread mount | | Power Requirement | Power over Ethernet (PoE) Class 1: 36 to 57 VDC/VAC
External Power Supply: 15 VDC, 600 mA, double insulated | | Certifications | WEEE Directive 2002/96/EC, as amended by 2008/34/EC
RoHS Directive 2011/65/EU | | Housing | Extruded aluminum | | Protection Rating | IPX3 | | Operating Temperature | 0 to 140°F / -18 to 60°C | | Storage Temperature | -20 to 165°F / -29 to 74°C | | Dimensions | 7.4 x 4.0 x 1.8" / 19.0 x 10.2 x 4.7 cm without antennas | | Weight | 16.3 oz / 464 g without antennas | | | | Package Weight | 4.05 lb | | Box Dimensions (LxWxH) | 16.2 x 11.2 x 4.3" |
