Product description - Shure Axient Digital
- Shure Axient Digital Pushes the Limits of Rf

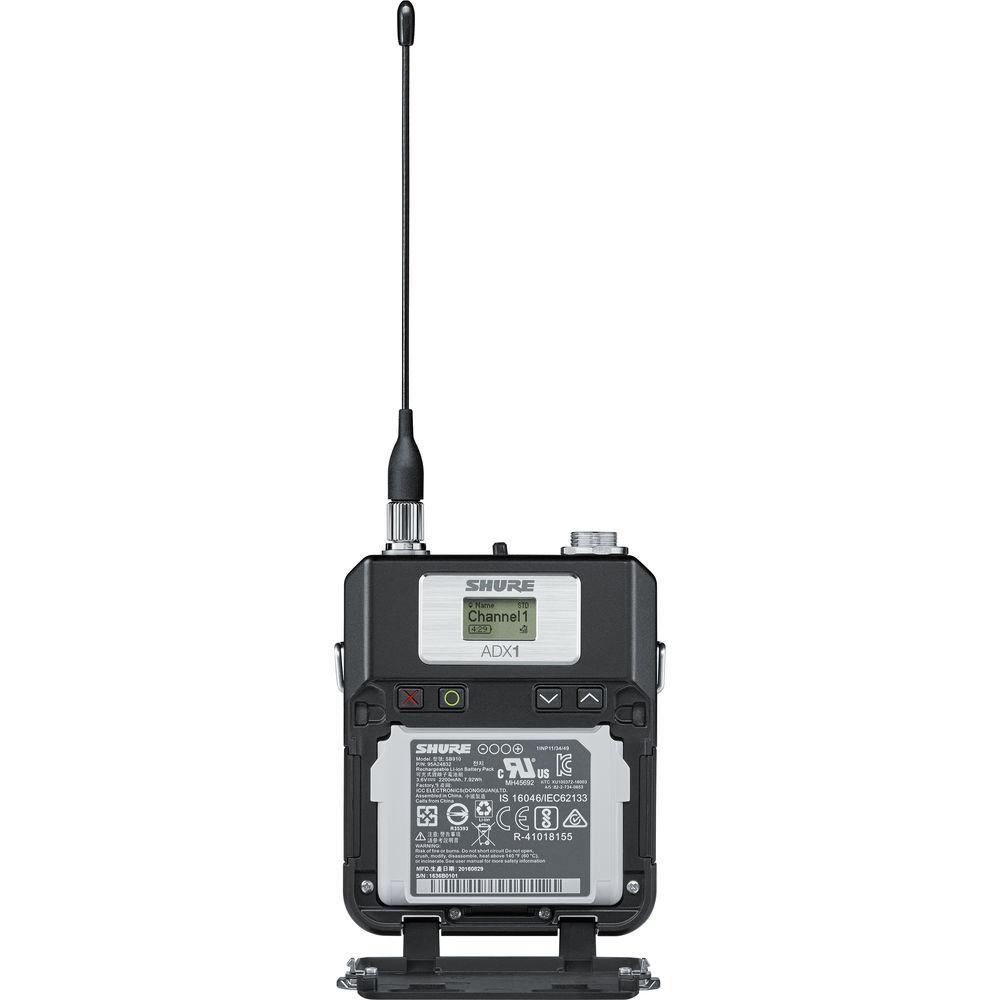

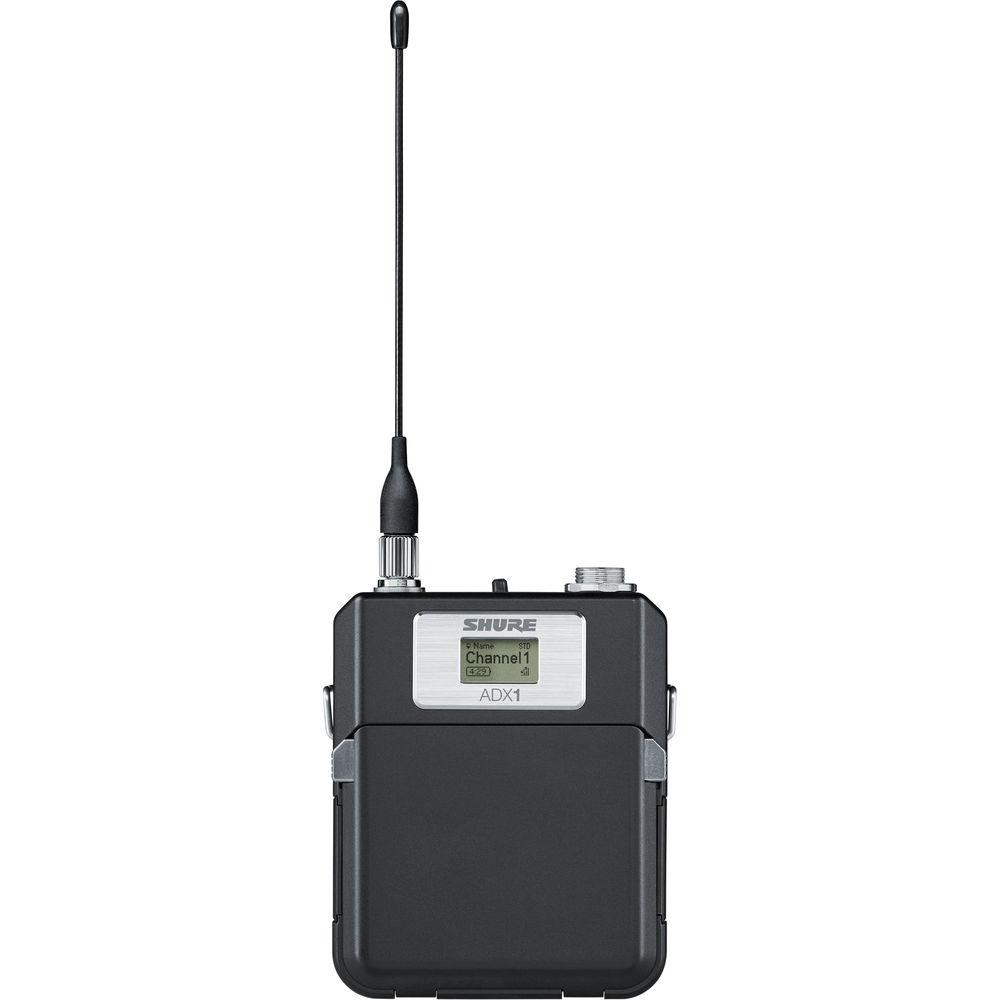

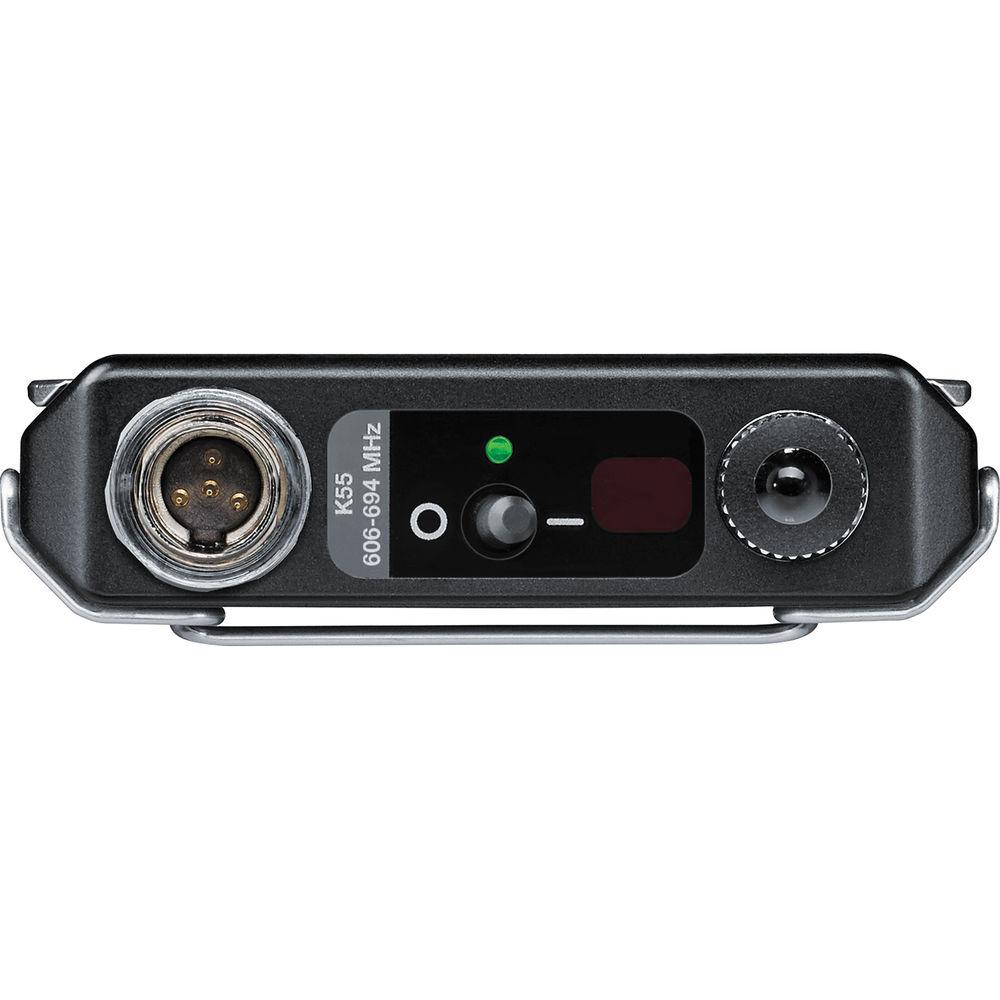

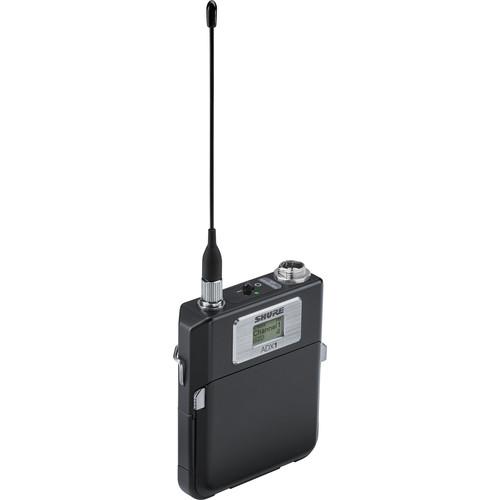

The ADX1-G57 ShowLink-Enabled Bodypack Transmitter from Shure is a UHF wireless transmitter with a TA4M input connector for Axient Digital Wireless Systems (sold separately). This transmitter can be used to capture audio when paired with a wireless receiver and optional microphone for live stage, theater, and rehearsal application. The transmitter features a removable antenna, fully concealed buttons and switch. It is built with a durable, moisture-resistant, lightweight metal case and can run up to 10 hours on a SB910 rechargeable batteries. Equipped with external contacts for docked charging, the transmitter has two transmission modes: Standard for optimal coverage, and High Density for maximum system channel count and robust coverage. In addition, the Diversity ShowLink enabled transmitter allows for real-time parameter adjustments right from the booth. - 20 Hz to 20 kHz range with flat-frequency response.
- Automatic input staging optimizes gain setting.
- Diversity ShowLink-enabled for remote transmitter control and automatic interference avoidance.
- AES 256-bit encryption-enabled for secure transmission.
- 300' line-of-sight operating range.
- Selectable modulation modes optimize performance for spectral efficiency or audio quality: Standard for optimal coverage and low latency, high density for a dramatic increase in max system channel count.
- Built-in tone generator and RF markers to facilitate range-testing.
- Switchable Power Levels (region dependent): 2/10/40 mW for single carrier mode.
- Frequency Diversity selection using two bodypacks.
- TA4M audio input connector.
- Backlit LCD with easy to navigate menu and controls.
- Durable, moisture-resistant, lightweight metal case.
|
Upload User Manual
Have you got an user manual for the Shure ADX1-G57 ShowLink-Enabled Bodypack Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure ADX Specs | Mic Offset Range | -12 to 21 dB (in 3 dB steps) | | Battery Type | Shure SB910 rechargeable Li-ion battery | | Battery Runtime | At 10 mW
Up to 10 hours | | Housing | Aluminum | | Audio Input | 4-pin male mini TQG (TA4M) connector
Configuration: Unbalanced
Impedance: 1 MOhm
Maximum Input Level: Pad Off: 8.5 dBV (7.5 V pp), Pad On: 20.5 dBV (30 V pp)
Preamplifier Equivalent Input Noise (EIN): -120 dBV, A-Weight, typical | | RF Output | Connector: SMA
Antenna Type: UHF 1/4 Wave
Impedance: 50 Ohms
Occupied Bandwidth: < 200 kHz
Modulation Type: Shure Axient Digital proprietary
Power: 2, 10, and 40 mW
| | ShowLink | Network Type: IEEE 802.15.4
Antenna Type: ZigBee Dual Conformal
Frequency Range: 2.40 to 2.4835 GHz (24 channels)
RF Output Power: 10 dBm (ERP) | | Dimensions (L x Diam) | 3.6 x 2.7 x 0.8" / 9.1 x 6.9 x 1.9 cm | | Weight | 5.0 oz / 141.7 g | | | | Package Weight | 1.485 lb | | Box Dimensions (LxWxH) | 13.7 x 6.7 x 3.8" |
